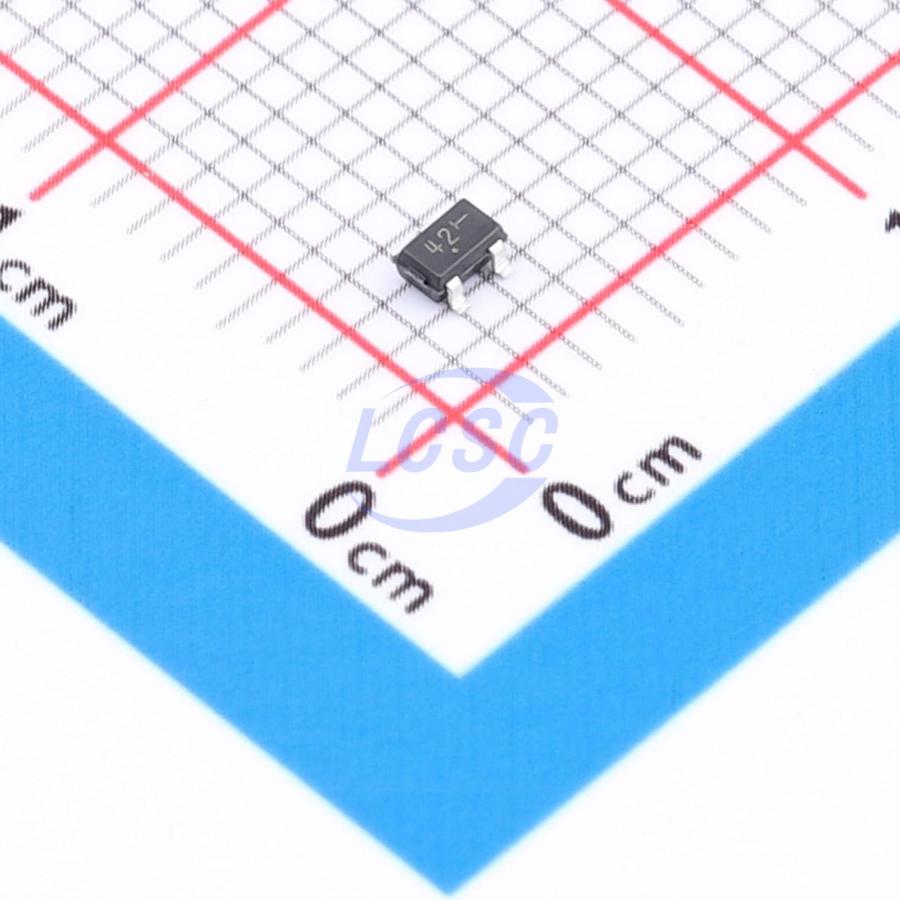

SZNUP3125WTT3G
2A Ipp ESD DIODE SC-70-3
- Manufacturer
- onsemi
- Manufacturer part #
- SZNUP3125WTT3G
- Store part #
- C5206068
- Package / case
- SC-70-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C5206068
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.89 | ₹104.45 |
| 50+ | ₹20.37 | ₹1,018.50 |
| 150+ | ₹20.03 | ₹3,004.50 |
| 500+ | ₹19.69 | ₹9,845.00 |
5 × ₹20.89
₹104.45
excl. GST
₹123.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SZNUP3125WTT3G
₹104.45 for 5 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2A
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 35.6V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
The SZ/NUP3125 has been designed to protect the CAN transceiver in 24 V designs from ESD and other harmful surge protection events. This device provides bidirectional protection for each data line with a single compact SC−70 (SOT−323) package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
Applications
- Automotive Networks
- CAN / CAN−FD
- Low and High−Speed CAN
- Fault Tolerant CAN
- Trucks
- Industrial Control Networks
- Smart Distribution Systems (SDS)
- DeviceNet
Key features
- 120 W Peak Power Dissipation per Line (8/20 μs Waveform)
- Diode Capacitance Matching
- Low Reverse Leakage Current (<100 nA)
- IEC Compatibility:
- IEC 61000−4−2 (ESD): Level 4
- IEC 61000−4−4 (EFT): 50 A – 5/50 ns
- IEC 61000−4−5 (Lighting) 2.0 A (8/20 μs)
- Flammability Rating UL 94 V−0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
