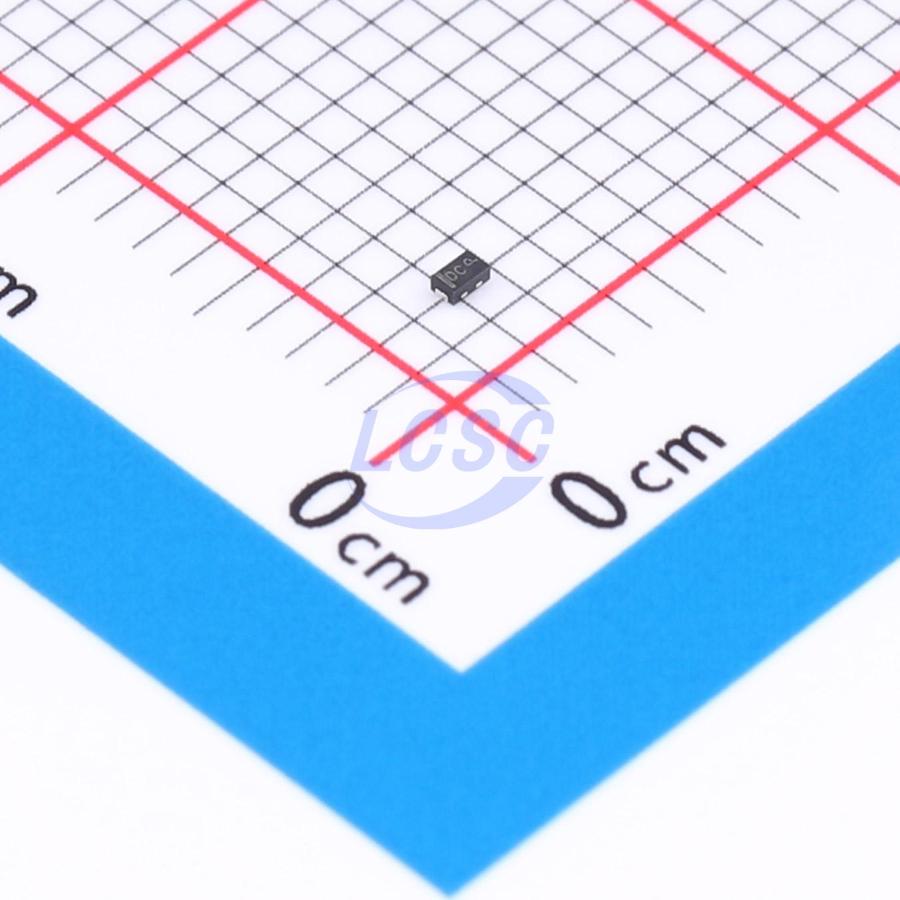

SZNZ8D16V4MX2WT5G
18VC Clamp ESD DIODE X2DFNW-2(0.6x1)
- Manufacturer
- onsemi
- Manufacturer part #
- SZNZ8D16V4MX2WT5G
- Store part #
- C5206679
- Package / case
- X2DFNW-2(0.6x1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C5206679
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.04 | ₹145.20 |
| 50+ | ₹22.97 | ₹1,148.50 |
| 150+ | ₹20.36 | ₹3,054.00 |
| 500+ | ₹17.11 | ₹8,555.00 |
| 2,500+ | ₹15.66 | ₹39,150.00 |
| 5,000+ | ₹14.79 | ₹73,950.00 |
5 × ₹29.04
₹145.20
excl. GST
₹171.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SZNZ8D16V4MX2WT5G
₹145.20 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 15.9V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The NZ8D16V4 is designed for applications requiring transient overvoltage ESD protection. They are intended for use to protect voltage sensitive components from ESD and other harmful transient voltage events. This device provides a single channel of bidirectional protection in an, ultra−compact X2DFNW2 1.0 x 0.6 mm package. This device is ideal to replace SOT23 or other dual diode 3 pin devices used as single line bi−directional protection.
Applications
- Automotive ECU’s
- IVN – In Vehicle Networking Voltage Sensitive Circuits
Key features
- Very Low Leakage 1 nA
- Precise Clamping Voltage
- High ESD Ratings
- Wettable Flank Package for optimal Automated Optical Inspection (AOI)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
