SZSMF22AT1G

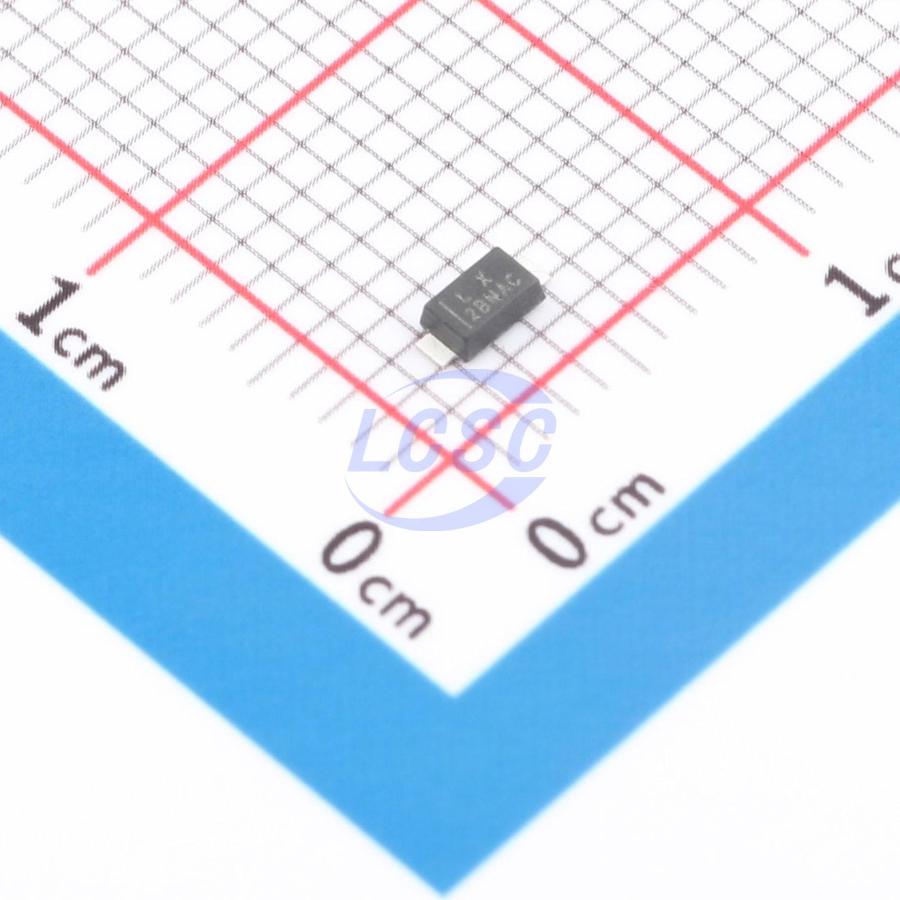

35.5VC Clamp 5.6A Ipp TVS DIODE SOD-123FL
TVS DIODE 22VWM 35.5VC SOD-123FL
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZSMF22AT1G
- Store part #
- C3710987
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C3710987
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹168.09 | ₹168.09 |
| 10+ | ₹166.16 | ₹1,661.60 |
| 30+ | ₹164.86 | ₹4,945.80 |
| 100+ | ₹163.58 | ₹16,358.00 |
1 × ₹168.09
₹168.09
excl. GST
₹198.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZSMF22AT1G
₹168.09 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.6A
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Number of Channels
- 1
- Voltage - Breakdown
- 24.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.117 g
Overview
The SZSMF series is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and other industrial and consumer applications.
Applications
- cellular phones
- portable devices
- business machines
- power supplies
- other industrial and consumer applications
Key features
- Zener Transient Overvoltage Suppressors
- Stand−off Voltage: 5 − 58 Volts
- Peak Power: 200 Watts @ 1 ms
- Low Leakage
- Response Time is Typically < ns
- ESD Rating of Class 3 (>16kV) per Human Body Model
- ESD Rating of Level 4 (8 kV Contact Discharge) per IEC 61000-4-2
- EFT (Electrical Fast Transients) Rating of 40 A per IEC 61000-4-4
- Low Profile: Maximum Height of 1.0 mm
- Small Footprint: Footprint Area of 8.45 mm2
- Supplied in 8 mm Tape and Reel − 3,000 Units per Reel
- Cathode Indicated by Polarity Band
- Lead Orientation in Tape: Cathode Lead to Sprocket Holes
- These components are Pb−Free and are RoHS Compliant
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
