VISHAYDatasheet (PDF)

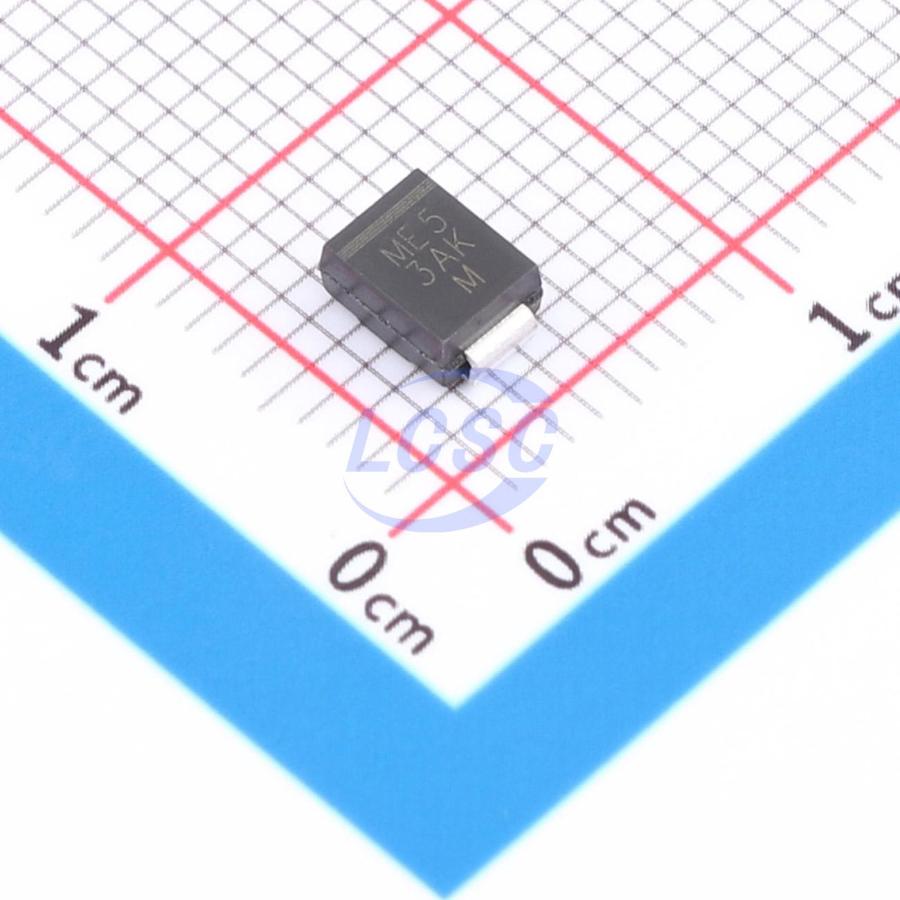

T15B30AHM3/I
41.4V 37.4A@10/1000us 1.5kW@10/1000us 30V Unidirectional 25.6V DO-214AA(SMB) TVS Diodes RoHS
DO-214AA(SMB)ROHS CompliantActive
TVS DIODE 25.6VWM 41.4VC DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- T15B30AHM3/I
- Store part #
- C20038294
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C20038294
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.65 | ₹92.65 |
| 10+ | ₹91.35 | ₹913.50 |
| 30+ | ₹90.49 | ₹2,714.70 |
| 100+ | ₹89.42 | ₹8,942.00 |
1 × ₹92.65
₹92.65
excl. GST
₹109.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
T15B30AHM3/I
₹92.65 for 1 + GST
Specifications
- Clamping Voltage
- 41.4V
- Peak Pulse Current (Ipp)
- 37.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 30V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 25.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.199 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for automotive.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- TJ = 185 °C capability suitable for high reliability and automotive requirement
- 1500 W peak pulse power capability with a HALOGEN 10/1000 μs waveform FREE Available
- Unidirectional
- Excellent clamping capability
- Very fast response time
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMBJ24A#C54741059BORN · SMB | BORN | SMB | 2,905 | ₹16.30 · 2,905 in stock | View |
 | 1.5SMBJ24A#C3710731BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 70 | ₹133.91 · 70 in stock | View |
 | 1.5SMBJ28A#C3012553PAKER · SMB | PAKER | SMB | 2,995 | ₹11.80 · 2,995 in stock | View |
 | 1.5SMBJ28A#C5125675BORN · DO-214AA(SMB) | BORN | DO-214AA(SMB) | 2,045 | ₹16.17 · 2,045 in stock | View |
| T15B27AHM3/I#C20038293VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 30 | ₹120.80 · 30 in stock | View | |
