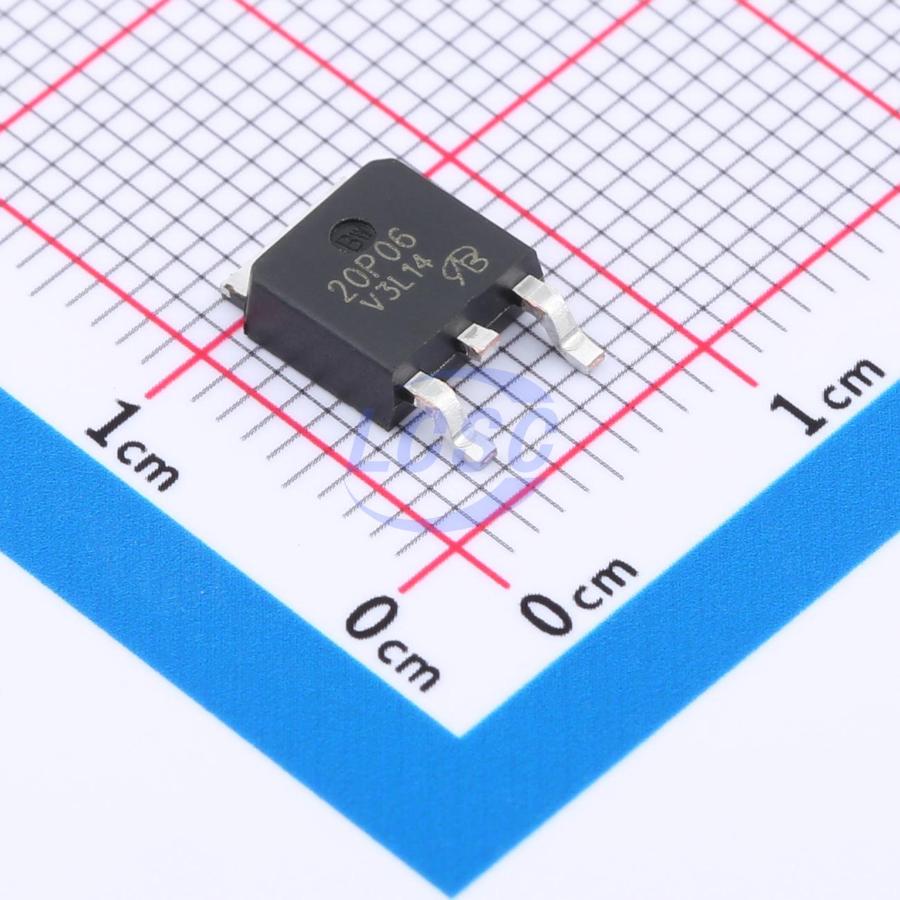

T20P06L-VB
P-Channel 60V 30A Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- T20P06L-VB
- Store part #
- C20417460
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C20417460
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.56 | ₹78.56 |
| 10+ | ₹63.86 | ₹638.60 |
| 30+ | ₹56.51 | ₹1,695.30 |
| 100+ | ₹49.37 | ₹4,937.00 |
| 500+ | ₹44.96 | ₹22,480.00 |
| 1,000+ | ₹42.65 | ₹42,650.00 |
1 × ₹78.56
₹78.56
excl. GST
₹92.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
T20P06L-VB
₹78.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 72mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@0V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Load Switch
- P-Channel MOSFET
Key features
- TrenchFET Power MOSFET 100% UIS Tested
