TOSHIBA

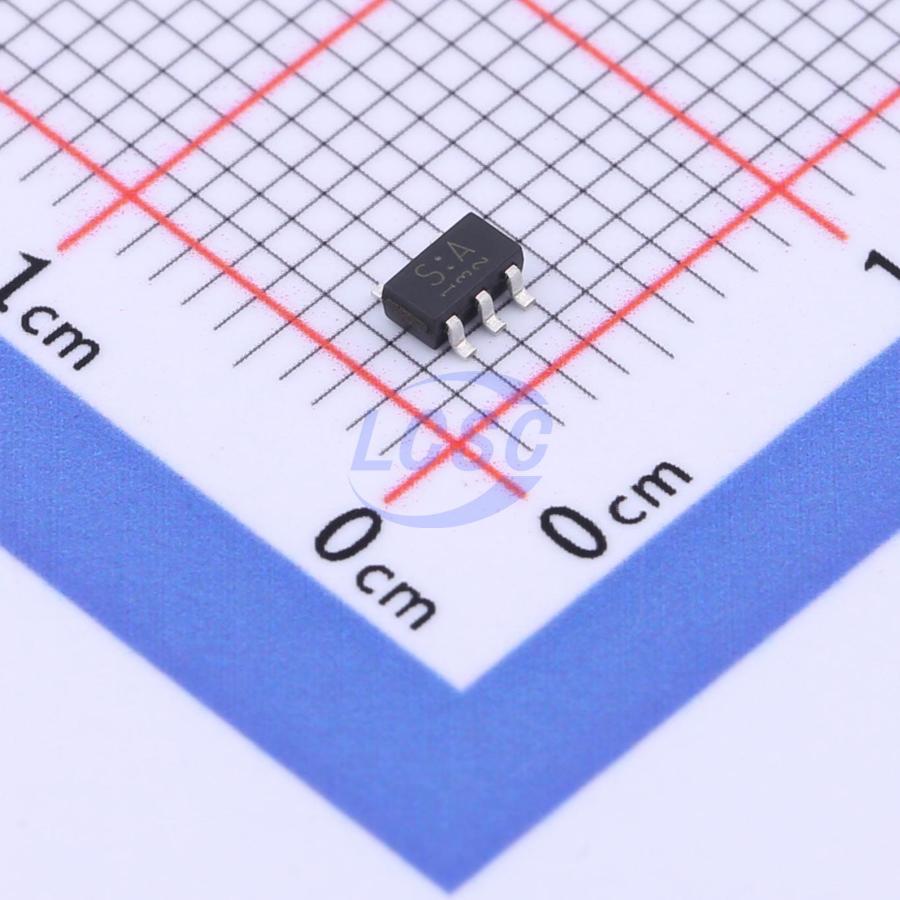

TA75S01F,LF

Standard (General Purpose) Amplifier 1 Circuit SC-74A(SOT-753)

SC-74A(SOT-753)ROHS3 CompliantActive

Single Operational Amplifier

Manufacturer: TOSHIBA
Manufacturer part #: TA75S01F,LF
Store part #: C2057916
Package / case: SC-74A(SOT-753)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,240 in stock

#C2057916

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹29.75	₹148.75
50+	₹23.77	₹1,188.50
150+	₹21.22	₹3,183.00
500+	₹18.03	₹9,015.00
3,000+	₹16.60	₹49,800.00
6,000+	₹15.76	₹94,560.00

Quantity (min 5, multiples of 5)

5 × ₹29.75

₹148.75

excl. GST

₹175.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TA75S01F,LF

₹148.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 58dB
Ib - Input Bias Current: 45nA
Quiescent Current: 400uA
Gain Bandwidth Product: 300kHz
Features: Built-in compensation
Dual Supply: -1.5V~6V
Single Supply: 3V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

Key features

In the linear mode the input common mode voltage range includes ground.
The internally compensated Operational Amplifier is small package.
Low power dissipation and power drain suitable for battery operation.
Differential input voltage range equal to the power supply voltage.
Large output voltage swing: 0VDC to 3.4VDC (ΔVDC = 5V)
Wide power supply voltage range and single power supply is possible.
Single supply 3VDC to 12VDC or dual supplies ±1.5VDC to ±6VDC.
