MICROCHIPDatasheet (PDF)

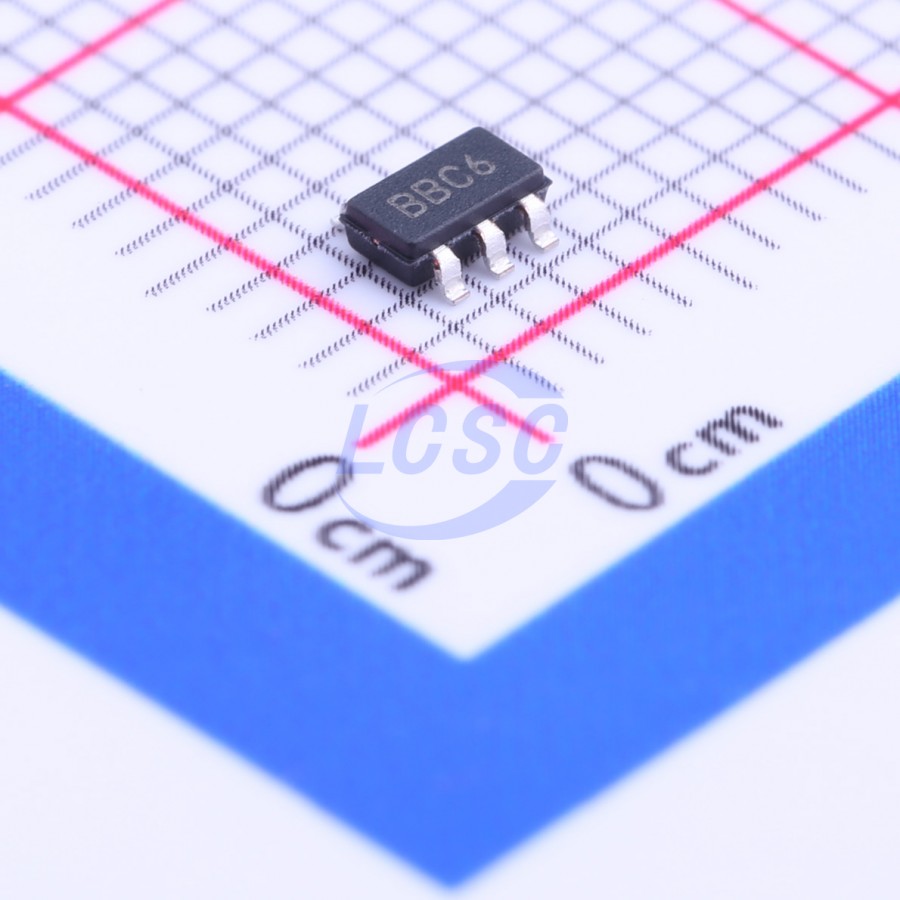

TC1071VCT713
Linear Voltage Regulator IC Positive Adjustable 1 Output 100mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
50mA, 100mA and 150mA Adjustable CMOS LDOs with Shutdown
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC1071VCT713
- Store part #
- C145686
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C145686
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.14 | ₹135.14 |
| 10+ | ₹111.62 | ₹1,116.20 |
| 30+ | ₹98.88 | ₹2,966.40 |
| 100+ | ₹84.42 | ₹8,442.00 |
| 500+ | ₹76.22 | ₹38,110.00 |
| 1,000+ | ₹73.41 | ₹73,410.00 |
1 × ₹135.14
₹135.14
excl. GST
₹159.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC1071VCT713
₹135.14 for 1 + GST
Specifications
- Output Voltage
- 1.165V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 100mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The TC1070, TC1071 and TC1187 are adjustable LDOs designed to supersede a variety of older (bipolar) voltage regulators. Total supply current is typically 50μA at full load (20 to 60 times lower than in bipolar regulators). The devices' key features include ultra low noise operation, very low dropout voltage - typically 85mV (TC1070); 180mV (TC1071);and 270mV (TC1187) at full load, and fast response to step changes in load. Supply current is reduced to 0.5μA max when the shutdown input is low. The devices incorporate both over-temperature and over-current protection. Output voltage is programmed with a simple resistor divider from VOUT to ADJ to GND. The TC1070, TC1071 and TC1187 are stable with an output capacitor of only 1μF and have a maximum output current of 50mA, 100mA and 150mA, respectively.
Applications
- Battery Operated Systems
- Portable Computers
- Medical Instruments
- Instrumentation
- Cellular/GSM/PHS Phones
- Linear Post-Regulators for SMPS
- Pagers
Key features
- Zero Ground Current for Longer Battery Life
- Adjustable Output Voltage
- Very Low Dropout Voltage
- Choice of 50mA (TC1070), 100mA (TC1071) and 150mA (TC1187) Output
- Power-Saving Shutdown Mode
- Over Current and Over Temperature Protection
- Space-Saving 5-Pin SOT-23A Package
- Pin Compatible with Bipolar Regulators
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC1187VCT713#C556922MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 5 | ₹148.15 · 5 in stock | View |
