TOSHIBA

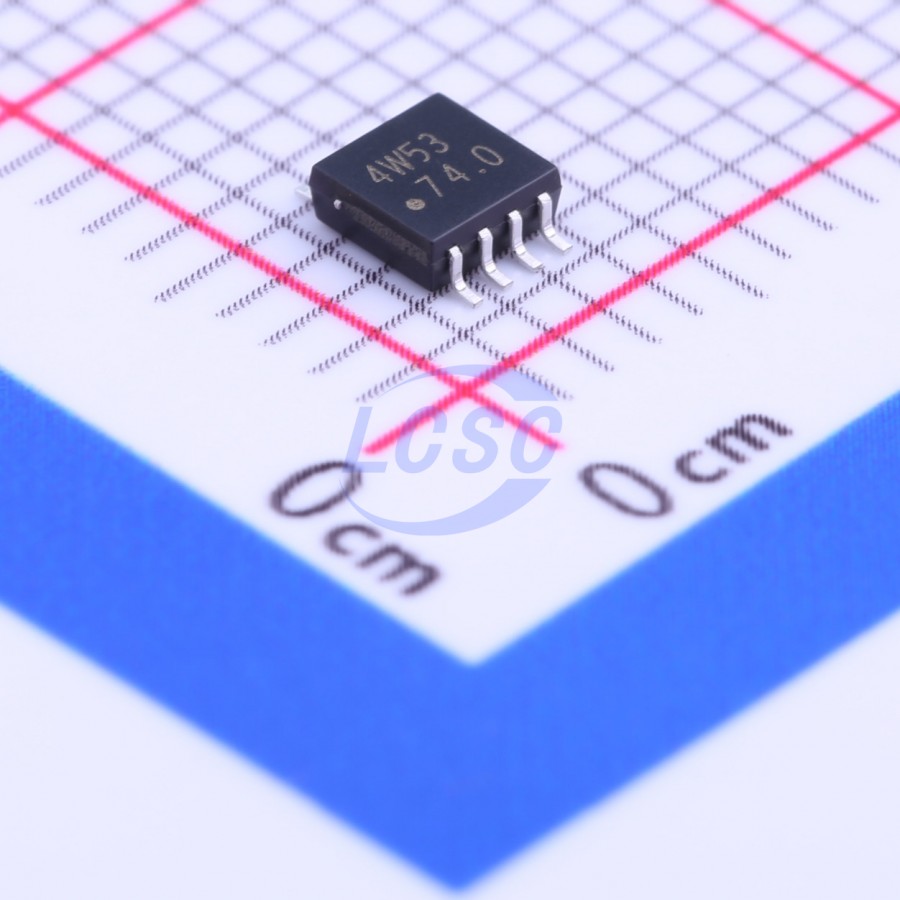

TC4W53FU,LF

3V~18V 40MHz 2 240Ω 2:1 SSOP-8 Analog Switches - Special Purpose RoHS

SSOP-8ROHS3 CompliantActive

TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4W53FU 2-Channel Multiplexer, Demultiplexer

Manufacturer: TOSHIBA
Manufacturer part #: TC4W53FU,LF
Store part #: C146270
Package / case: SSOP-8
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,935 in stock

#C146270

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹55.34	₹276.70
50+	₹43.12	₹2,156.00
150+	₹37.88	₹5,682.00
500+	₹31.34	₹15,670.00
3,000+	₹28.43	₹85,290.00
6,000+	₹26.68	₹1,60,080.00

Quantity (min 5, multiples of 5)

5 × ₹55.34

₹276.70

excl. GST

₹326.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC4W53FU,LF

₹276.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~18V
-3dB Bandwidth: 40MHz
Number of Channels: 2
Ron: 240Ω
Propagation Delay (tpd): 170ns
Switch Circuit: 2:1
Operating Temperature: -40℃~+85℃
Features: Bidirectional analog channel;Level shifting

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The TC4W53FU is multiplexer with capabilities of selection and mixture of analog signal and digital signal. TC4W53FU has 2 channel configuration. The digital signal to the control terminal turns “ON” the corresponding switch of each channel a large amplitude (VDD-VEE) can be switched by the control signal with small logical amplitude (VDD-VSS). For example, in the case of VDD = 5 V, VSS = 0V and VEE = -5V, signals between -5 V and +5 V can be switched from the logical circuit with a signal power supply of 5 V. As the ON-resistance of each switch is low, these can be connected to circuit with low input impedance.
