FMDatasheet (PDF)

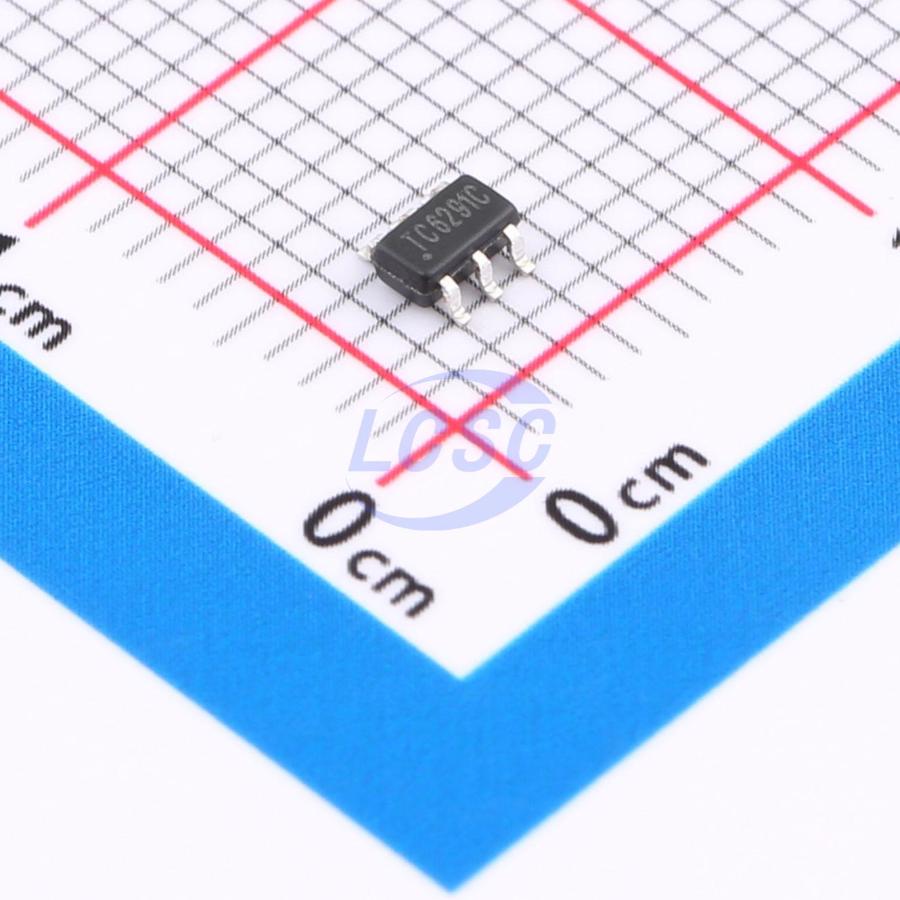

TC6291C
Boost Switching Regulator IC Adjustable 1 Output 2A SOT-23-6
SOT-23-6ROHS CompliantActive
High Efficiency Current Mode DC-DC Boost Converter IC
- Manufacturer
- FM
- Manufacturer part #
- TC6291C
- Store part #
- C108641
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,185 in stock
#C108641
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.54 | ₹92.70 |
| 50+ | ₹14.45 | ₹722.50 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹10.88 | ₹5,440.00 |
| 3,000+ | ₹9.64 | ₹28,920.00 |
| 6,000+ | ₹9.04 | ₹54,240.00 |
5 × ₹18.54
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC6291C
₹92.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 2A
- Quiescent Current
- 170uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
TC6291C is a current-mode boost DC-DC converter. Its PWM circuit with a built-in 0.2Ω power MOSFET delivers high power efficiency. The internal compensation network also reduces external component count by up to 6. The non-inverting input of the error amplifier is connected to a 0.6V precision reference voltage, and the internal soft-start function minimizes inrush current. TC6291C is available in a SOT23-6 package, saving PCB space in applications.
Applications
- Chargers
- Handheld devices
- LED displays
- Portable products
- Digital cameras
Key features
- Adjustable output up to 12V
- Internal fixed PWM frequency: 1.0MHz
- Accurate feedback reference voltage: 0.6V (±2%)
- Integrated 0.2Ω, 2A, 16V power MOSFET
- Shutdown current: 0.1μA
- Over-temperature protection
- Adjustable overcurrent protection: 0.5A~2.5A
- Package: SOT23-6
