MICROCHIPDatasheet (PDF)

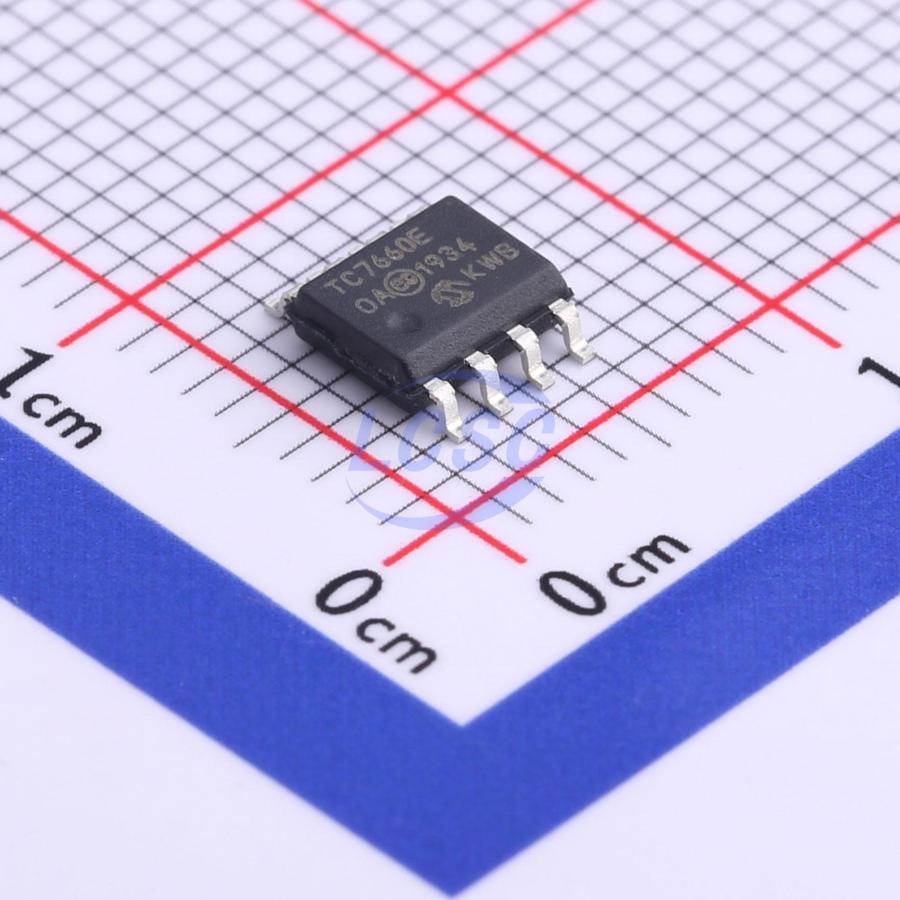

TC7660EOA713
10kHz Fixed -10V~-1.5V 20mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
Charge Pump DC-to-DC Voltage Converter
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC7660EOA713
- Store part #
- C7028
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,047 in stock
#C7028
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.78 | ₹138.78 |
| 10+ | ₹110.51 | ₹1,105.10 |
| 30+ | ₹96.37 | ₹2,891.10 |
| 100+ | ₹82.22 | ₹8,222.00 |
| 500+ | ₹73.97 | ₹36,985.00 |
| 1,000+ | ₹69.62 | ₹69,620.00 |
1 × ₹138.78
₹138.78
excl. GST
₹163.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
TC7660EOA713
₹138.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 10kHz
- Number of Outputs
- 1
- Features
- Frequency synchronization;Light load efficient mode
- Output Type
- Fixed
- Topology
- Inverting
- Operating Voltage
- 1.5V~10V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- -10V~-1.5V
- Output Current
- 20mA
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
It converts a +1.5V to +10V input to a corresponding -1.5V to -10V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and electromagnetic interference(EMI). The on-board oscillator operates at a nominal frequency of 10 kHz. Operation below 10 kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground.
Applications
- RS-232 Negative Power Supply
- Simple Conversion of +5V to ±5V Supplies
- Voltage Multiplication VOUT = ±nV+
- Negative Supplies for Data Acquisition Systems and Instrumentation
Key features
- Wide Input Voltage Range: +1.5V to +10V
- Efficient Voltage Conversion (99.9%, typ)
- Excellent Power Efficiency (98%, typ)
- Low Power Consumption: 80 μA (typ) @ VIN = 5V
- Low Cost and Easy to Use - Only Two External Capacitors Required
- Available in 8-Pin Small Outline (SOIC), 8-Pin PDIP and 8-Pin CERDIP Packages
- Improved ESD Protection (3 kV HBM)
- No External Diode Required for High-Voltage Operation
