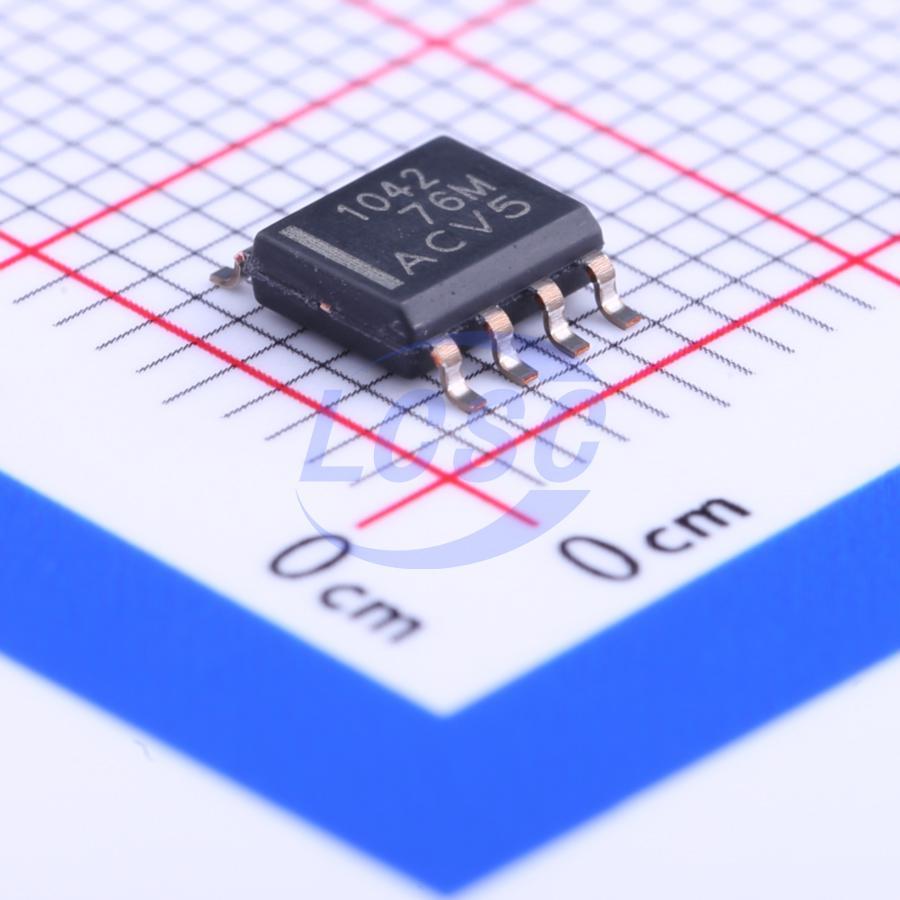

TCAN1042HDR

This CAN transceiver family complies with the ISO1189-2 (2016) high-speed CAN physical layer standard. All devices are designed for CAN FD networks with data rates up to 2Mbps. Devices with a "G" suffix in the part number are intended for data rates up to 5Mbps, and devices with a "V" suffix feature an auxiliary power supply input that provides I/O levels for setting input pin thresholds and RXD output levels. The family offers a low-power standby mode with remote wake-up request capability. In addition, all devices provide multiple protection features to enhance device and network robustness.

Applications

• All devices support high-load CAN networks
• Heavy machinery ISOBUS applications - ISO11783
• Industrial automation, control, sensors and drive systems
• Building, security and temperature control automation
• Telecom base station status and control
• CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783

Key features

• Compliant with ISO11898-2:2016 and ISO11898-5:2007 physical layer standards
• "Turbo" CAN: all devices support Classical CAN and 2Mbps CANFD (Flexible Data Rate), while the "G" option supports 5Mbps
• Short symmetrical propagation delay times and fast loop times for increased timing margin
• Higher data rates on loaded CAN networks
• I/O voltage range supports 3.3V and 5V MCUs
• Ideal passive behavior when unpowered
• Bus and logic pins in high-impedance state (no load)
• Glitch-free power-up/power-down operation on bus and RXD output
• HBM ESD protection: ±16kV
• IEC ESD protection up to ±15kV
• Bus fault protection: ±58V (non-H versions) and ±70V (H versions)
• Undervoltage lockout on VCC and VIO (V versions only) supply terminals
• Driver dominant timeout (TXD DTO)
• Data rates down to 10kbps
• Thermal shutdown protection (TSD)
• Receiver common-mode input voltage: ±30V
• Typical loop delay: 110ns
• Junction temperature range: -55℃ to 150℃
• Available in SOIC(8) and leadless VSON(8) packages (3.0mm×3.0mm) for enhanced AOI capability
