TCR13AGADJ,LF(S

The TCR13AGADJ is CMOS single output voltage regulator with an on/off control input, featuring ultra low dropout voltage, low inrush current and fast load transient response. This voltage regulator is available in output voltage adjustable type from 0.55 V to 3.6 V and capable of driving up to 1.3 A. Other features include overcurrent protection, thermal shutdown, inrush current reduction, under voltage lockout and auto-discharge. The TCR13AGADJ is offered in the ultra small package WCSP6F (0.8 mm × 1.2 mm (typ.), t: 0.33 mm (max)). As small ceramic input and output capacitors can be used with the TCR13AGADJ, this device is ideal for portable applications that require high-density board assembly such as cellular phones.

Applications

• Portable applications that require high - density board assembly such as cellular phones

Key features

• Low dropout voltage VDO = 92 mV (typ.) at 0.9 V output, VBias = 3.3 V, IOUT = 1.0 A; VDO = 9.2 mV (typ.) at 0.9 V output, VBias = 3.3 V, IOUT = 0.1 A
• Wide range output voltage (Adjustable from 0.55 V to 3.6 V)
• Fast load transient response: ±100/+115 mV (typ.) at 0.01 A⇔1 A, COUT ≥4.7 μF
• Overcurrent protection
• Thermal shutdown
• Inrush current reduction
• Under voltage lockout
• Soft start function
• Auto-discharge
• Pull down connection between CONTROL and GND

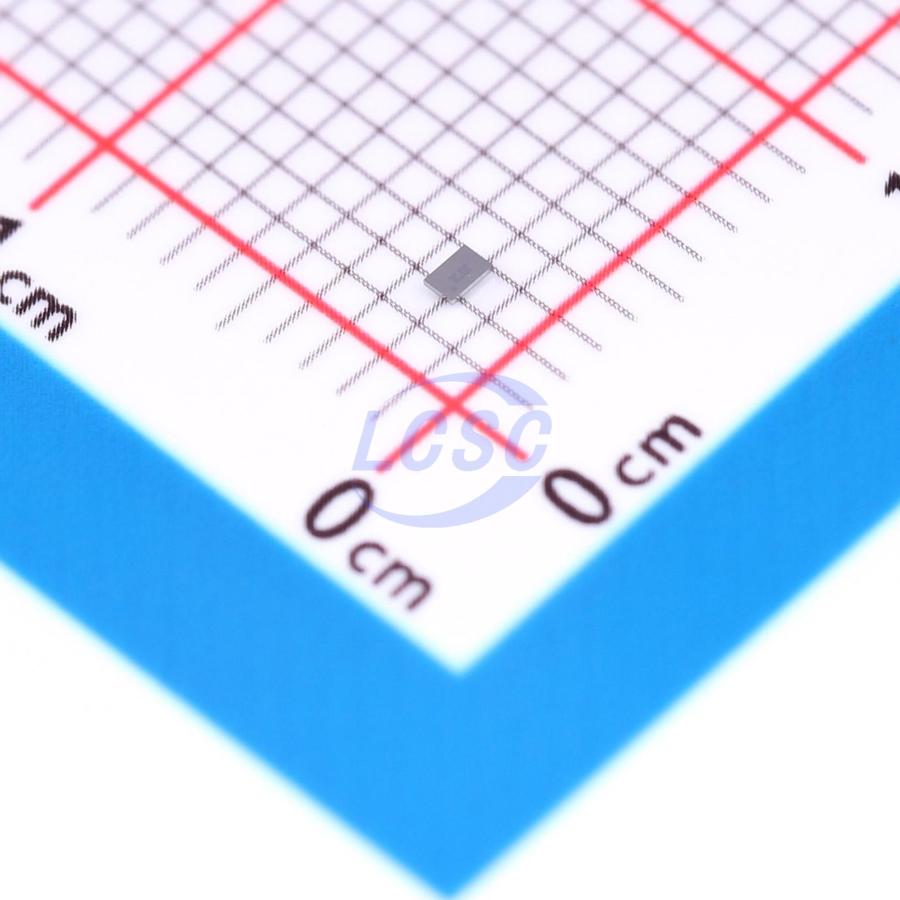

• Ultra small package WCSP6F (0.8 mm × 1.2 mm (typ.), t: 0.33 mm (max))
• Stable with over 4.7 μF Input capacitor, 1.0 μF Bias capacitor and 4.7 μF output ceramic capacitor
