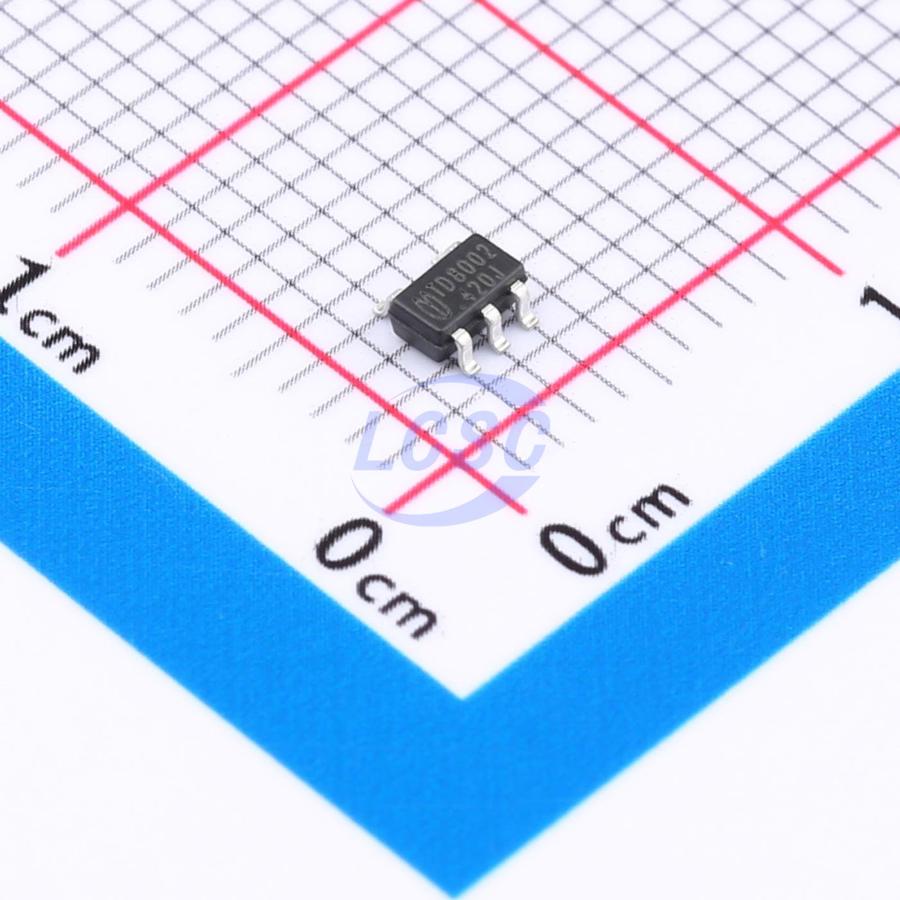

TLV62569DBVR1.5MHz Step-down type Adjustable 600mV~5.5V 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
From
₹10.09
4,64,945 in stock
JingYangDatasheet (PDF)
TD8002ES5X
Step-down type 1MHz Adjustable 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
High Efficiency 1MHz 2A Synchronous Step Down Regulator
- Manufacturer
- JingYang
- Manufacturer part #
- TD8002ES5X
- Store part #
- C3038115
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,045 in stock
#C3038115
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.95 | ₹119.75 |
| 50+ | ₹18.92 | ₹946.00 |
| 150+ | ₹16.76 | ₹2,514.00 |
| 500+ | ₹14.08 | ₹7,040.00 |
| 3,000+ | ₹12.87 | ₹38,610.00 |
| 6,000+ | ₹12.16 | ₹72,960.00 |
5 × ₹23.95
₹119.75
excl. GST
₹141.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TD8002ES5X
₹119.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 1MHz
- Features
- Cycle-by-cycle current limiting;Protection latch;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TD8002 is a high efficiency, internal compensation and constant frequency current mode step-down synchronous DC/DC converter. It has integrated high-side (180mΩ, typ) and low-side (100mΩ, typ) power switches, and provides 2A continuous load current. It regulates input voltage from 2.5V to 5.5V and down to an output voltage as low as 0.6V.
Applications
- Set Top Box
- LCD TV
- Tablet
- Portable Equipment
Key features
- The TD8002 is a high efficiency, high frequency synchronous DC-DC step-down converter.
- The 100% duty cycle feature provides low dropout operation, extending battery life in portable systems.
- The internal synchronous switch increases efficiency and eliminates the need for external Schottky diode.
- At shutdown mode, the input supply current is less than 1μA.
- The current limit protection and on-chip thermal shutdown features provide protection against any combination of overload or ambient temperature.
- Low RDS(ON) for Internal Switch (Top/Bottom): 180/100mΩ
- 2.5V~5.5V Input Voltage Range
- 2A Output Current
- 1MHz Switching Frequency Minimizes the External Components
- Internal Soft-Start Limits the Inrush Current
- Internal Compensation Function
- 100% Dropout Operation
- Power Good Indicator Output (SOT-23-6 only)
- RoHS Compliant and Halogen Free
- SOT-23-5 and SOT-23-6 Packages
