VBsemi ElecDatasheet (PDF)

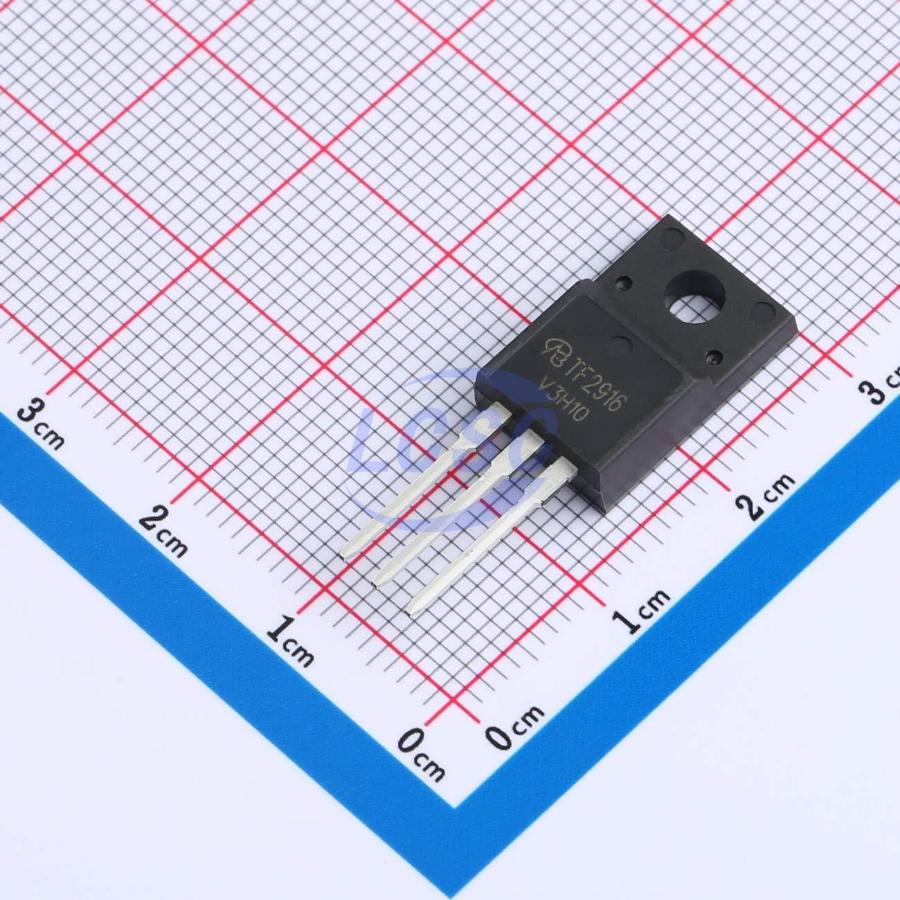

TF2916L-VB
N-Channel 100V 50A 360W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 50A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TF2916L-VB
- Store part #
- C19188150
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C19188150
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.16 | ₹101.16 |
| 10+ | ₹82.25 | ₹822.50 |
| 50+ | ₹72.69 | ₹3,634.50 |
| 100+ | ₹63.33 | ₹6,333.00 |
| 500+ | ₹57.82 | ₹28,910.00 |
| 1,000+ | ₹54.84 | ₹54,840.00 |
1 × ₹101.16
₹101.16
excl. GST
₹119.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TF2916L-VB
₹101.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 480pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5.1nF
- Pd - Power Dissipation
- 360W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 34mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.625 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
