TIDatasheet (PDF)

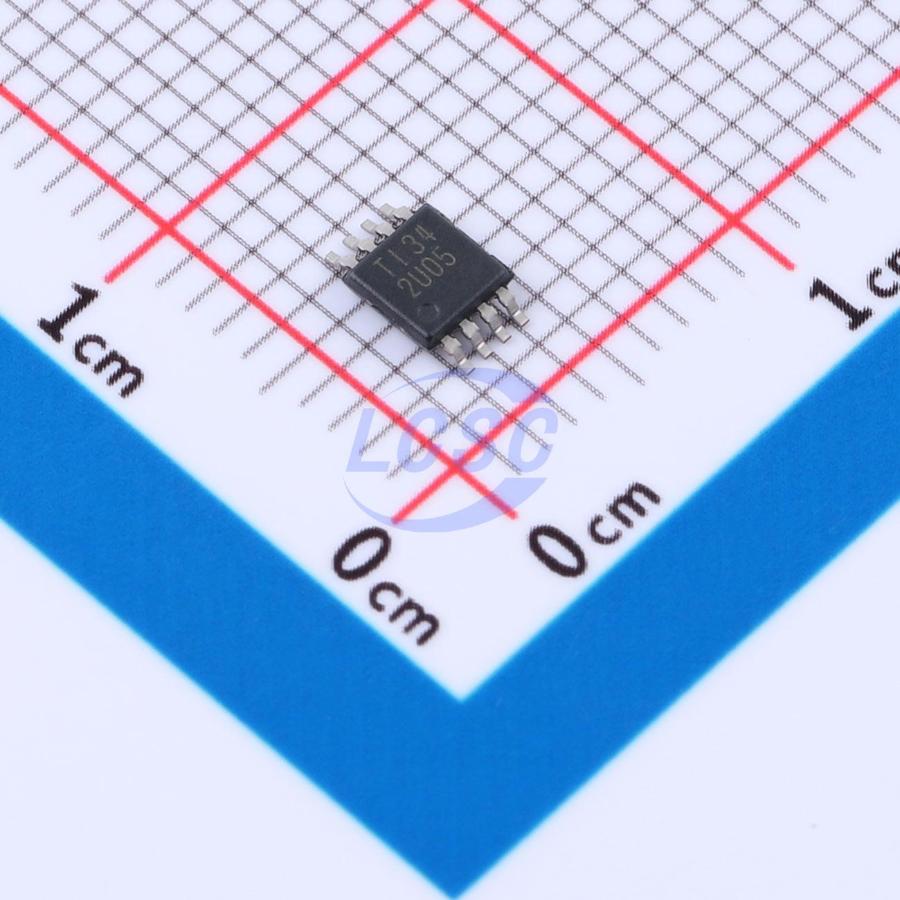

THS2630SDGKR
85mA 100uV 75V/us 95dB 9.8uA 8.9mA 245MHz VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- THS2630SDGKR
- Store part #
- C35767552
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C35767552
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,850.52 | ₹1,850.52 |
| 10+ | ₹1,672.07 | ₹16,720.70 |
| 30+ | ₹1,607.25 | ₹48,217.50 |
| 100+ | ₹1,478.90 | ₹1,47,890.00 |
1 × ₹1,850.52
₹1,850.52
excl. GST
₹2,183.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS2630SDGKR
₹1,850.52 for 1 + GST
Specifications
- Output Current
- 85mA
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 75V/us
- Input Offset Current(Ios)
- 22nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 9.8uA
- Input Offset Voltage Drift(Vos TC)
- 3.2uV/℃
- Quiescent Current
- 8.9mA
- Gain Bandwidth Product
- 245MHz
- Input Voltage Noise Density
- 1.1nV/√Hz@10kHz
- Dual Supply
- -17.5V~-2.5V;2.5V~17.5V
- Single Supply
- 5V~35V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.74 g
Overview
THS2630 belongs to a family of fully differential input and differential output devices manufactured using TI's advanced high-voltage complementary bipolar process. The THS2630 employs a true fully differential signal path from input to output, supporting high supply voltages up to ±17.5V. This design delivers excellent common-mode noise rejection (95dB at 800kHz) and total harmonic distortion (−108dBc at 2Vₚ₋ₚ, 250kHz). The high-voltage differential signal chain improves headroom and dynamic range across a wide supply voltage range without requiring separate amplifiers for each polarity of the differential signal. The THS2630 operates over a wide temperature range of –40°C to +85°C.
Applications
- Single-ended to differential conversion
- Differential ADC driver
- Differential anti-aliasing
- Differential transmitters and receivers
- Output level translator
- Medical ultrasound
- Time gain control DAC reference design for ultrasound
Key features
- High performance
- Bandwidth: 187MHz (VCC = ±15V, G = 1V/V)
- Slew rate: 75V/µs
- Gain bandwidth product: 245MHz
- Distortion: -108dBc THD (at 2Vₚ₋ₚ, 250kHz)
- Voltage noise
- 1/f voltage noise corner frequency: 85Hz
- Input-referred noise: 1.1nV/√Hz
- Single-supply voltage range: 5V to 35V
- Quiescent current (shutdown): 770µA (THS2630S)
