TIDatasheet (PDF)

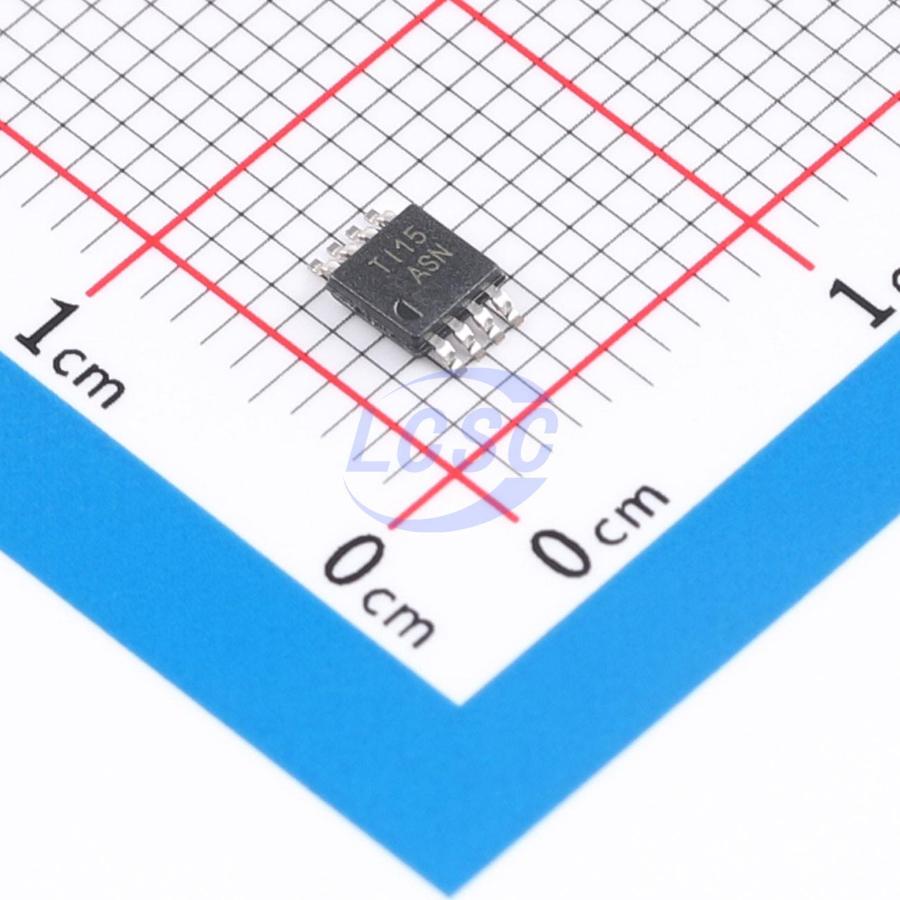

THS4121IDGKR
1 3mV 55V/us 96dB 1.2pA 13.5mA MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
HIGH-SPEED FULLY DIFFERENTIAL I/O AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- THS4121IDGKR
- Store part #
- C2060419
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2060419
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹589.03 | ₹589.03 |
| 10+ | ₹575.32 | ₹5,753.20 |
| 30+ | ₹566.24 | ₹16,987.20 |
| 100+ | ₹557.17 | ₹55,717.00 |
1 × ₹589.03
₹589.03
excl. GST
₹695.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS4121IDGKR
₹589.03 for 1 + GST
Specifications
- Settling time
- 60ns;292ns
- output type
- Differential
- Output Current
- 100mA;25mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 55V/us
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 96dB
- Ib - Input Bias Current
- 1.2pA
- Power Supply Rejection Ratio (PSRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 25uV/℃
- Quiescent Current
- 13.5mA
- Features
- Single-ended to differential conversion;Integrated ADC driver;Built-in compensation;Built-in signal filtering
- Dual Supply
- -1.75V~-1.5V;1.5V~1.75V
- Single Supply
- 3V~3.5V
- Noise density(eN)
- 5.4nV/√Hz@10kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The THS412x is one in a family of fully differential-input, differential-output devices fabricated using state-of-the-art submicron CMOS process. The THS412x consists of a true, fully differential signal path from input to output. This results in excellent common-mode noise rejection and improved total harmonic distortion.
Applications
- Simple Single-Ended To Differential Conversion
- Differential ADC Driver/Differential Antialiasing
- Differential Transmitter and Receiver Output Level Shifter
- Data converters
Key features
- High Performance
- 100 MHz, -3 dB Bandwidth 50 V/μs Slew Rate 75 dB Total Harmonic Distortion at 1 MHz (V₀ = 2Vₚ₋ₚ) 5.4 nV/√Hz Input-Referred Noise (10 kHz)
- Differential Input/Differential Output Balanced Outputs Reject Common-Mode Noise Differential Reduced Second Harmonic Distortion
- Power Supply Range: VDD = 3.3V
