TIDatasheet (PDF)

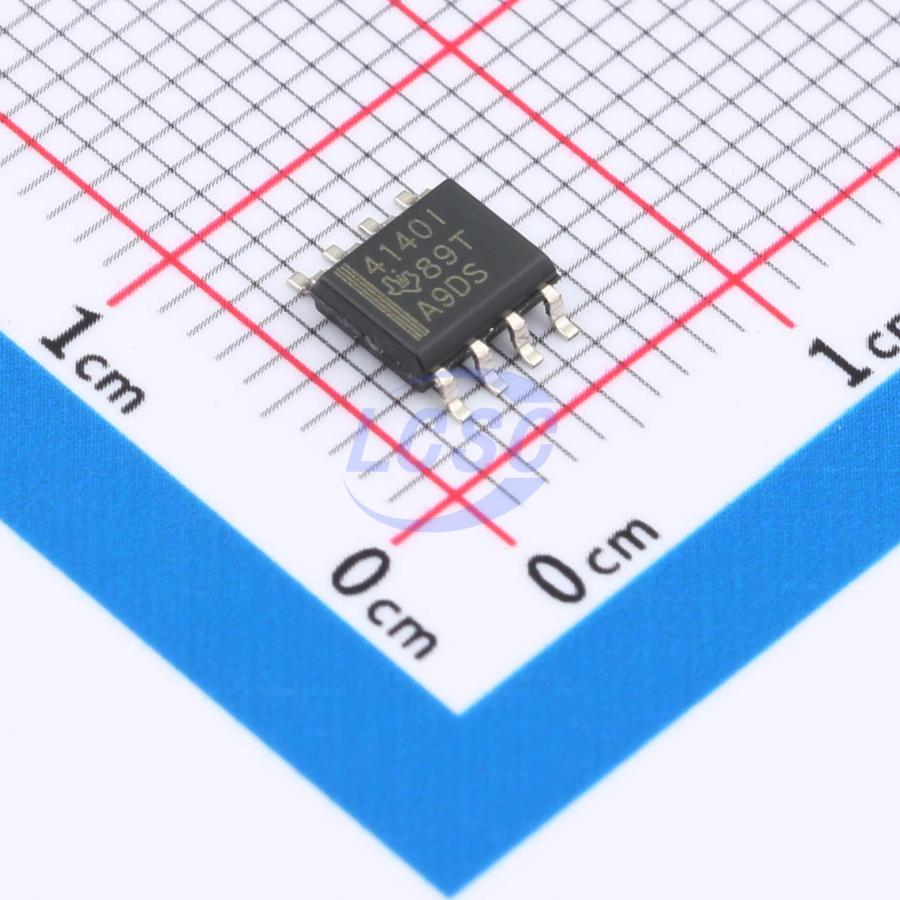

THS4140ID
1 1mV 450V/us 84dB 5.1uA 205MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
High-Speed Fully Differential I/O Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- THS4140ID
- Store part #
- C1347160
- Package / case
- SOIC-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1347160
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,359.72 | ₹2,359.72 |
| 10+ | ₹2,253.25 | ₹22,532.50 |
| 30+ | ₹2,068.83 | ₹62,064.90 |
| 100+ | ₹1,908.16 | ₹1,90,816.00 |
1 × ₹2,359.72
₹2,359.72
excl. GST
₹2,784.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
THS4140ID
₹2,359.72 for 1 + GST
Specifications
- Settling time
- 96ns;304ns
- output type
- Differential
- Output Current
- 45mA;60mA;85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 450V/us
- Input Offset Current(Ios)
- 1uA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Ib - Input Bias Current
- 5.1uA
- Power Supply Rejection Ratio (PSRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 13.2mA;15mA
- Gain Bandwidth Product
- 205MHz
- Features
- Single-ended to differential conversion;Integrated ADC driver;Enable/shutdown function;Built-in compensation;Built-in signal filtering
- Dual Supply
- -15V~-2.5V;2.5V~15V
- Single Supply
- 5V~30V
- Noise density(eN)
- 6.5nV/√Hz@10kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
The THS414x is one in a family of fully differential input/differential output devices fabricated using state-of-the-art BiComI complementary bipolar process. The THS414x is made of a true, fully differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
Applications
- Single-Ended to Differential Conversion
- Differential ADC Driver
- Differential Antialiasing
- Differential Transmitter And Receiver Output Level Shifter
Key features
- High Performance
- 160 MHz –3 dB Bandwidth (VCC=±15 V)
- 450 V/μs Slew Rate
- –79 dB, Third Harmonic Distortion at 1 MHz
- 6.5 nV/√Hz Input-Referred Noise
- Differential Input/Differential Output
- Balanced Outputs Reject Common-Mode Noise
- Reduced Second Harmonic Distortion Due to Differential Output
- Wide Power-Supply Range
- VCC = 5-V Single Supply to ±15-V Dual Supply
- ICC(SD) = 880 μA in Shutdown Mode (THS4140)
