TIDatasheet (PDF)

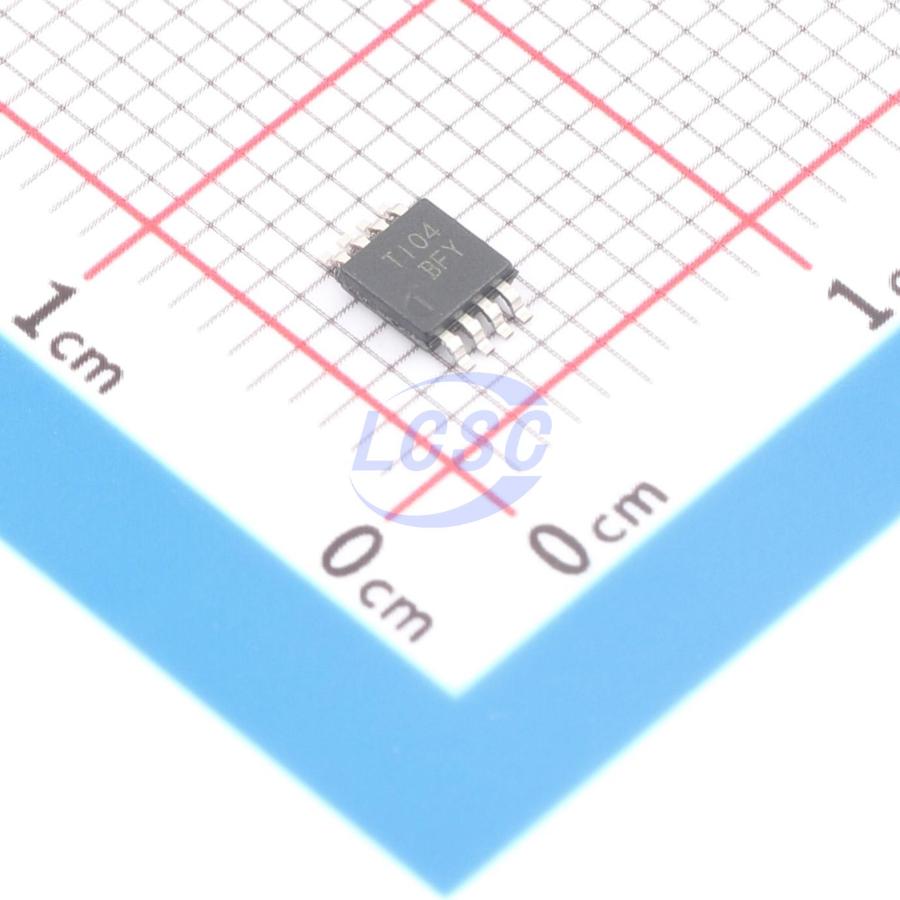

THS4225DGK
100mA 1 16mV 975V/us 69dB 5uA 22mA 120MHz Rail-to-rail output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS CompliantActive
Low-Distortion, High-Speed, Rail-to-Rail Output Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- THS4225DGK
- Store part #
- C1346950
- Package / case
- VSSOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1346950
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,011.14 | ₹1,011.14 |
| 10+ | ₹987.41 | ₹9,874.10 |
| 30+ | ₹971.78 | ₹29,153.40 |
| 100+ | ₹956.17 | ₹95,617.00 |
1 × ₹1,011.14
₹1,011.14
excl. GST
₹1,193.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
THS4225DGK
₹1,011.14 for 1 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 16mV
- Slew Rate
- 975V/us
- Input Offset Current(Ios)
- 700nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 69dB
- Ib - Input Bias Current
- 5uA
- Input Offset Voltage Drift(Vos TC)
- 20uV/℃
- Quiescent Current
- 22mA
- Gain Bandwidth Product
- 120MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 13nV/√Hz@1MHz
- Dual Supply
- -7.5V~-1.35V;1.35V~7.5V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.82 g
Overview
Applications
- Low-Voltage Analog-to-Digital Converter
- Preamplifier
- Active Filtering
- Video Applications
Key features
- Rail-to-Rail Output Swing − V₀ = -4.8/4.8 (Rₗ = 2 kΩ)
- High Speed − 230 MHz Bandwidth (−3 dB, G = 1)
- 975 V/μs Slew Rate
- Ultra-Low Distortion − HD2 = -90 dBc (f = 5 MHz, Rₗ = 499 Ω)
- HD3 = -100 dBc (f = 5 MHz, Rₗ = 499 Ω)
- High Output Drive, I₀ = 100 mA (typ)
- Excellent Video Performance − 40 MHz Bandwidth (0.1 dB, G = 2)
- 0.007% Differential Gain
- 0.007° Differential Phase
- Wide Range of Power Supplies − Vs = 3 V to 15 V
- Power-Down Mode (THS4225/6)
- Evaluation Module Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | THS3091IDGNR#C30713946TI · HVSSOP-8 | TI | HVSSOP-8 | 7 | ₹2,377.85 · 7 in stock | View |
 | LMH6550MMX/NOPB#C2060837TI · VSSOP-8 | TI | VSSOP-8 | 10 | ₹919.88 · 10 in stock | View |
| THS4221DGKR#C2059441TI · VSSOP-8 | TI | VSSOP-8 | On request | ₹600.38 · 0 in stock | View | |
