TIDatasheet (PDF)

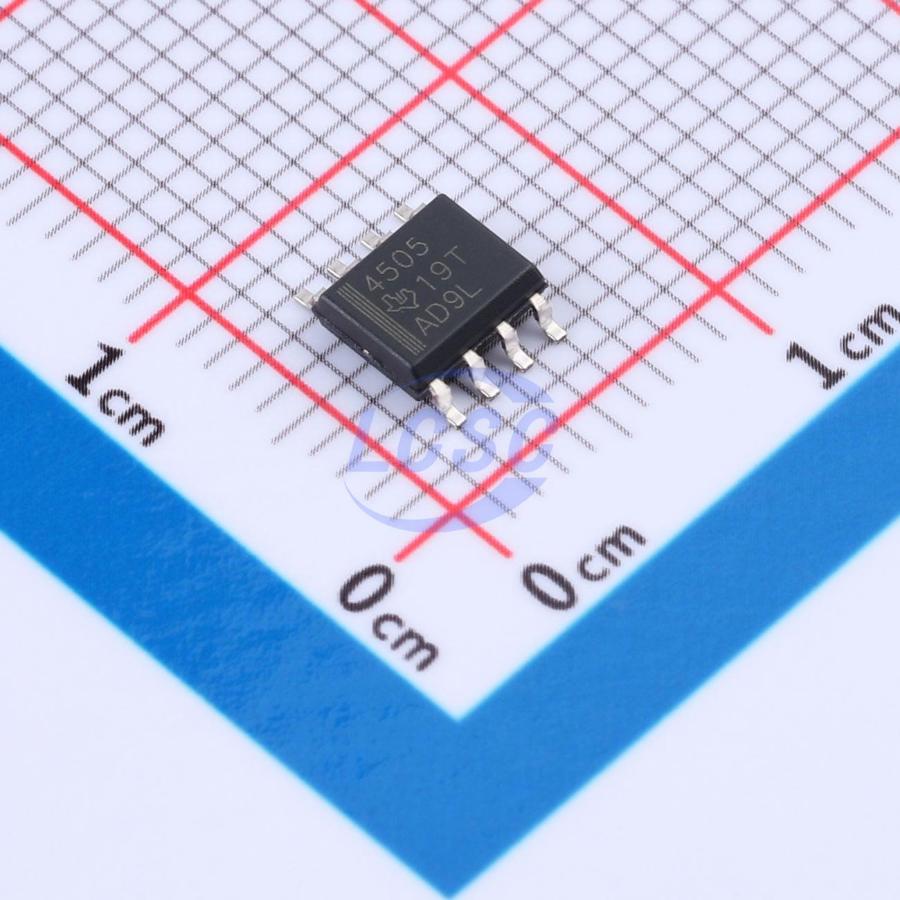

THS4505DR
150mA 1 4mV 1800V/us 80dB 4.6uA 16mA 200MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
WIDEBAND, LOW-DISTORTION, FULLY DIFFERENTIAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- THS4505DR
- Store part #
- C544352
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C544352
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,424.33 | ₹1,424.33 |
| 10+ | ₹1,269.99 | ₹12,699.90 |
| 30+ | ₹1,171.38 | ₹35,141.40 |
| 100+ | ₹1,076.04 | ₹1,07,604.00 |
1 × ₹1,424.33
₹1,424.33
excl. GST
₹1,680.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS4505DR
₹1,424.33 for 1 + GST
Specifications
- Settling time
- 100ns
- output type
- Differential
- Output Current
- 150mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 1800V/us
- Input Offset Current(Ios)
- 2uA
- Input Offset Current Drift (Ios TC)
- 40nA/℃
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 4.6uA
- Maximum Power Supply Range (Vdd-Vss)
- 15V
- Power Supply Rejection Ratio (PSRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 16mA
- Gain Bandwidth Product
- 200MHz
- Features
- Single-ended to differential conversion;Adjustable output common-mode voltage
- Dual Supply
- -7.5V~-5V;5V~7.5V
- Single Supply
- 4.5V~15V
- Noise density(eN)
- 8nV/√Hz@1MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
The THS4504 and THS4505 are high-performance, fully differential amplifiers. The THS4504, featuring power-down capability, and the THS4505, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 12-bit operation through 40 MHz. Package options include the SOIC-8 and the MSOP-8 with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability.
Applications
- High Linearity Analog-to-Digital Converter Preamplifier
- Wireless Communication Receiver Chains
- Single-Ended to Differential Conversion
- Differential Line Driver
- Active Filtering of Differential Signals
Key features
- Fully Differential Architecture
- Bandwidth: 260 MHz
- Slew Rate: 1800 V/μs
- IMD₃: -73 dBc at 30 MHz
- olP₃: 29 dBm at 30 MHz
- Output Common-Mode Control
- Wide Power-Supply Voltage Range: 5 V, ±5 V, 12 V, 15 V Input Common-Mode Range Shifted to Include the Negative Power-Supply Rail
- Power-Down Capability (THS4504)
- Evaluation Module Available
