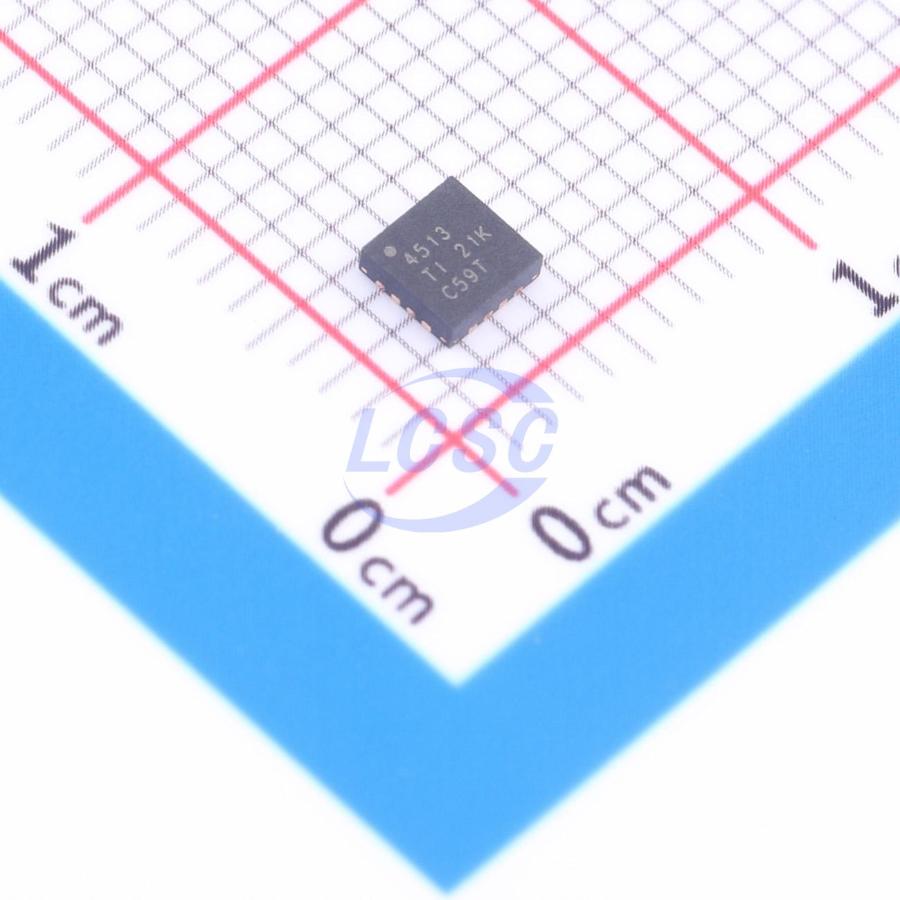

THS4513RGTR

The THS4513 is a wideband, fully-differential op amp designed for 3.3-V to 5 V data acquisition systems. It has very low noise at 2.2 nV/√Hz, and extremely low harmonic distortion of -75 dBc HD₂ and -86 dBc HD₃ at 70 MHz with 2-Vpp output, G = 0 dB, and 200-Ω load. Slew rate is very high at 5100 V/μs and with settling time of 2.9 ns to 1%, it is ideal for pulsed applications. It is designed for a minimum gain of 0 dB. To allow for dc-coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 5 mV offset (typ) from the set voltage, when set within 0.5 V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source. The input and output are optimized for best performance with their common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for extremely high-performance, single-supply 5-V data acquisition systems. The THS4513 is offered in a quad, leadless QFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from -40°C to +85°C.

Applications

• 5-V Data Acquisition Systems, High Linearity
• ADC Amplifier
• Wireless Communication
• Medical Imaging
• Test and Measurement

Key features

• Fully-Differential Architecture
• Centered Input Common-Mode Range
• Minimum Gain of 1 V/V (0 dB)
• Bandwidth: 1600 MHz
• Slew Rate: 5100 V/μs
• 1% Settling Time: 2.9 ns
• HD₂: –75 dBc at 70 MHz
• HD₃: –86 dBc at 70 MHz
• olP₂: 77 dBm at 70 MHz
• olP₃: 42 dBm at 70 MHz
• Input Voltage Noise: 2.2 nV/√Hz (f > 10 MHz)
• Noise Figure: 19.8 dB
• Output Common-Mode Control
• Power Supply:
• Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)
• Current: 37.7 mA
• Power-Down Capability: 0.65 mA
