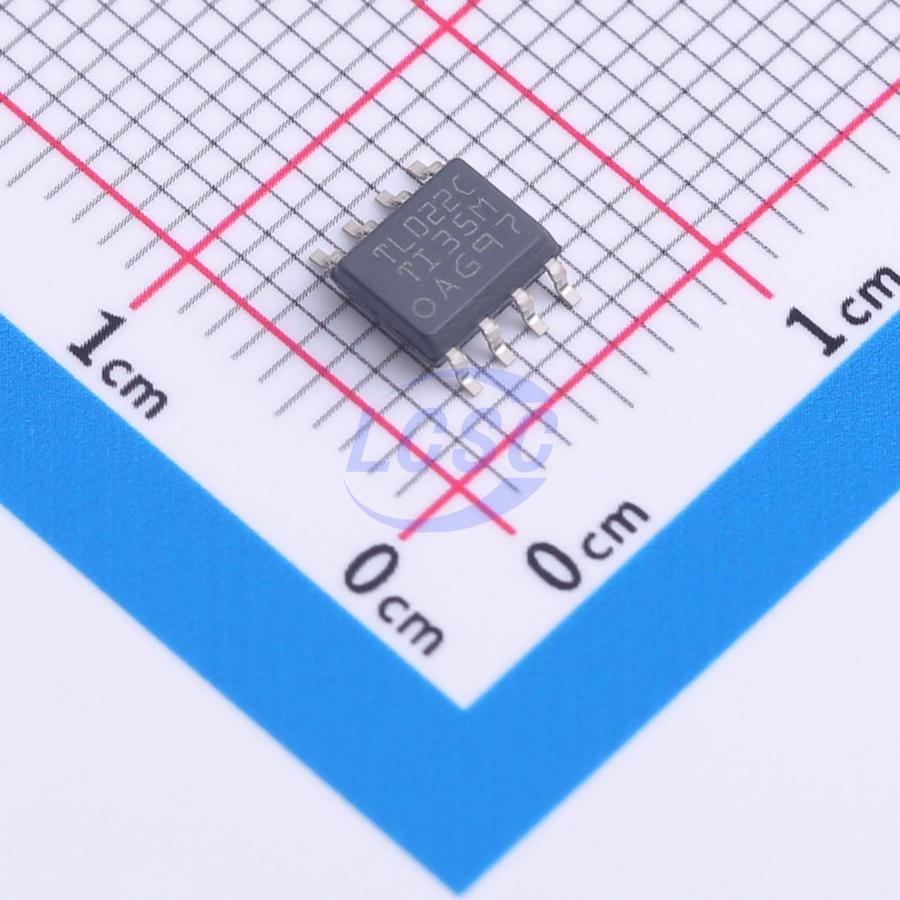

TL022CDR
6mA 2 1mV 500V/ms 72dB 100nA 130uA 500kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual Low-Power Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL022CDR
- Store part #
- C2878379
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
910 in stock
#C2878379
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.51 | ₹73.51 |
| 10+ | ₹62.88 | ₹628.80 |
| 30+ | ₹55.29 | ₹1,658.70 |
| 100+ | ₹49.23 | ₹4,923.00 |
| 500+ | ₹47.27 | ₹23,635.00 |
| 1,000+ | ₹46.19 | ₹46,190.00 |
1 × ₹73.51
₹73.51
excl. GST
₹86.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL022CDR
₹73.51 for 1 + GST
Specifications
- Output Current
- 6mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 15nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 72dB
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 130uA
- Gain Bandwidth Product
- 500kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
The TL022 is a dual low-power operational amplifier designed to replace higher power devices in many applications without sacrificing system performance. High input impedance, low supply currents, and low equivalent input noise voltage over a wide range of operating supply voltages result in an extremely versatile operational amplifier for use in a variety of analog applications including battery-operated circuits. Internal frequency compensation, absence of latch-up, high slew rate, and output short-circuit protection assure ease of use.
Key features
- Very Low Power Consumption
- Power Dissipation With ±2 - V Supplies 170 μν Typ
- Low Input Bias and Offset Currents
- Output Short-Circuit Protection
- Low Input Offset Voltage
- Internal Frequency Compensation
- Latch-Up-Free Operation
- Popular Dual Operational Amplifier Pinout
