TIDatasheet (PDF)

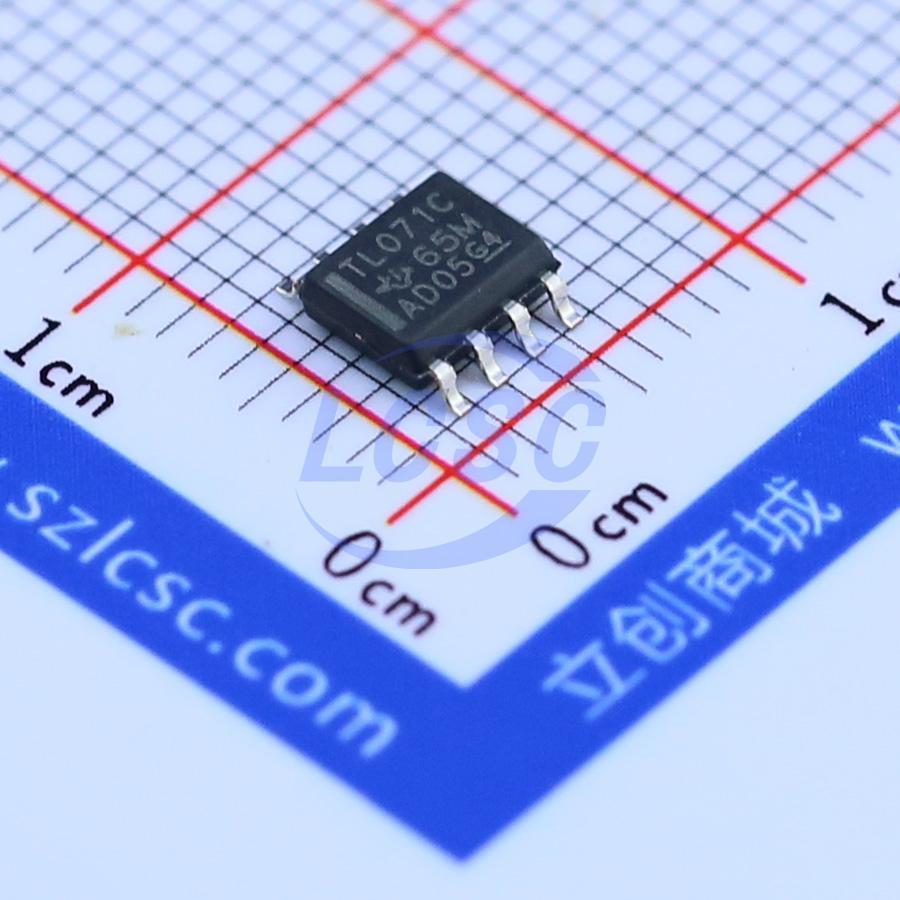

TL071CDR
1 3mV 13V/us 86dB 65pA 1.4mA 5.25MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- TL071CDR
- Store part #
- C14449
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,675 in stock
#C14449
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.99 | ₹174.95 |
| 50+ | ₹29.21 | ₹1,460.50 |
| 150+ | ₹26.72 | ₹4,008.00 |
| 500+ | ₹23.63 | ₹11,815.00 |
| 2,500+ | ₹21.84 | ₹54,600.00 |
| 5,000+ | ₹21.02 | ₹1,05,100.00 |
5 × ₹34.99
₹174.95
excl. GST
₹206.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL071CDR
₹174.95 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 65pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 5.25MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
The JFET-input operational amplifiers in the TL07x series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.
Applications
- Solar string and central inverters
- Motor drive AC and servo drive control & power stage modules
- Single-phase online UPS
- Three-phase UPS
- Professional audio mixers
- Battery test equipment
Key features
- Low Power Consumption
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias and Offset Currents
- Output Short-Circuit Protection
- Low Total Harmonic Distortion, 0.003% Typ
- Low Noise, Vn = 18 nV/Hz Typ at f = 1 kHz
- High Input Impedance
- JFET Input Stage
- Internal Frequency Compensation
- Latch-Up-Free Operation
- High Slew Rate, 13 V/Hz Typ
- Common-Mode Input Voltage Range Includes VCC +
