TIDatasheet (PDF)

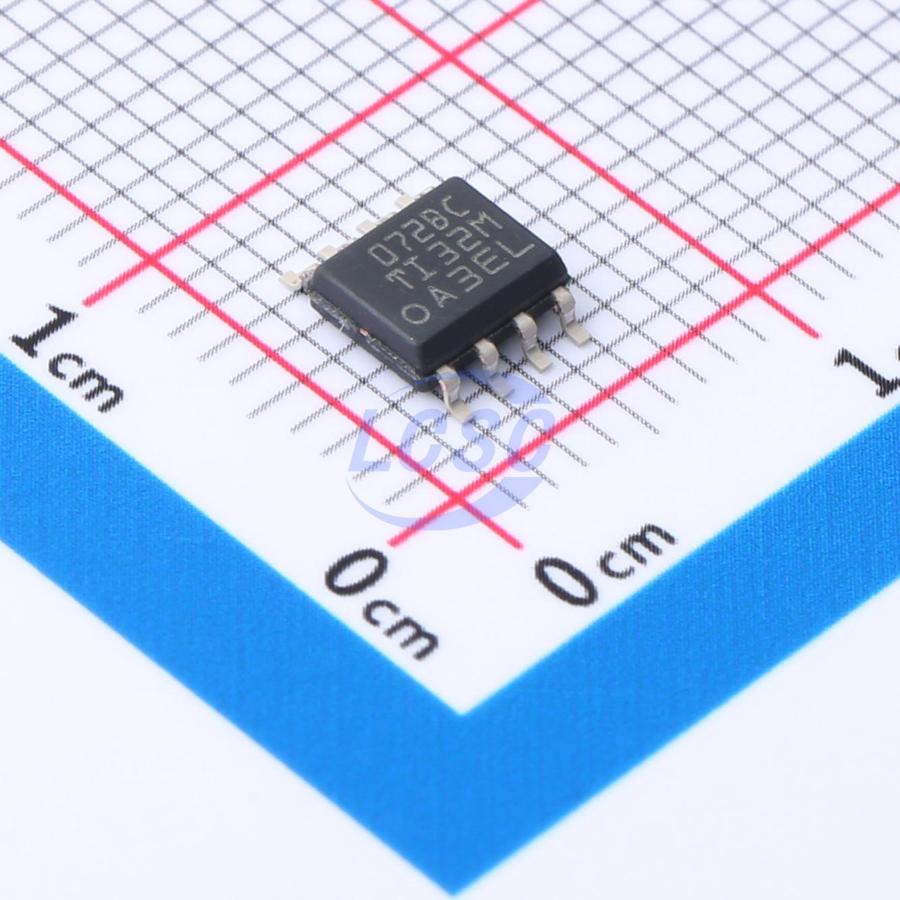

TL072BCDR
26mA 2 2mV 20V/us 100dB 65pA 1.13mA 5.25MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low-noise FET-input operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TL072BCDR
- Store part #
- C2057267
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,234 in stock
#C2057267
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.73 | ₹88.73 |
| 10+ | ₹75.00 | ₹750.00 |
| 30+ | ₹65.41 | ₹1,962.30 |
| 100+ | ₹57.56 | ₹5,756.00 |
| 500+ | ₹54.94 | ₹27,470.00 |
| 1,000+ | ₹53.63 | ₹53,630.00 |
1 × ₹88.73
₹88.73
excl. GST
₹104.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL072BCDR
₹88.73 for 1 + GST
Specifications
- Output Current
- 26mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 65pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1.13mA
- Gain Bandwidth Product
- 5.25MHz
- Features
- Short-Circuit Protection;EMI filtering/RF suppression
- Input Voltage Noise Density
- 37nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
The TL07xH (TL071H, TL072H, and TL074H) series of devices are the next-generation versions of the TL07x (TL071, TL072, and TL074) devices. These devices offer excellent value for cost-sensitive applications, with features including low offset voltage (1mV, typical), high slew rate (20V/μs), and common-mode input for positive power supplies. Thanks to high ESD (1.5kV, HBM), integrated EMI and RF filters, and the ability to operate over the full temperature range from –40°C to 125°C, the TLO7xH devices can be used in extremely demanding applications.
Applications
- Solar: string and central inverters
- Motor drives: AC and servo drive control and power stage modules
- Single-phase online UPS
- Three-phase UPS
- Professional audio mixers
- Battery test equipment
Key features
- High slew rate: 20V/μs (TL07xH, typical)
- Low offset voltage: 1mV (TL07xH, typical)
- Low offset voltage drift: 2μV/°C
- Low power consumption: 940μA/ch (TL07xH, typical)
- Wide common-mode and differential voltage range; common-mode input voltage range includes VCC+
- Low input bias and offset current
- Low noise: Vn = 18nV/√Hz at f = 1kHz (typical)
- Output short-circuit protection
- Low THD: 0.003% (typical)
- Wide supply voltage range: ±2.25V to ±20V, 4.5V to 40V
