TIDatasheet (PDF)

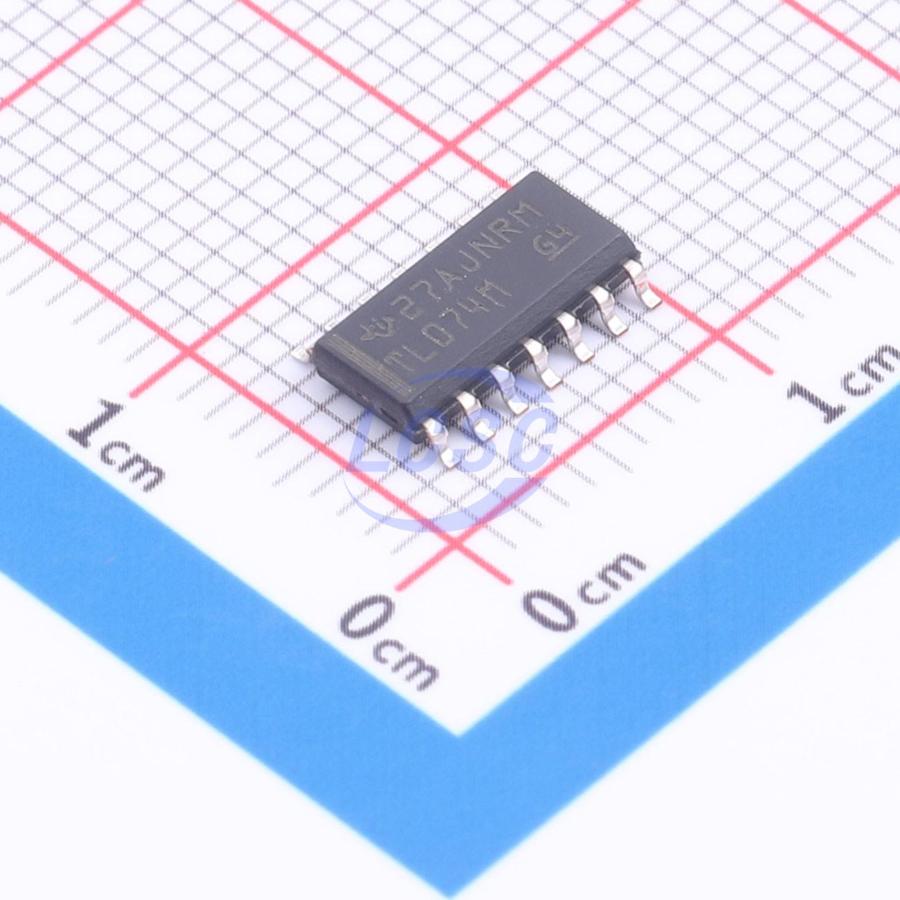

TL074MDEP
6mV 13V/us 86dB 200pA 2.5mA 3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TL074MDEP
- Store part #
- C1347964
- Package / case
- SOIC-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1347964
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹823.69 | ₹823.69 |
| 10+ | ₹804.61 | ₹8,046.10 |
| 30+ | ₹791.82 | ₹23,754.60 |
| 100+ | ₹779.02 | ₹77,902.00 |
1 × ₹823.69
₹823.69
excl. GST
₹971.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL074MDEP
₹823.69 for 1 + GST
Specifications
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.92 g
Overview
JFET-input op-amps similar to the TL08x series, featuring low input bias and offset currents and fast slew rate. Low harmonic distortion and low noise make it ideal for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with a bipolar output stage integrated on a single monolithic chip. Operates over an extended temperature range (-40°C to 125°C).
Applications
- High-fidelity
- Audio preamplifier
Key features
- Low power consumption
- Wide common-mode and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- Low total harmonic distortion: 0.003% typical
- Low noise, at f = 1kHz, typical vn = 18nV/√Hz
- High input impedance: JFET input stage
- Internal frequency compensation
- Latch-up free operation
- High slew rate: 13V/μs typical
- Common-mode input voltage range includes Vcc+
- Controlled baseline
- Single assembly and test site
- Single fabrication site
- Available over extended temperature range (-40℃ to 125℃)
- Extended product life cycle
- Enhanced product change notification
- Product traceability
