TIDatasheet (PDF)

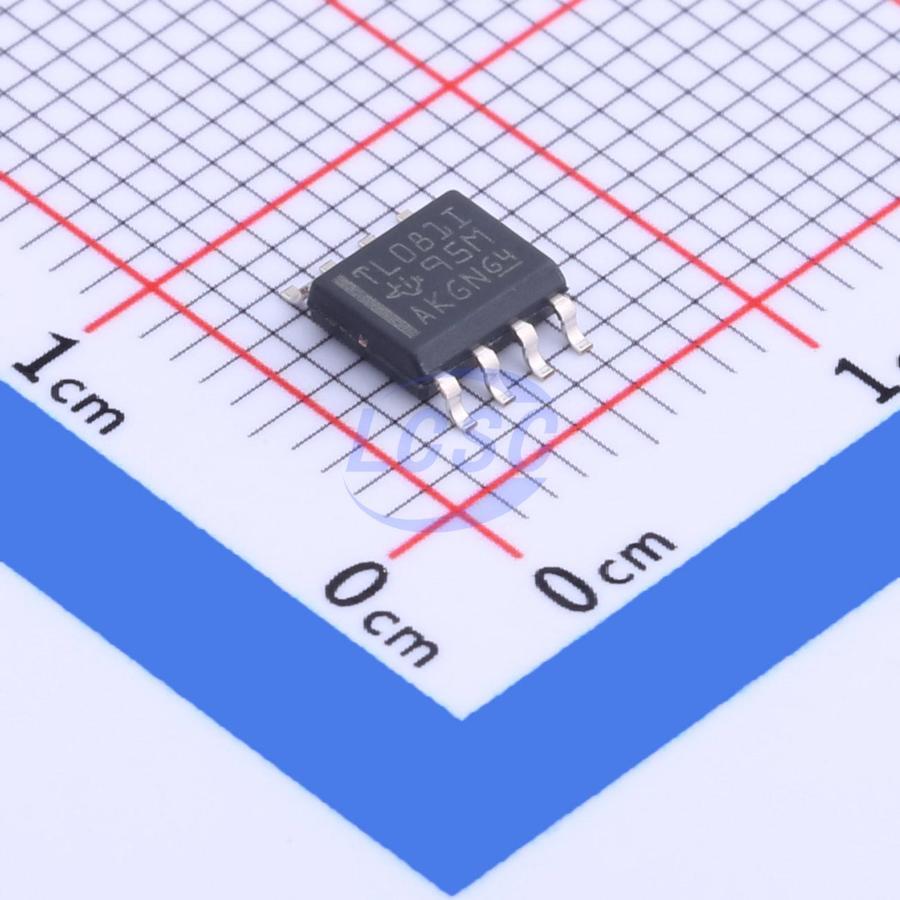

TL081IDR
26mA 1 3mV 20V/us 105dB 30pA 940uA 5.25MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
FET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL081IDR
- Store part #
- C2057919
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,700 in stock
#C2057919
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.76 | ₹198.80 |
| 50+ | ₹31.17 | ₹1,558.50 |
| 150+ | ₹27.48 | ₹4,122.00 |
| 500+ | ₹22.89 | ₹11,445.00 |
| 2,500+ | ₹20.84 | ₹52,100.00 |
| 5,000+ | ₹19.62 | ₹98,100.00 |
5 × ₹39.76
₹198.80
excl. GST
₹234.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL081IDR
₹198.80 for 5 + GST
Specifications
- Output Current
- 26mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 105dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 940uA
- Gain Bandwidth Product
- 5.25MHz
- Features
- Short-Circuit Protection;EMI filtering/RF suppression
- Input Voltage Noise Density
- 37nV/√Hz@1kHz
- Dual Supply
- -20V~-2.25V;2.25V~20V
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/μs), and common-mode input to the positive supply. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and operation across the full -40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.
Applications
- Solar energy: string and central inverter
- Motor drives: AC and servo drive control and power stage modules
- Single phase online UPS
- Three phase UPS
- Pro audio mixers
- Battery test equipment
Key features
- High slew rate: 20 V/μs (TL08xH, typ)
- Low offset voltage: 1 mV (TL08xH, typ)
- Low offset voltage drift: 2 μV/°C
- Low power consumption: 940 μA/ch (TL08xH, typ)
- Wide common - mode and differential voltage ranges. Common - mode input voltage range includes VCC+
- Low input bias and offset currents
- Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz
- Output short - circuit protection
- Low total harmonic distortion: 0.003% (typ)
- Wide supply voltage: ±2.25 V to ±20 V, 4.5 V to 40 V
