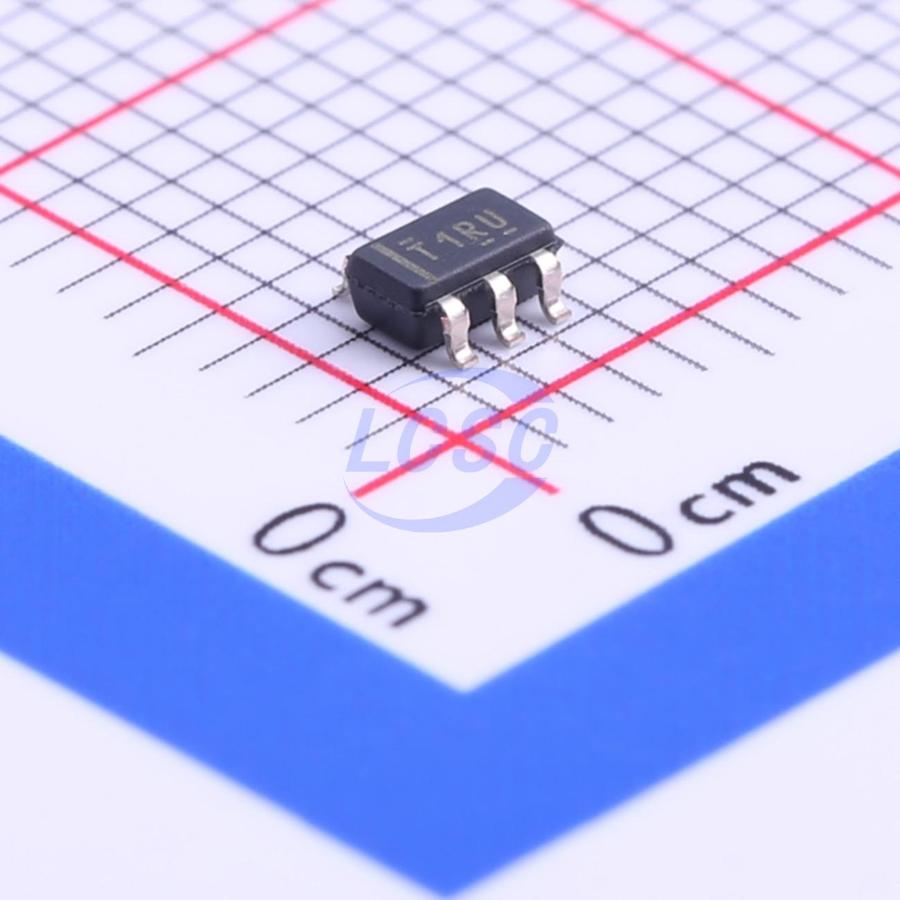

TL331QDBVRQ1
1 400uA 2mV SOT-23-5 Comparators RoHS
SINGLE DIFFERENTIAL COMPARATOR
- Manufacturer
- TI
- Manufacturer part #
- TL331QDBVRQ1
- Store part #
- C73874
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,614 in stock
#C73874
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.10 | ₹73.10 |
| 10+ | ₹59.83 | ₹598.30 |
| 30+ | ₹54.16 | ₹1,624.80 |
| 100+ | ₹46.99 | ₹4,699.00 |
| 500+ | ₹41.33 | ₹20,665.00 |
| 1,000+ | ₹39.37 | ₹39,370.00 |
1 × ₹73.10
₹73.10
excl. GST
₹86.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL331QDBVRQ1
₹73.10 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS;MOS
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection
- Ib - Input Bias Current
- 25nA
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us;0.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
This device consists of a single voltage comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible if the difference between the two supplies is 2 V to 36 V and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. To achieve wired - AND relationships, one can connect the output to other open - collector outputs.
Key features
- Qualified for Automotive Applications
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage: 2 V to 36 V
- Low Supply - Current Drain Independent of Supply Voltage: 0.4 mA Typ.
- Low Input Bias Current: 25 nA Typ.
- Low Input Offset Voltage: 2 mV Typ.
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage: ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL331IDBVR#C80942TI · SOT-23-5 | TI | SOT-23-5 | 1,27,575 | ₹13.53 · 1,27,575 in stock | View |
 | TL331KDBVR#C473337TI · SOT-23-5 | TI | SOT-23-5 | 17,065 | ₹28.42 · 17,065 in stock | View |
