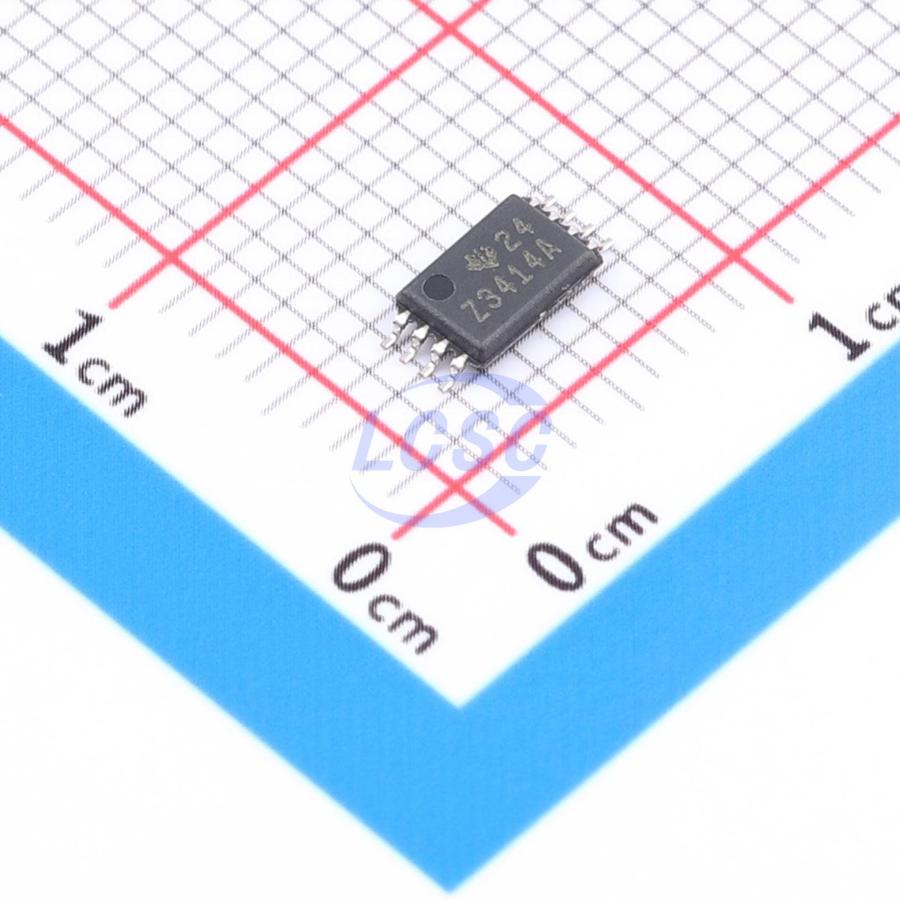

TL3414AIPWR
70mA 2 2mV 1.3V/us 79dB 300nA 4mA 2MHz TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TL3414AIPWR
- Store part #
- C2058442
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2058442
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.66 | ₹185.66 |
| 10+ | ₹180.95 | ₹1,809.50 |
| 30+ | ₹177.73 | ₹5,331.90 |
| 100+ | ₹174.73 | ₹17,473.00 |
1 × ₹185.66
₹185.66
excl. GST
₹219.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TL3414AIPWR
₹185.66 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 15nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 79dB
- Ib - Input Bias Current
- 300nA
- Quiescent Current
- 4mA
- Gain Bandwidth Product
- 2MHz
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -7.5V~-1.5V;1.5V~7.5V
- Single Supply
- 3V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The TL3414A device is a dual operational amplifier that can be operated with single or dual power supplies. In addition to high gain and high output voltage swing, it is capable of driving a 70-mA load, making it ideally suited for simple, low-cost audio-amplifier applications, such as headphone amplifiers in DVD and CDRW applications.
Applications
- Headphone Drivers
- Audio-amplifier applications
- Headphone amplifiers in DVD and CDRW applications
Key features
- Single/Dual Power-Supply Operation
- High Output Current ... 70 mA, VCC+ = 5 V
- Wide Operating Voltage ... 3 to 15 V (Single Supply)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP602-I/ST#C636248MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 100 | ₹228.10 · 100 in stock | View |
 | MCP607T-I/ST-TUDI#C36533694Tudi · TSSOP-8 | Tudi | TSSOP-8 | 2,476 | ₹104.73 · 2,476 in stock | View |
| TS922AIYPT#C2057757ST · TSSOP-8 | ST | TSSOP-8 | 5 | ₹448.66 · 5 in stock | View | |
 | TSV912AIPWR#C2058383TI · TSSOP-8 | TI | TSSOP-8 | 2,614 | ₹70.91 · 2,614 in stock | View |
 | TLV2772QPWRQ1#C2058780TI · TSSOP-8 | TI | TSSOP-8 | 10 | ₹633.08 · 10 in stock | View |
