Guangdong HottechDatasheet (PDF)

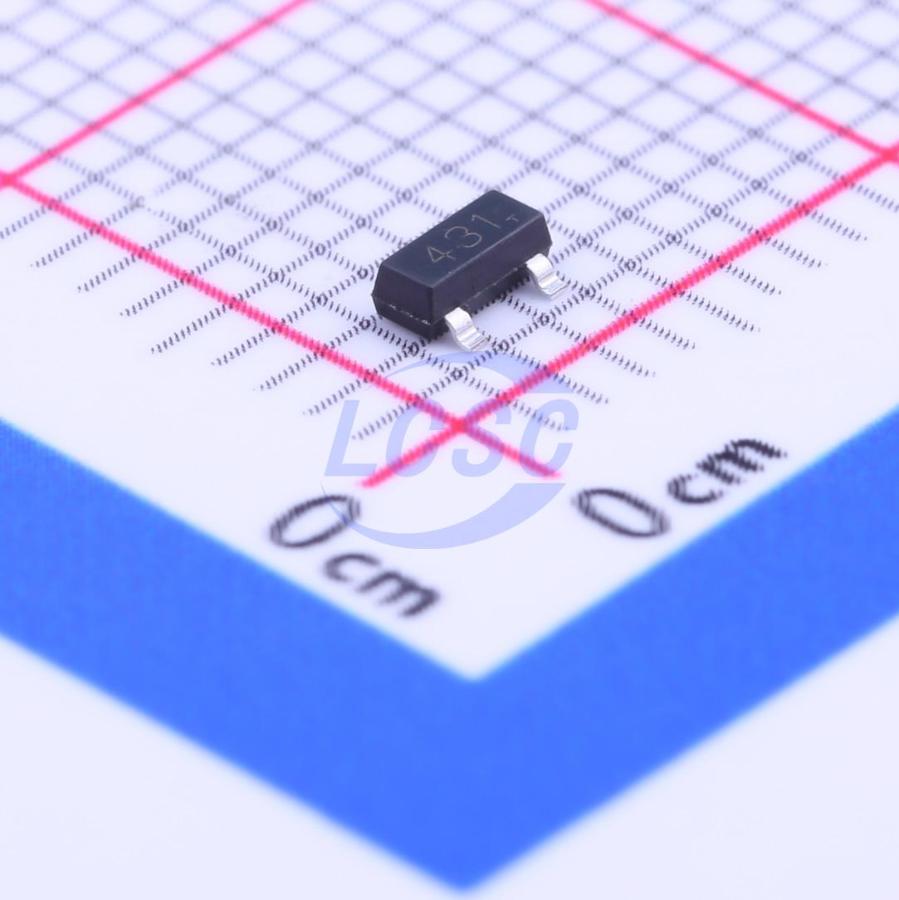

TL431
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
SOT-23ROHS CompliantActive
ADJUSTABLE ACCURATE REFERENCE SOURCE
- Manufacturer
- Guangdong Hottech
- Manufacturer part #
- TL431
- Store part #
- C181103
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,90,080 in stock
#C181103
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.07 | ₹80.70 |
| 100+ | ₹6.62 | ₹662.00 |
| 300+ | ₹5.87 | ₹1,761.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.37 | ₹26,220.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹8.07
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹80.70 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -20℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Applications
- Shunt Regulator
- High-Current Shunt Regulator Precision Current Limiter
Key features
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100 mA
- Low output noise voltage
- Fast on-state response
- Surface Mount device
