MSKSEMIDatasheet (PDF)

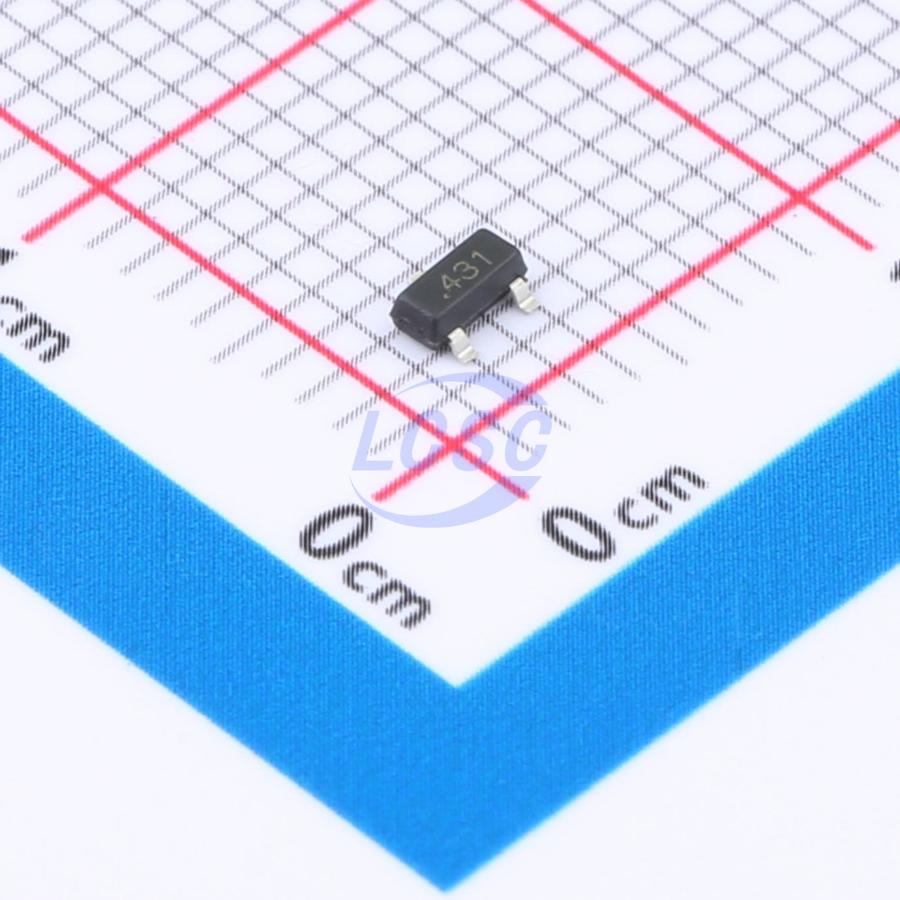

TL431A-MS
2.5V~36V ±0.5% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Three-terminal adjustable shunt voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431A-MS
- Store part #
- C19272793
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,51,920 in stock
#C19272793
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.00 | ₹60.00 |
| 200+ | ₹2.38 | ₹476.00 |
| 600+ | ₹2.02 | ₹1,212.00 |
| 3,000+ | ₹1.59 | ₹4,770.00 |
| 9,000+ | ₹1.42 | ₹12,780.00 |
| 21,000+ | ₹1.31 | ₹27,510.00 |
20 × ₹3.00
₹60.00
excl. GST
₹70.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431A-MS
₹60.00 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 80uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The TL431A-MS are three-terminal adjustable shunt regulators with a specified thermal stability. The output voltage may be set to any value between Vref (approx. 2.5V) and 36V with two external resistors. The active output circuitry provides a very sharp turn- on characteristic making these devices an excellent replacement for zener diodes in many applications.
Key features
- On-wafer Vref trimming ± 0.3%
- 95% chips after packaging have Vref accuracy ±0.5%
- Low Dynamic output impedance 0.1Ω (Typ)
- Adjustable output voltage
- Fast turn-on response Sink current capability of 0.1mA to 100mA
- Low output noise
- Industrial temperature range
- Improved temperature compensation
- Excellent temperature coefficient 25ppm/°C
- Electrostatic discharge voltage 1.6kV
