XBLWDatasheet (PDF)

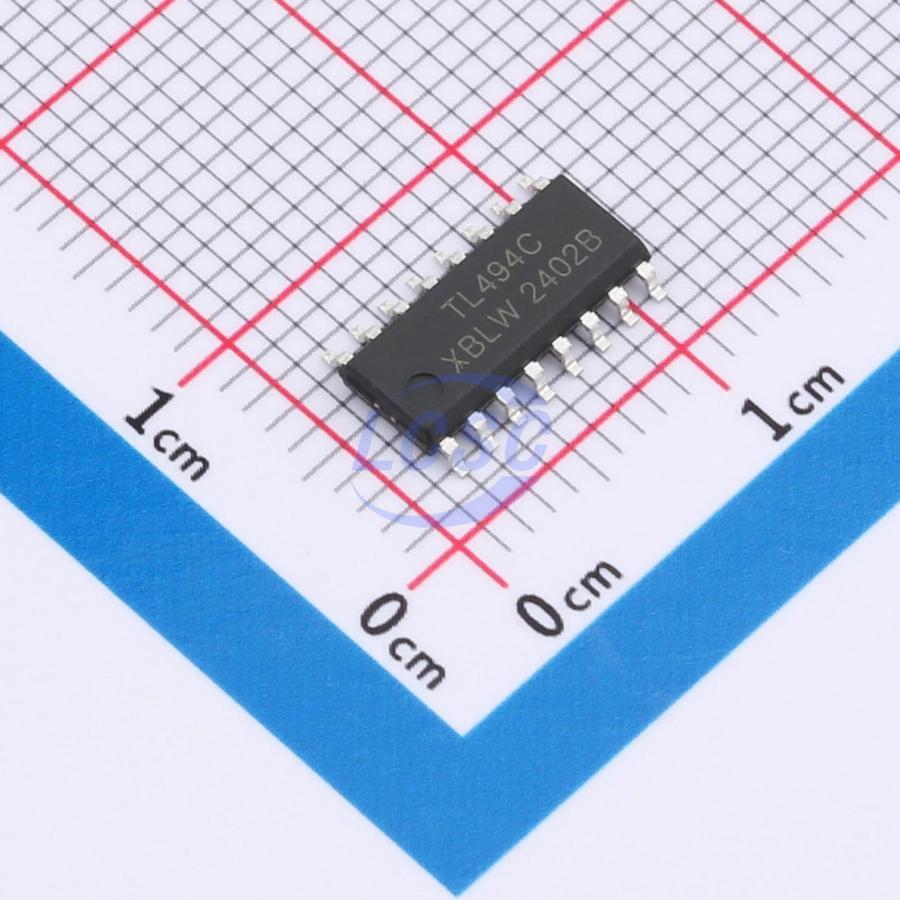

TL494CDTR(XBLW)
1kHz~200kHz Fixed 5V 200mA SOP-16 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-16ROHS CompliantActive
Current Mode PWM Controller
- Manufacturer
- XBLW
- Manufacturer part #
- TL494CDTR(XBLW)
- Store part #
- C22357879
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,240 in stock
#C22357879
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.68 | ₹53.40 |
| 50+ | ₹9.46 | ₹473.00 |
| 150+ | ₹8.85 | ₹1,327.50 |
| 500+ | ₹8.40 | ₹4,200.00 |
| 2,500+ | ₹8.03 | ₹20,075.00 |
| 5,000+ | ₹7.85 | ₹39,250.00 |
5 × ₹10.68
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL494CDTR(XBLW)
₹53.40 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 1kHz~200kHz
- Number of Outputs
- 2
- Features
- Built-in LDO regulator
- Topology
- Buck;Push-Pull
- Output Type
- Fixed
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- External
- Output Voltage
- 5V
- Output Current
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.309 g
Overview
The TL494 is used for the control circuit of the PwM switching regulator. The TL494 consists of 5V reference voltage circuit, two error amplifiers, a flip flop, an output control circuit, a PwM comparator, a dead time comparator and an oscillator.
Applications
- Desktop PCs
- E-Bikes
- Microwave Ovens
- Power Supplies: AC/DC, Isolated, With or Without PFC
- Power: Telecom/Server AC/DC Supplies: Dual Controller: Analog
- Server PSUs
- Smoke Detectors
- Solar Micro-Inverters
- Solar Power Inverters
- Washing Machines: Low-End and High-End
Key features
- Complete PWM Power-Control Circuitry
- On-Chip Oscillator With Master or Slave Operation
- Including Double Error Amplifier
- Internal Regulator Provides a Stable 5-V Reference Supply
- Uncommitted Outputs for 200-mA Sink or Source Current
- Variable Dead Time Provides Control Over Total Range
- Output Control Selects Single-Ended or Push-Pull Operation
