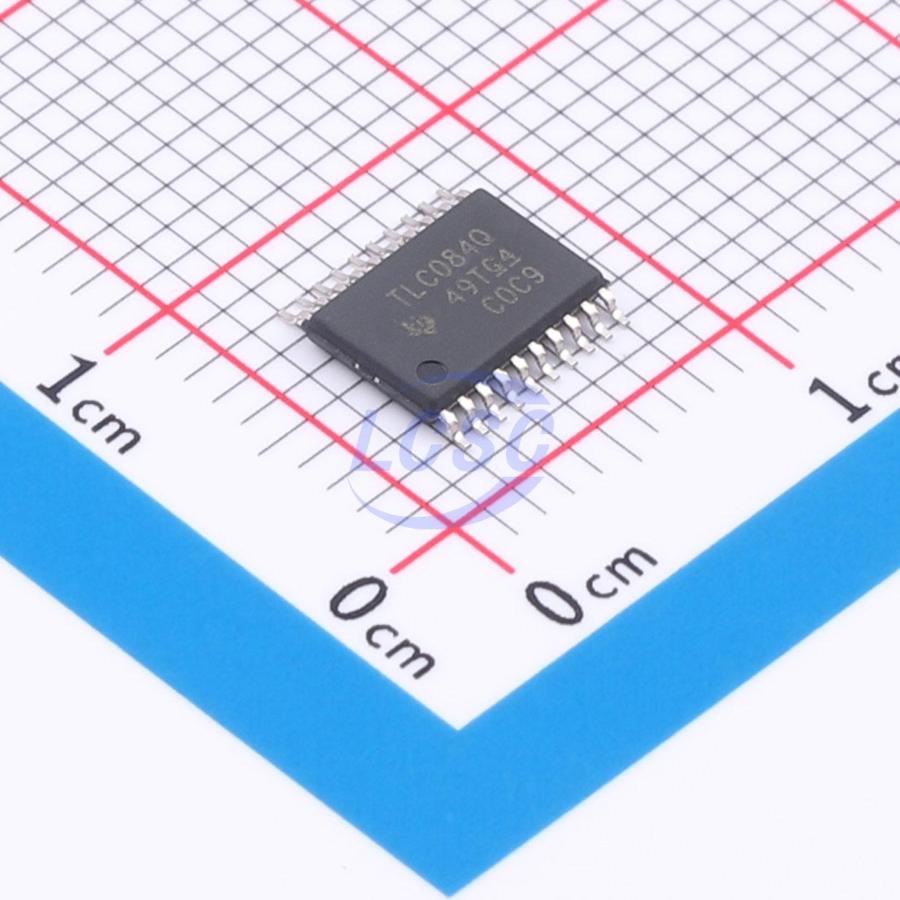

TLC084QPWPRQ1

Standard (General Purpose) Amplifier 4 Circuit HTSSOP-20-EP

HTSSOP-20-EPROHS3 CompliantActive

TLC08x-Q1 Wide-Bandwidth, High Output Drive, Single-Supply Operational Amplifiers

Manufacturer: TI
Manufacturer part #: TLC084QPWPRQ1
Store part #: C2870967
Package / case: HTSSOP-20-EP
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2870967

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹543.22	₹543.22
10+	₹530.44	₹5,304.40
30+	₹521.92	₹15,657.60
100+	₹513.40	₹51,340.00

Quantity (min 1)

1 × ₹543.22

₹543.22

excl. GST

₹641.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLC084QPWPRQ1

₹543.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 57mA
Number of Channels: 4
Vos - Input Offset Voltage: 390uV
Slew Rate: 16V/us
Input Offset Current(Ios): 1.9pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 3pA
Input Offset Voltage Drift(Vos TC): 1.2uV/℃
Quiescent Current: 1.9mA
Gain Bandwidth Product: 10MHz
Input Voltage Noise Density: 8.5nV/√Hz@1kHz
Dual Supply: -8V~-2.25V;2.25V~8V
Single Supply: 4.5V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.25 g

Overview

TLC08x-Q1 is a general-purpose op amp that provides an upgrade path for BiFET users transitioning from dual-supply to single-supply systems while requiring higher AC and DC performance. It delivers excellent performance across the full automotive operating temperature range (-40°C to 125°C) at a rated voltage of 4.5V to 16V, making it suitable for a wide range of audio, automotive, industrial, and instrumentation applications. The BiMOS amplifier combines an ultra-high input impedance, low-noise CMOS front end with a high-drive bipolar output stage for optimal performance characteristics. Compared to the earlier TL08x-Q1 BiFET, AC performance is improved with 10MHz bandwidth and 8.5nV/√Hz voltage noise. DC performance improvements include a guaranteed VICR that extends to ground, a 4× reduction in input offset voltage to 1.5mV (maximum), and a 40dB increase in power supply rejection to 130dB. The ultra-compact MSOP PowerPAD package easily drives ±50mA loads, making this an ideal high-performance general-purpose op amp family.

Applications

Automotive
Blind spot detection engine control unit
Electric rearview mirror
HVAC steering collision warning
Telematics
Instrument cluster
Audio
Industrial instrumentation

Key features

High output drive – IOH: 57mA at -1.5V VDD, IOL: 55mA at 0.5V
High slew rate SR+: 16V/μs, SR−: 19V/μs
Wide supply voltage range: 4.5V to 16V
Supply current: 1.9mA per channel
Low input noise voltage: 8.5nV/√Hz
Input offset voltage: 60μV
Ultra-small 8-pin MSOP-PowerPAD package for TLC082-Q1
