TIDatasheet (PDF)

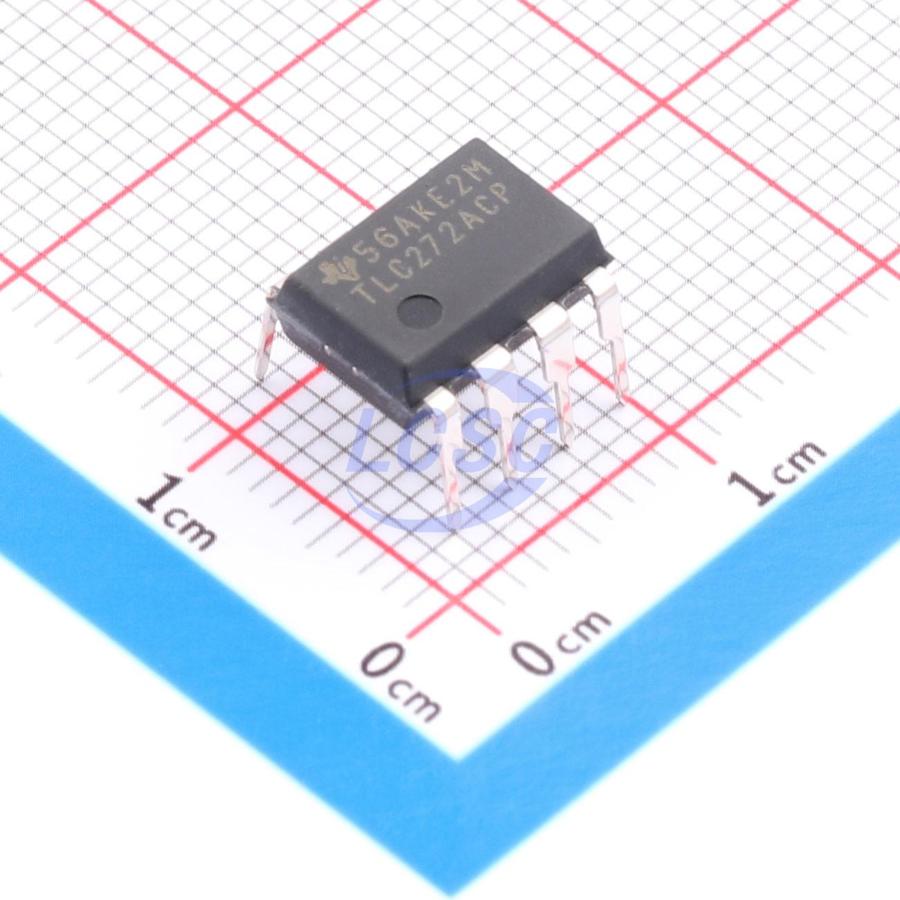

TLC272ACP
30mA 2 5mV 5.3V/us 65dB 0.6pA 1.6mA 2.2MHz Rail-to-Rail Input, Rail-to-Rail Output PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TLC272ACP
- Store part #
- C1347149
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1347149
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹377.04 | ₹377.04 |
| 10+ | ₹368.15 | ₹3,681.50 |
| 30+ | ₹362.30 | ₹10,869.00 |
| 100+ | ₹356.44 | ₹35,644.00 |
1 × ₹377.04
₹377.04
excl. GST
₹444.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TLC272ACP
₹377.04 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 5.3V/us
- Input Offset Current(Ios)
- 60pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Ib - Input Bias Current
- 0.6pA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 1.6mA
- Gain Bandwidth Product
- 2.2MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.28 g
Overview
Applications
- transducer interfacing
- analog calculations
- amplifier blocks
- active filters
- signal buffering
- remote and inaccessible battery - powered applications
- high - density system applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA2340PA#C544484TI · PDIP-8 | TI | PDIP-8 | 3 | ₹2,465.19 · 3 in stock | View | |
 | MCP6022-E/P#C640398MICROCHIP · PDIP-8 | MICROCHIP | PDIP-8 | 54 | ₹410.63 · 54 in stock | View |
 | MCP6022-I/P#C640399MICROCHIP · PDIP-8 | MICROCHIP | PDIP-8 | 45 | ₹408.74 · 45 in stock | View |
 | ICL7621DCPA-TUDI#C41417237Tudi · DIP-8 | Tudi | DIP-8 | 791 | ₹112.97 · 791 in stock | View |
 | MCP6292-E/P#C640434MICROCHIP · PDIP-8 | MICROCHIP | PDIP-8 | 22 | ₹212.01 · 22 in stock | View |
