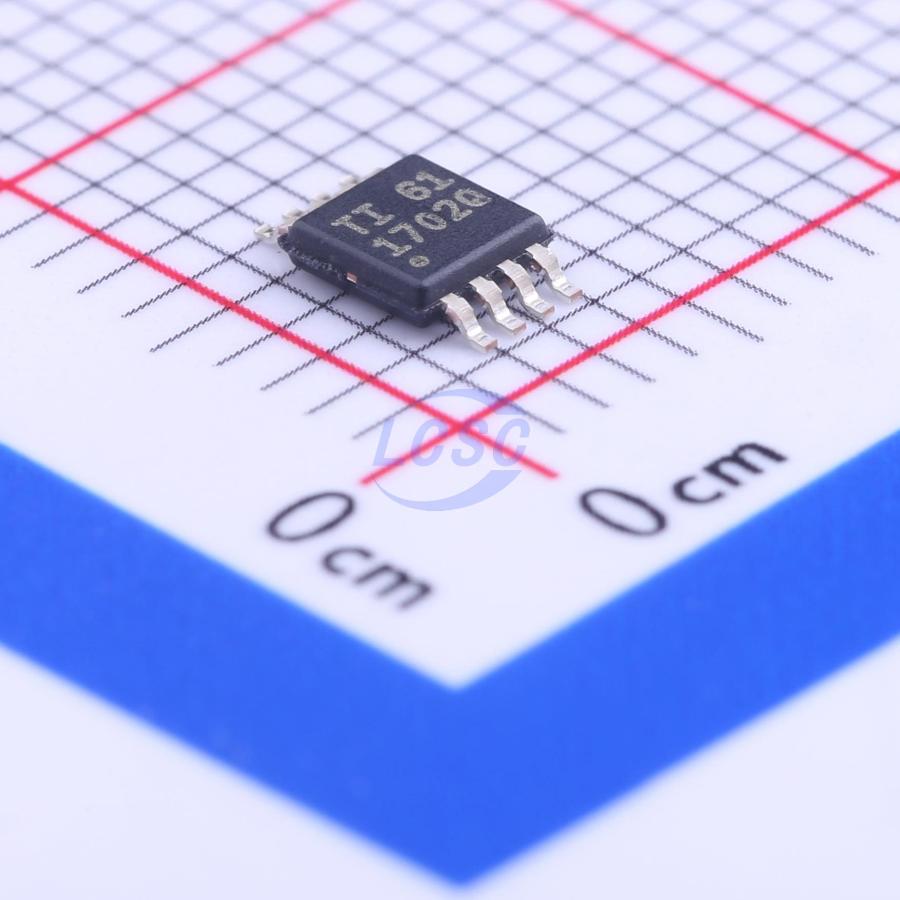

TLV1702AQDGKRQ1
2 55uA 500uV Rail-to-rail input VSSOP-8 Comparators RoHS
Micro-power comparator with an input voltage range from 2.2V to 36V
- Manufacturer
- TI
- Manufacturer part #
- TLV1702AQDGKRQ1
- Store part #
- C130036
- Package / case
- VSSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,814 in stock
#C130036
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.72 | ₹255.72 |
| 10+ | ₹214.01 | ₹2,140.10 |
| 30+ | ₹188.16 | ₹5,644.80 |
| 100+ | ₹161.43 | ₹16,143.00 |
| 500+ | ₹149.49 | ₹74,745.00 |
| 1,000+ | ₹144.26 | ₹1,44,260.00 |
1 × ₹255.72
₹255.72
excl. GST
₹301.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV1702AQDGKRQ1
₹255.72 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 0.5nA
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.1V~18V;-18V~-1.1V
- Ib - Input Bias Current
- 5nA
- Input Offset Voltage Drift(Vos TC)
- 20uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 560ns
- Quiescent Current(Iq)
- 55uA
- Vos - Input Offset Voltage
- 500uV
- Maximum Power Supply Range (Vdd-Vss)
- 40V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 365ns
- Single Supply
- 2.2V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
The TLV1702-Q1 device offers a wide supply voltage range, rail-to-rail inputs, low quiescent current, and low propagation delay. The open-collector output has the advantage of being able to pull the output to any voltage rail (up to 36 V above the negative supply) independent of the TLV1702-Q1 supply voltage. This device is a dual-channel micropower comparator. The low input offset voltage, low input bias current, low supply current, and open-collector configuration enable the TLV1702-Q1 device to flexibly handle most applications from simple voltage detection to driving a single relay. This device is rated to operate over the extended industrial temperature range of -40°C to +125°C.
Applications
- Overvoltage and undervoltage detectors
- Window comparators
- Overcurrent detectors
- Zero-crossing detectors
- System monitoring for:
- Power supplies
- White goods
- Industrial sensors
- Automotive
- Medical
Key features
- Automotive-grade, AEC-Q100 qualified with the following results:
- Device temperature grade 1: ambient operating temperature range –40°C to +125°C
- Device HBM classification level 1C
- Device CDM classification level C6
- Supply voltage range: 2.2V to 36V or ±1.1V to ±18V
- Low quiescent current: 55μA per comparator
- Low propagation delay: 560ns
- Low input offset voltage: 300μV
- Open-collector output
