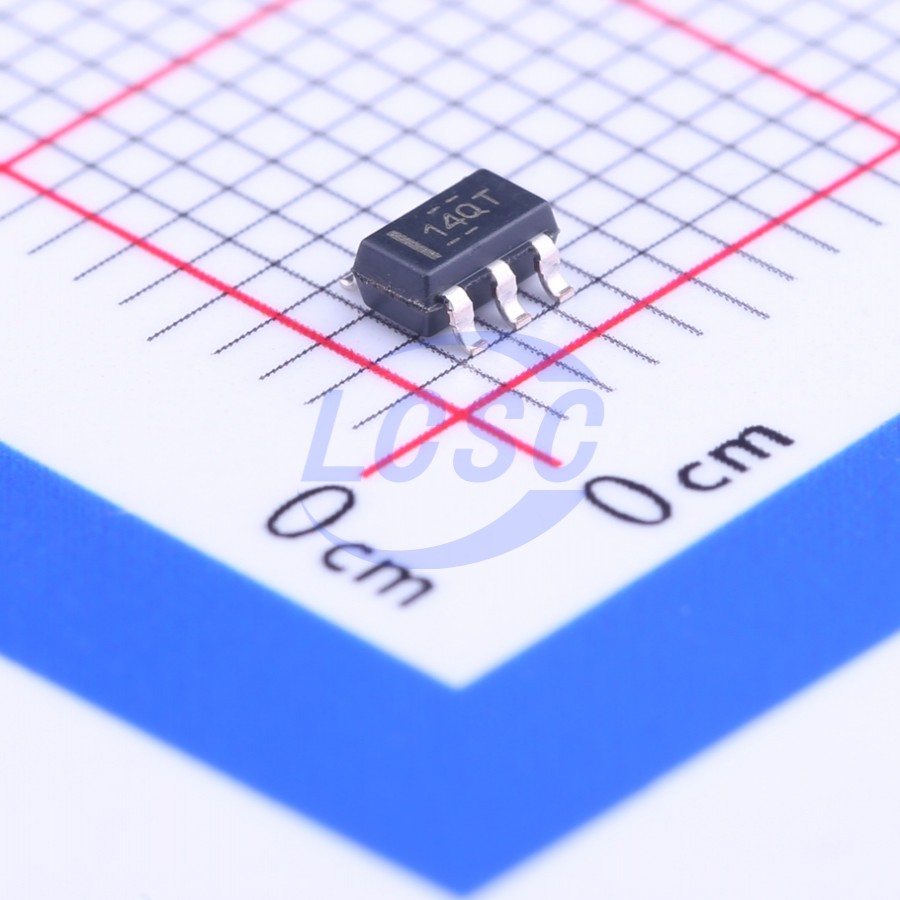

TLV170IDBVT

The TLVx170 series are EMI-resistant, 36V single-supply, low-noise op amps with 0.0002% THD+N at 1kHz, capable of operating over a supply voltage range of 2.7V (±1.35V) to 36V (±18V). These characteristics, combined with low noise and ultra-high PSRR, make the single-channel TLV170, dual-channel TLV2170, and quad-channel TLV4170 ideal choices for millivolt-level signal amplification. The TLVx170 series devices also feature excellent offset, drift, and bandwidth, along with low quiescent current. Unlike most op amps that are specified for only a single supply voltage, the TLVx170 series op amps are rated to operate across a voltage range of 2.7V to 36V, and input signal swings beyond the supply rails will not cause phase reversal. The TLVx170 series are also unity-gain stable precision op amps with a 200pF capacitive load, 1.2MHz bandwidth, and 0.4V/μs slew rate, making them well suited for current-to-voltage converters. Device inputs operate normally 100mV below the negative supply rail and within 2V of the positive supply rail, though full rail-to-rail input performance may be affected. The TLVx170 devices are rated for an operating temperature range of -40°C to +125°C.

Applications

• Bill counters
• AC-DC converters
• Tracking amplifiers in power modules
• Server power supplies
• Inverters
• Test equipment
• Battery-powered instrument inverter amplifiers, line drivers, or line receivers

Key features

• Supply voltage range: 2.7V to 36V, ±1.35V to ±18V
• Low noise: 22 nV/√Hz
• EMI-resistant input with RFI filtering
• Input range includes negative supply
• Unity-gain stable: 200pF capacitive load
• Rail-to-rail output
• Gain bandwidth: 1.2MHz
• Low quiescent current: 125μA per amplifier
• High common-mode rejection: 110dB
• Low bias current: 10pA (typical)
