TIDatasheet (PDF)

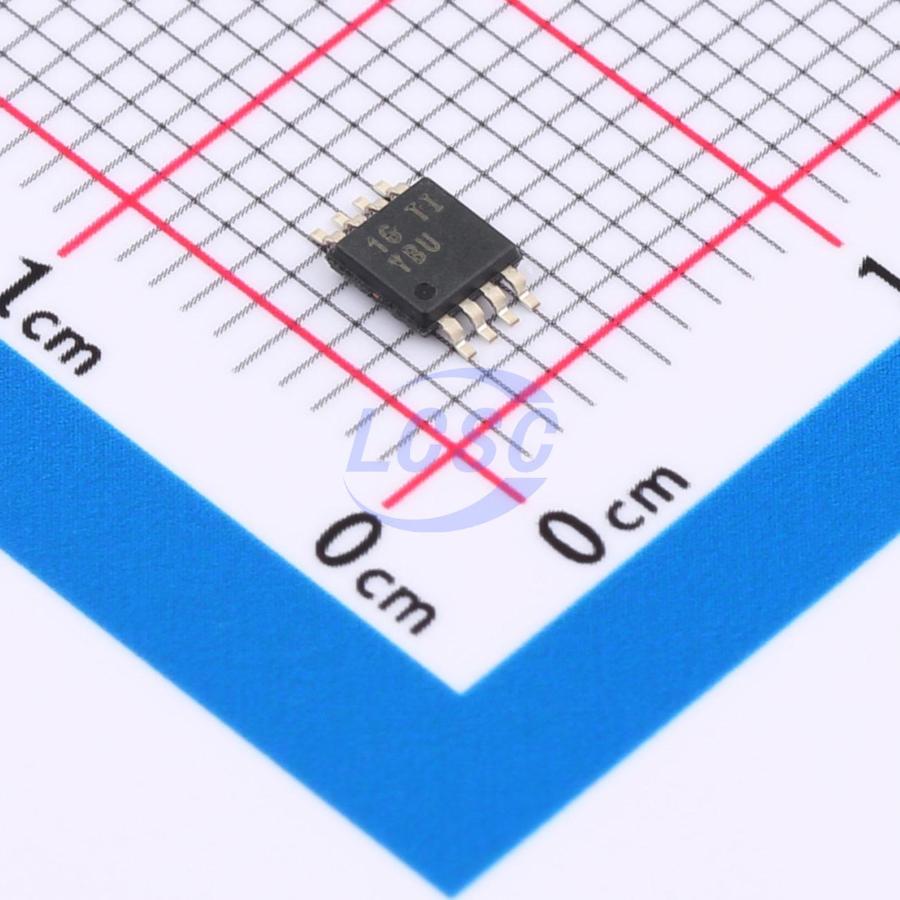

TLV2362IDGKR
2 1mV 3V/us 85dB 20nA 1.75mA 7MHz VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
High-performance low-voltage operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV2362IDGKR
- Store part #
- C1880164
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1880164
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.05 | ₹129.05 |
| 10+ | ₹125.90 | ₹1,259.00 |
| 30+ | ₹123.59 | ₹3,707.70 |
| 100+ | ₹121.50 | ₹12,150.00 |
1 × ₹129.05
₹129.05
excl. GST
₹152.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2362IDGKR
₹129.05 for 1 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 3V/us
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 1.75mA
- Gain Bandwidth Product
- 7MHz
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -2.5V~-1V;1V~2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
The TLV236x devices are high-performance dual operational amplifiers built using an original bipolar process. These devices can be operated at a very low supply voltage (±1 V), while maintaining a wide output swing. The TLV236x devices offer a dramatically improved dynamic range of signal conditioning in low-voltage systems. The TLV236x devices also provide higher performance than other general-purpose operational amplifiers by combining higher unity-gain bandwidth and faster slew rate. With their low distortion and low-noise performance, these devices are well suited for audio applications.
Applications
- Audio applications
Key features
- Low Supply-Voltage Operation: VCC = ±1 V Min
- Wide Bandwidth: 7 MHz Typ at VCC± = ±2.5 V
- High Slew Rate: 3 V/μs Typ at VCC± = ±2.5 V
- Wide Output Voltage Swing: ±2.4 V Typ at VCC± = ±2.5 V, RL = 10 kΩ
- Low Noise: 8 nV/√Hz Typ at f = 1 kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV722IDGKR#C544514TI · VSSOP-8 | TI | VSSOP-8 | 10 | ₹131.70 · 10 in stock | View |
 | LMV722MMX/NOPB#C2870598TI · VSSOP-8 | TI | VSSOP-8 | 193 | ₹254.98 · 193 in stock | View |
 | OPA2322AIDGKR#C2058180TI · VSSOP-8 | TI | VSSOP-8 | 166 | ₹484.99 · 166 in stock | View |
 | LMV722QDGKRQ1#C2057734TI · VSSOP-8 | TI | VSSOP-8 | 4 | ₹216.60 · 4 in stock | View |
 | LMV852MMX/NOPB#C2058424TI · VSSOP-8 | TI | VSSOP-8 | 57 | ₹343.37 · 57 in stock | View |
