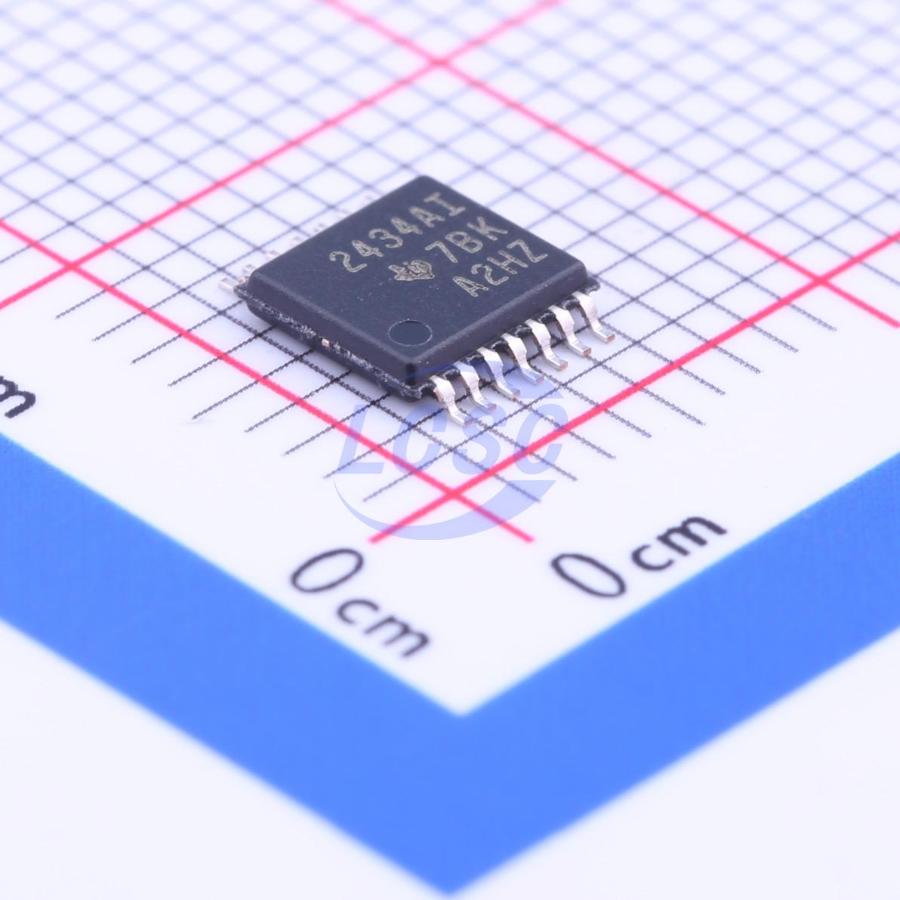

TLV2434AIPWR

50mA Four channels 300uV 0.25V/us 83dB 1pA 115uA 550kHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TLV2434AIPWR
Store part #: C205968
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C205968

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹309.42	₹309.42
10+	₹302.41	₹3,024.10
30+	₹289.02	₹8,670.60
100+	₹284.34	₹28,434.00

Quantity (min 1)

1 × ₹309.42

₹309.42

excl. GST

₹365.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLV2434AIPWR

₹309.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 300uV
Slew Rate: 0.25V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 83dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 115uA
Gain Bandwidth Product: 550kHz
Features: Reverse-phase input protection
Input Voltage Noise Density: 22nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~10V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The TLV243x and TLV243xA are low-voltage operational amplifier. The common-mode input voltage range for each device is extended over the typical CMOS amplifiers making them suitable for a wide range of applications. In addition, these devices do not phase invert when the common-mode input is driven to the supply rails. This satisfies most design requirements without paying a premium for rail-to-rail input performance. They also exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. This family is fully characterized at 3-V and 5-V supplies and is optimized for low-voltage operation. The TLV243x only requires 100 μA (typ) of supply current per channel, making it ideal for battery-powered applications. The TLV243x also has increased output drive over previous rail-to-rail operational amplifiers and can drive 600-Ω loads for telecom applications. The TLV243x, exhibiting high input impedance and low noise, is excellent for small-signal conditioning for high-impedance sources, such as piezoelectric transducers. Because of the micropower dissipation levels and low-voltage operation, these devices work well in hand-held monitoring and remote-sensing applications. In addition, the rail-to-rail output feature with single- or split-supplies makes this family a great choice when interfacing with analog-to-digital converters (ADCs). For precision applications, the TLV243xA is available and has a maximum input offset voltage of 950 μν.

Key features

Output Swing Includes Both Supply Rails
Extended Common-Mode Input Voltage Range... 0 V to 4.5 V (Min) with 5-V Single Supply
No Phase Inversion
Low Noise... 18 nV/√Hz Typ at f = 1 kHz
Low Input Offset Voltage 950 μν Max at TA = 25°C (TLV243xA)
Low Input Bias Current... 1 pA Typ
Very Low Supply Current... 125 μA Per Channel Max
600-Ω Output Drive
Macromodel Included
Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
