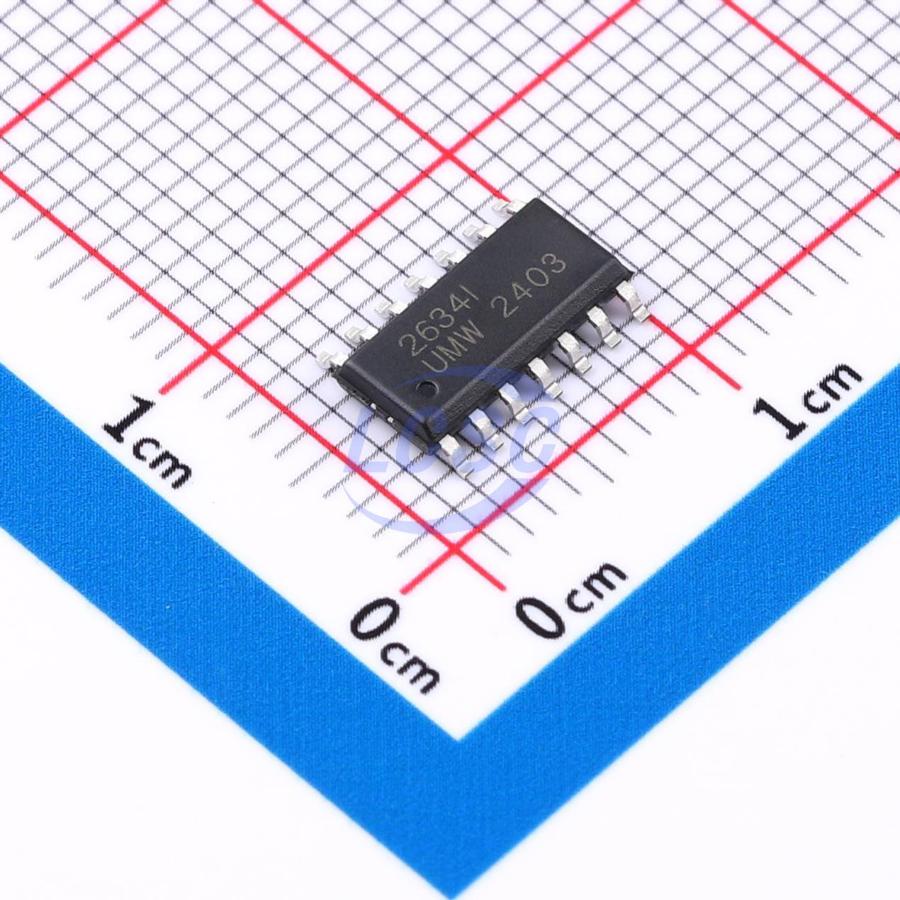

TLV2634ID(UMW)
28mA 4 5.2mV 6V/us 100dB 1pA 9MHz 730uA Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Low-Power Wide Bandwidth Single Supply Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TLV2634ID(UMW)
- Store part #
- C22373386
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C22373386
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.16 | ₹235.80 |
| 50+ | ₹37.06 | ₹1,853.00 |
| 150+ | ₹32.72 | ₹4,908.00 |
| 500+ | ₹27.32 | ₹13,660.00 |
| 2,500+ | ₹24.91 | ₹62,275.00 |
| 5,000+ | ₹23.47 | ₹1,17,350.00 |
5 × ₹47.16
₹235.80
excl. GST
₹278.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2634ID(UMW)
₹235.80 for 5 + GST
Specifications
- Output Current
- 28mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5.2mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Gain Bandwidth Product
- 9MHz
- Quiescent Current
- 730uA
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.288 g
Overview
The UMW TLV263x single-supply op amp provides rail-to-rail output with an input range that includes ground. The device extends operation down to a 2.7V minimum supply voltage over the industrial temperature range (−40°C to 125°C), while adding rail-to-rail output swing. The UMW TLV263x delivers 9 MHz gain bandwidth product while consuming only 730μA of supply current. The maximum recommended supply voltage of 5.5V, combined with the 2.7V minimum, allows the device to be powered from a lithium-ion battery. Its combination of wide bandwidth, low noise, and low distortion makes it ideal for high-speed, high-resolution data converter applications. The input range, which includes ground, allows direct interfacing with ground-referenced systems.
Key features
- Rail-to-rail output
- Input common-mode range includes ground
- Gain-bandwidth product: 9 MHz
- Supply current: 730μA/channel
- Available in single, dual, and quad versions
- Ultra-low power shutdown mode: IDD(SHDN) = 4μA/channel
- Specified operating temperature range: -40°C to 125°C (industrial grade)
- Supply voltage range: 2.7 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV724M(UMW)#C18207576UMW · SOP-14 | UMW | SOP-14 | 7,066 | ₹38.66 · 7,066 in stock | View |
