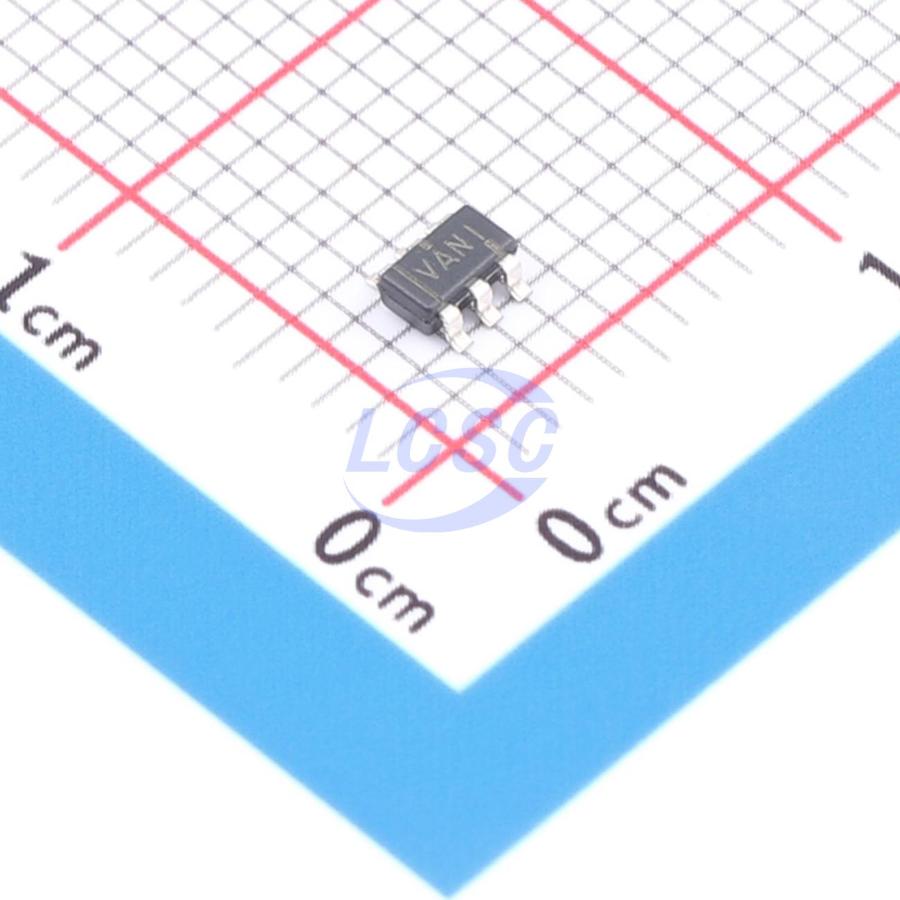

TLV2760IDBVR

The TLV276x single supply operational amplifiers provide 500 kHz bandwidth from only 20 μA while operating down to 1.8 V over the industrial temperature range. The maximum recommended supply voltage is 3.6 V, which allows the devices to be operated from (± 1.8 V supplies down to ± 0.9 V.) two AA or AAA cells. The devices have been characterized at 1.8 V (end of life of 2 AA(A) cells) and at 2.4 V (nominal voltage of 2 NiCd/NiMH cells). The TLV276x have rail-to-rail input and output capability which is a necessity at 1.8 V. The low supply current is coupled with extremely low input bias currents enabling them to be used with mega-ohm resistors. Low shutdown current of only 10 nA make these devices ideal for low frequency measurement applications desiring long active battery life.

Key features

• Low Supply Voltage: 1.8 V to 3.6 V
• Very Low Supply Current: 20 μA (per channel)
• Ultralow Power Shut - Down Mode: IDD(SHDN) = 10 nA/Channel
• CMOS Rail - to - Rail Input/Output
• Input Common - Mode Voltage Range: - 0.2 V to VDD + 0.2 V
• Input Offset Voltage: 550 μV
• Wide Bandwidth: 500 kHz
• Slew Rate: 0.20 V/μs
• Specified Temperature Range: 0°C to 70°C (Commercial Grade); - 40°C to 85°C (Industrial Grade)
• Ultrasmall Packaging: 5 or 6 Pin SOT - 23 (TLV2760/1); 8 or 10 Pin MSOP (TLV2762/3)
