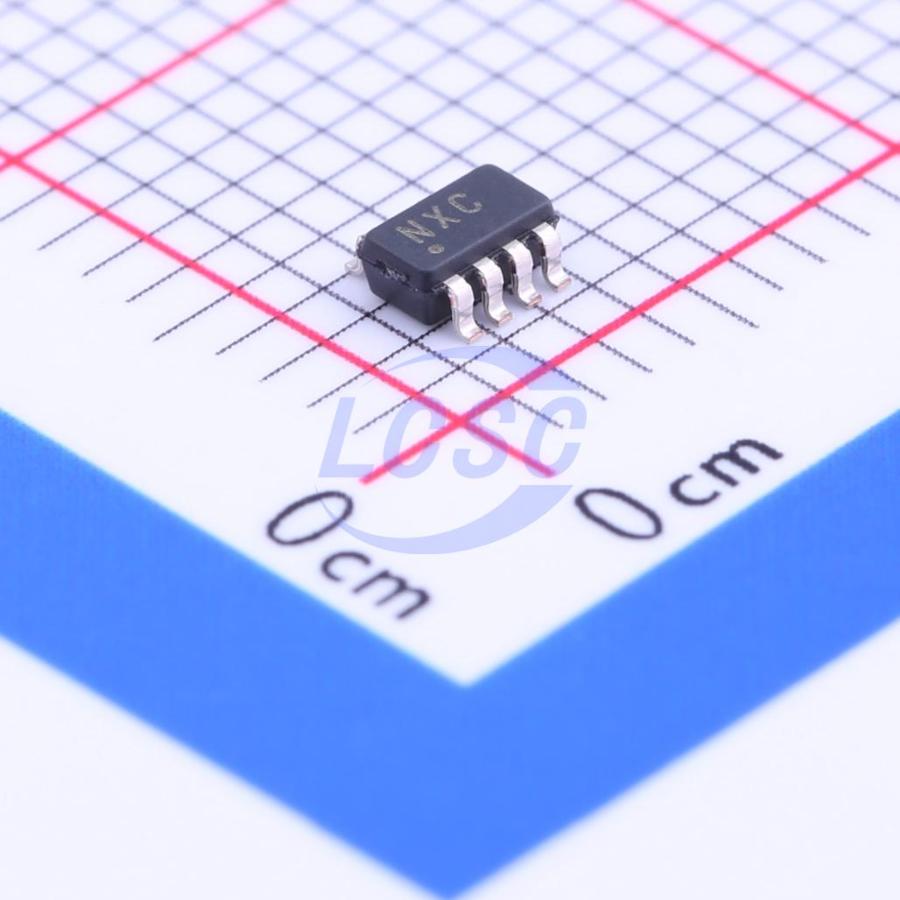

TLV3502AIDCNR
2 3.2mA 1mV Rail-to-Rail Input, Rail-to-Rail Output SOT-23-8 Comparators RoHS
4.5ns Rail-to-Rail, High-Speed Comparator in Microsize Packages
- Manufacturer
- TI
- Manufacturer part #
- TLV3502AIDCNR
- Store part #
- C48618
- Package / case
- SOT-23-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,368 in stock
#C48618
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹425.05 | ₹425.05 |
| 10+ | ₹363.49 | ₹3,634.90 |
| 30+ | ₹324.98 | ₹9,749.40 |
| 100+ | ₹257.13 | ₹25,713.00 |
| 500+ | ₹239.28 | ₹1,19,640.00 |
| 1,000+ | ₹231.45 | ₹2,31,450.00 |
1 × ₹425.05
₹425.05
excl. GST
₹501.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV3502AIDCNR
₹425.05 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 2pA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Ib - Input Bias Current
- 2pA
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 55dB
- Propagation Delay(tpd)
- 4.5ns
- Input Hysteresis Voltage (Vhys)
- 6mV
- Quiescent Current(Iq)
- 3.2mA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The TLV350x family of push-pull output comparators feature a fast 4.5ns propagation delay and operation from +2.7V to +5.5V. Beyond-the-rails input common-mode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic. Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in SOT23-6 and SO-8 packages. The dual (TLV3502) comes in the SOT23-8 and SO-8 packages.
Applications
- AUTOMATIC TEST EQUIPMENT
- WIRELESS BASE STATIONS
- THRESHOLD DETECTOR
- ZERO-CROSSING DETECTOR
- WINDOW COMPARATOR
Key features
- HIGH SPEED: 4.5ns
- RAIL-TO-RAIL I/O SUPPLY VOLTAGE: +2.7V to +5.5V
- PUSH-PULL CMOS OUTPUT STAGE SHUTDOWN (TLV3501 only)
- MICRO PACKAGES: SOT23-6 (single) SOT23-8 (dual)
- LOW SUPPLY CURRENT: 3.2mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX3502S#C19269867Wuxi Maxinmicro · SOP-8L | Wuxi Maxinmicro | SOP-8L | 24,275 | ₹43.01 · 24,275 in stock | View |
 | TLV3502AIDCNT#C2877585TI · SOT-23-8 | TI | SOT-23-8 | 105 | ₹321.53 · 105 in stock | View |
