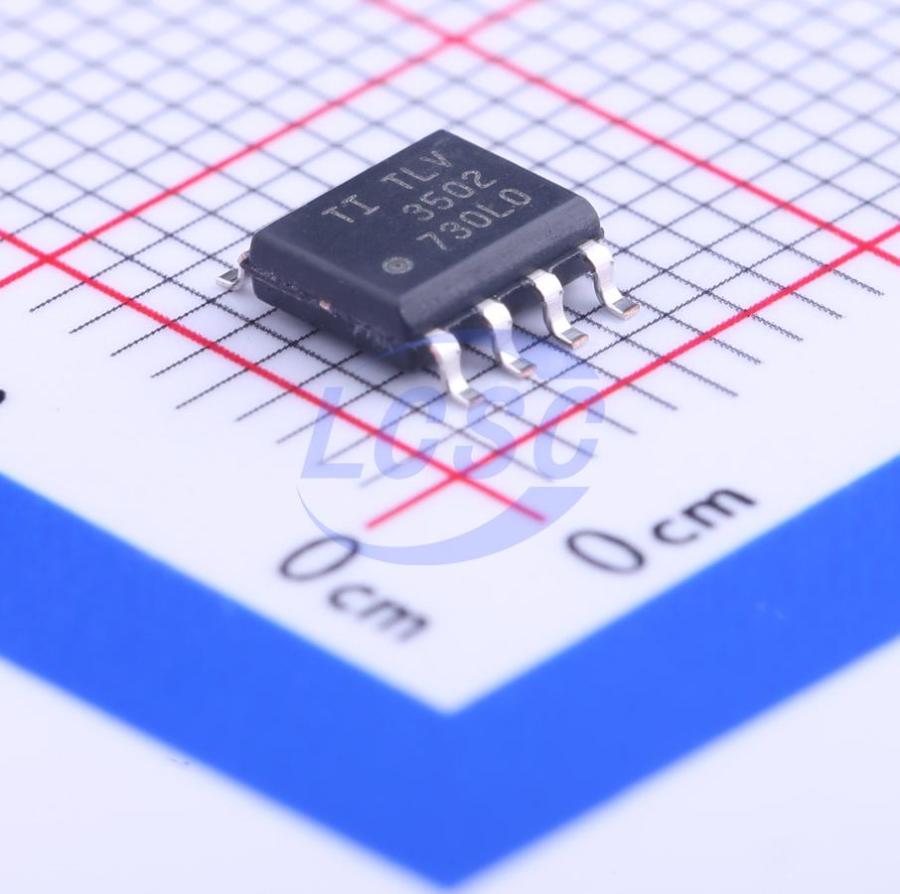

TLV3502AIDR
2 3.2mA 1mV Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Comparators RoHS
4.5-ns, Rail-to-Rail, High-Speed Comparator in Microsize Packages
- Manufacturer
- TI
- Manufacturer part #
- TLV3502AIDR
- Store part #
- C131165
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,972 in stock
#C131165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹251.08 | ₹251.08 |
| 10+ | ₹224.20 | ₹2,242.00 |
| 30+ | ₹205.12 | ₹6,153.60 |
| 100+ | ₹182.12 | ₹18,212.00 |
| 500+ | ₹174.11 | ₹87,055.00 |
| 1,000+ | ₹170.85 | ₹1,70,850.00 |
1 × ₹251.08
₹251.08
excl. GST
₹296.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV3502AIDR
₹251.08 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 2pA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+125℃
- Features
- Overvoltage protection
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 4.5ns
- Input Hysteresis Voltage (Vhys)
- 6mV
- Quiescent Current(Iq)
- 3.2mA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Response Time (tr)
- 1.5ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TLV350x family of push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input common-mode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic. Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in 6-pin SOT-23 and 8-pin SO packages. The dual (TLV3502) comes in the 8-pin SOT-23 and 8-pin SO packages.
Applications
- Automatic Test Equipment
- Wireless Base Stations
- Threshold Detectors
- Zero-Crossing Detectors
- Window Comparators
Key features
- High Speed: 4.5 ns
- Rail-to-Rail I/O Supply Voltage: 2.7 V to 5.5 V
- Push-Pull CMOS Output Stage Shutdown (TLV3501 Only)
- Micro Packages: 6-Pin SOT-23 (Single), 8-Pin SOT-23 (Dual)
- Low Supply Current: 3.2 mA
