TIDatasheet (PDF)

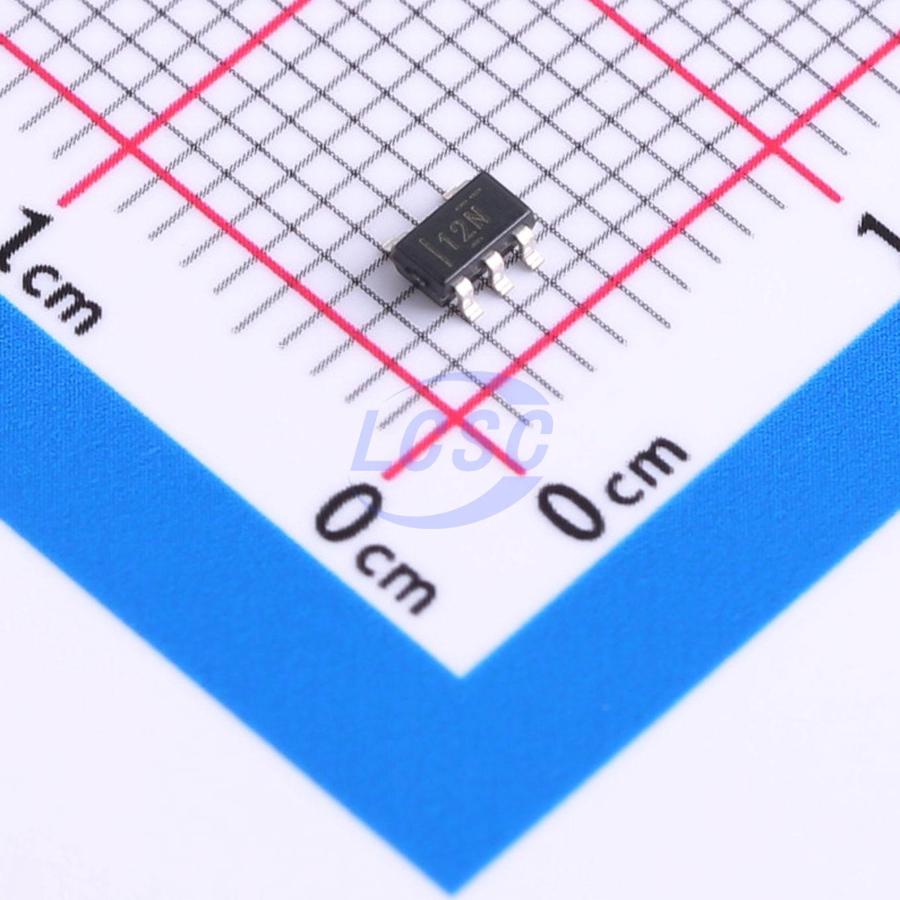

TLV379IDBVR
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS3 CompliantActive
Low-voltage, rail-to-rail I/O, cost-optimized operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV379IDBVR
- Store part #
- C2877811
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C2877811
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.09 | ₹69.09 |
1 × ₹69.09
₹69.09
excl. GST
₹81.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV379IDBVR
₹69.09 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 4uA
- Gain Bandwidth Product
- 28kHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 83nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV379 series single-channel, dual-channel, and quad-channel op amps are cost-optimized, low-voltage, micropower amplifiers. Operating from supply voltages as low as 1.8V (±0.9V) with an extremely low quiescent current of 4μA per channel, the device series is optimized for power-sensitive applications. In addition, the TLV379 series features rail-to-rail input and output, making it suitable for virtually all single-supply applications.
Applications
- Mobile power supplies
- Solar inverters
- Low-power motor control
- Battery-powered instruments
- Portable devices
- Medical instruments
- Handheld test equipment
Key features
- Cost-optimized precision amplifier
- Micropower: 4μA (typical)
- Low offset voltage: 0.8mV (typical)
- Rail-to-rail input and output
- Unity-gain stable
- Wide supply voltage range: 1.8V to 5.5V
- Miniature packages: 5-pin SC70, 5-pin SOT-23, 8-pin SOIC, 14-pin TSSOP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GS6011YA-TR#C52211861Gainsil · SOT-23-5 | Gainsil | SOT-23-5 | 2,135 | ₹17.66 · 2,135 in stock | View |
| LMV321B-TR#C52211934Gainsil · SOT23-5 | Gainsil | SOT23-5 | 2,185 | ₹11.99 · 2,185 in stock | View | |
 | TLV9001UIDBVR#C544301TI · SOT-23-5 | TI | SOT-23-5 | 1,274 | ₹62.66 · 1,274 in stock | View |
 | TLV9001IDBVR#C398363TI · SOT-23-5 | TI | SOT-23-5 | 39,760 | ₹13.07 · 39,760 in stock | View |
 | LMV321AIDBVRG#C47344212HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 5,350 | ₹6.62 · 5,350 in stock | View |
