TIDatasheet (PDF)

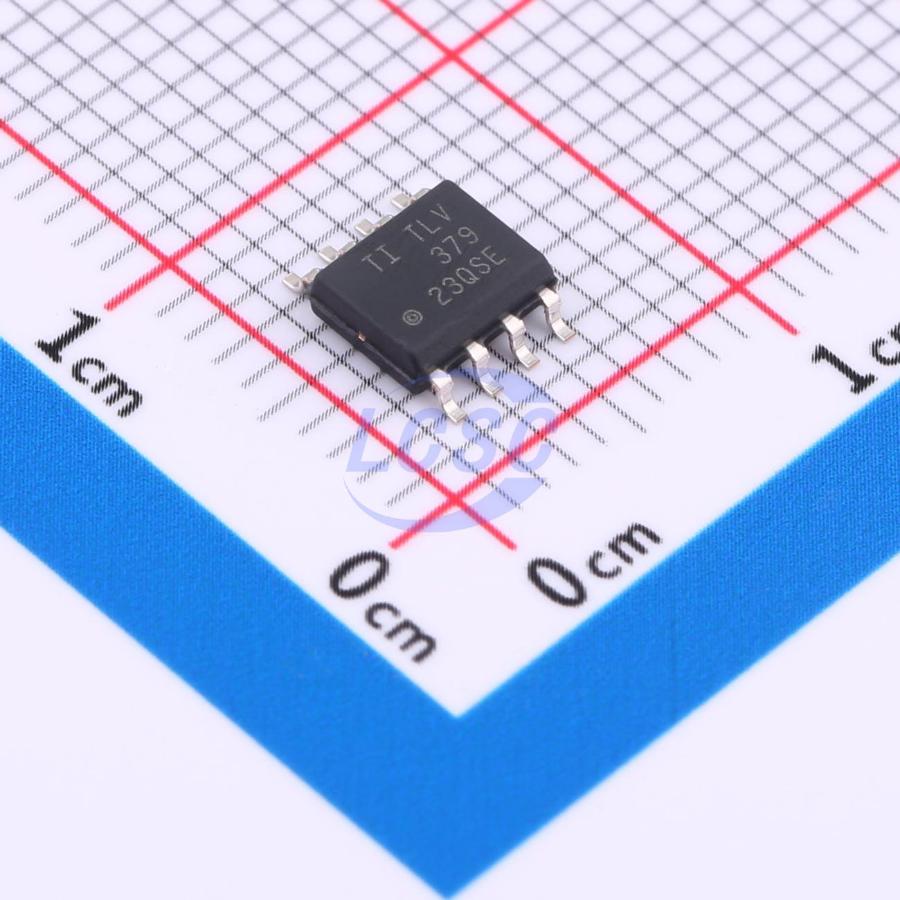

TLV379IDR
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOIC-8
SOIC-8ROHS3 CompliantActive
Low-voltage, rail-to-rail I/O, cost-optimized operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV379IDR
- Store part #
- C2058292
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2058292
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.02 | ₹72.02 |
| 10+ | ₹57.58 | ₹575.80 |
| 30+ | ₹50.46 | ₹1,513.80 |
| 100+ | ₹43.34 | ₹4,334.00 |
| 500+ | ₹39.07 | ₹19,535.00 |
| 1,000+ | ₹36.83 | ₹36,830.00 |
1 × ₹72.02
₹72.02
excl. GST
₹84.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV379IDR
₹72.02 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 4uA
- Gain Bandwidth Product
- 28kHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 83nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The TLV379 series single-channel, dual-channel, and quad-channel op amps are cost-optimized, low-voltage, micropower amplifiers. Operating from supply voltages as low as 1.8V (±0.9V) with an extremely low quiescent current of 4μA per channel, the device series is optimized for power-sensitive applications. In addition, the TLV379 series features rail-to-rail input and output, making it suitable for virtually all single-supply applications.
Applications
- Mobile power supplies
- Solar inverters
- Low-power motor control
- Battery-powered instruments
- Portable devices
- Medical instruments
- Handheld test equipment
Key features
- Cost-optimized precision amplifier
- Micropower: 4μA (typical)
- Low offset voltage: 0.8mV (typical)
- Rail-to-rail input and output
- Unity-gain stable
- Wide supply voltage range: 1.8V to 5.5V
- Miniature packages: 5-pin SC70, 5-pin SOT-23, 8-pin SOIC, 14-pin TSSOP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS379SR#C2922337COSINE · SOP-8 | COSINE | SOP-8 | 275 | ₹22.72 · 275 in stock | View |
 | MCP6001T-I/SN-TUDI#C36533681Tudi · SOP-8 | Tudi | SOP-8 | 420 | ₹50.10 · 420 in stock | View |
 | HX2342-S#C22392187ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 480 | ₹37.90 · 480 in stock | View |
 | LTC8581XS8/R8#C5447204Linearin · SOIC-8L | Linearin | SOIC-8L | 1,139 | ₹39.73 · 1,139 in stock | View |
 | HAD8629ARZ-REEL7#C22392683HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 46 | ₹128.52 · 46 in stock | View |
