TIDatasheet (PDF)

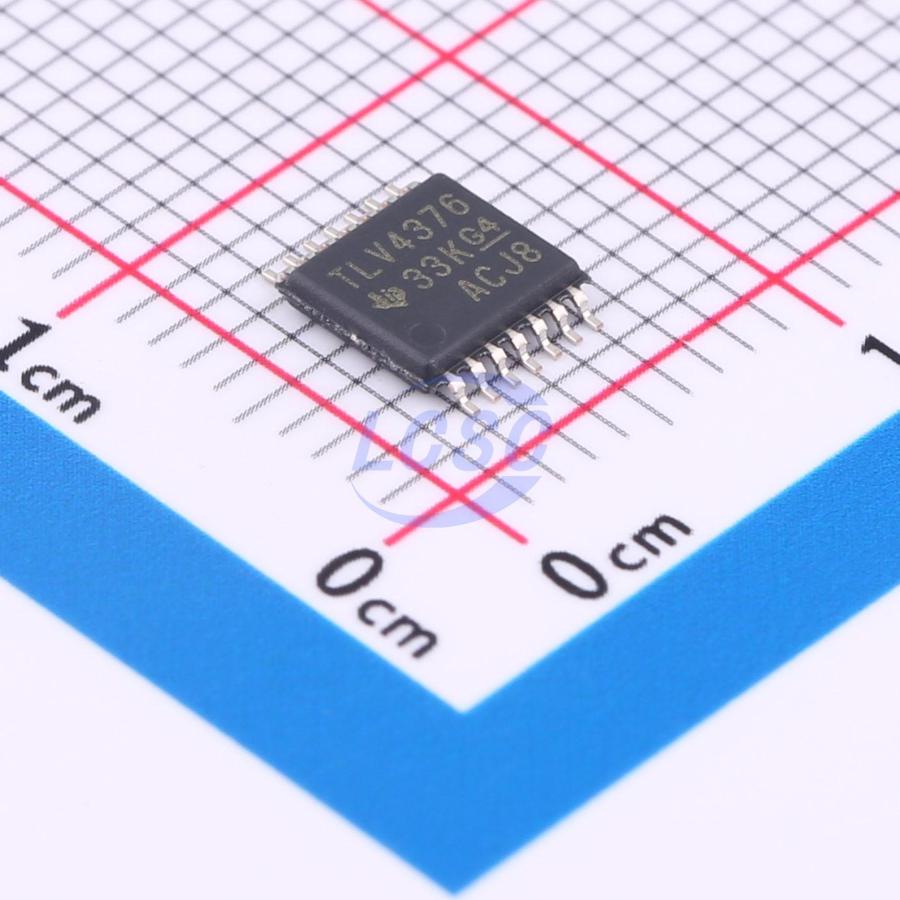

TLV4376IPWR
30mA 4 50uV 2V/us 0.3pA 72dB 5.5MHz 815uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TLV4376IPWR
- Store part #
- C882742
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C882742
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹466.36 | ₹466.36 |
| 10+ | ₹399.39 | ₹3,993.90 |
| 30+ | ₹359.60 | ₹10,788.00 |
| 100+ | ₹319.39 | ₹31,939.00 |
| 500+ | ₹300.69 | ₹1,50,345.00 |
| 1,000+ | ₹292.42 | ₹2,92,420.00 |
1 × ₹466.36
₹466.36
excl. GST
₹550.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLV4376IPWR
₹466.36 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 0.2pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.3pA
- Common Mode Rejection Ratio(CMRR)
- 72dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Gain Bandwidth Product
- 5.5MHz
- Quiescent Current
- 815uA
- Features
- ESD protection;Reverse-phase input protection
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The TLVx376 series is a new generation of low-noise op-amps with e-trim technology, delivering excellent DC accuracy and AC performance. These devices feature rail-to-rail input and output, low offset (125μV maximum), low noise (8nV/√Hz), 1.2mA quiescent current (maximum), 5.5MHz bandwidth, and a 2V/μs slew rate, making them ideal for output current sensing resistors and op-amps in precision and portable applications. In addition, these devices support a wide supply voltage range and excellent PSRR, making them well suited for battery-powered applications without regulation.
Applications
- Solar inverters
- Medical devices
- ADC buffers
- Handheld test equipment
- Active filter sensor conditioning
Key features
- Low noise: 8nV/√Hz at 1kHz
- 0.1Hz to 10Hz noise: 1.6μVPP
- Quiescent current: 815μA (typical)
- Low offset voltage (typical): single and dual versions: 40μV; quad version: 50μV
- Gain bandwidth product: 5.5MHz
- Rail-to-rail input and output
- Single-supply operation
- Supply voltage: 2.2V to 5.5V
- Industry-standard packages: SOT-23, SOIC, VSSOP, and TSSOP
