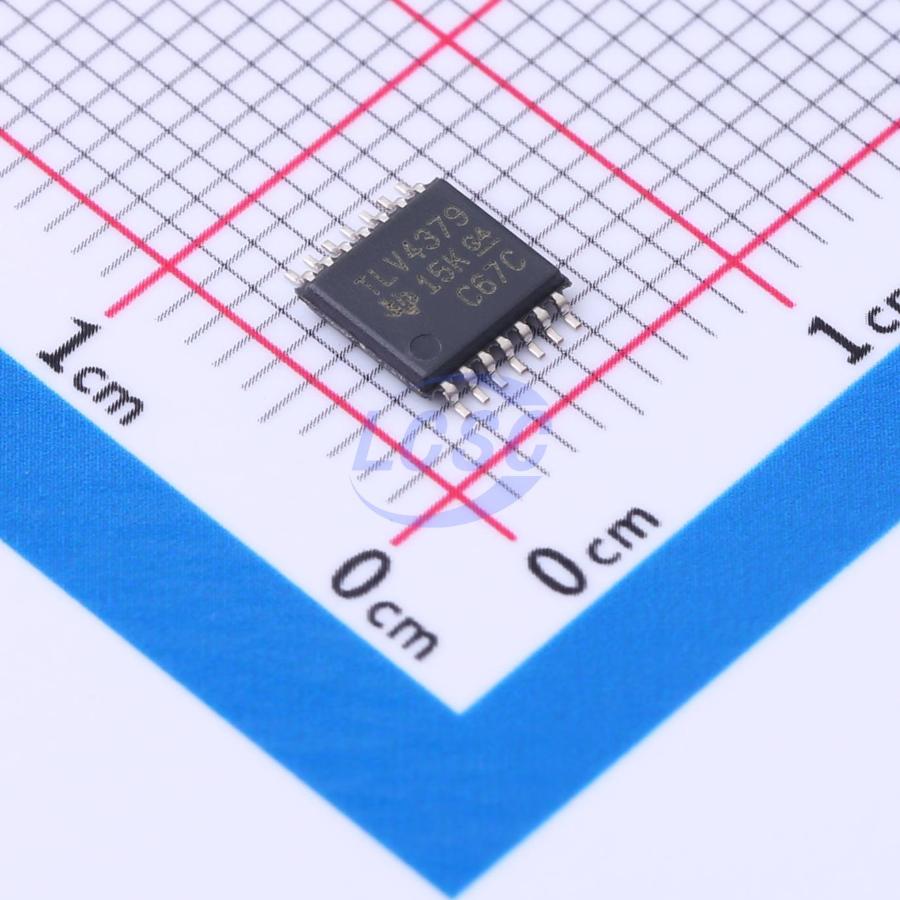

TLV4379IPWR

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14

TSSOP-14ROHS3 CompliantActive

Low-voltage, rail-to-rail I/O, cost-optimized operational amplifier

Manufacturer: TI
Manufacturer part #: TLV4379IPWR
Store part #: C2057472
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

22 in stock

#C2057472

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹166.66	₹166.66
10+	₹146.97	₹1,469.70
30+	₹132.96	₹3,988.80
100+	₹120.18	₹12,018.00
500+	₹114.29	₹57,145.00
1,000+	₹112.06	₹1,12,060.00

Quantity (min 1)

1 × ₹166.66

₹166.66

excl. GST

₹196.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLV4379IPWR

₹166.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 5mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 600V/ms
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 12uA
Gain Bandwidth Product: 28kHz
Features: ESD protection
Input Voltage Noise Density: 83nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

The TLV379 series single-channel, dual-channel, and quad-channel op amps are cost-optimized, low-voltage, micropower amplifiers. Operating from supply voltages as low as 1.8V (±0.9V) with an extremely low quiescent current of 4μA per channel, the device series is optimized for power-sensitive applications. In addition, the TLV379 series features rail-to-rail input and output, making it suitable for virtually all single-supply applications.

Applications

Mobile power supplies
Solar inverters
Low-power motor control
Battery-powered instruments
Portable devices
Medical instruments
Handheld test equipment

Key features

Cost-optimized precision amplifier
Micropower: 4μA (typical)
Low offset voltage: 0.8mV (typical)
Rail-to-rail input and output
Unity-gain stable
Wide supply voltage range: 1.8V to 5.5V
Miniature packages: 5-pin SC70, 5-pin SOT-23, 8-pin SOIC, 14-pin TSSOP

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV9004QPWRQ1#C4367574TI · TSSOP-14	TI	TSSOP-14	301	₹113.83 · 301 in stock	View
LMV324AIPWRG#C49451909HANSCHIP semiconductor · TSSOP-14	HANSCHIP semiconductor	TSSOP-14	670	₹12.36 · 670 in stock	View
GS6014A-TR#C52211868Gainsil · TSSOP-14	Gainsil	TSSOP-14	2,735	₹43.05 · 2,735 in stock	View
GS6014-TR#C52211870Gainsil · TSSOP-14	Gainsil	TSSOP-14	2,995	₹30.26 · 2,995 in stock	View
LMV324B-TR#C52211936Gainsil · TSSOP-14	Gainsil	TSSOP-14	2,690	₹32.15 · 2,690 in stock	View
