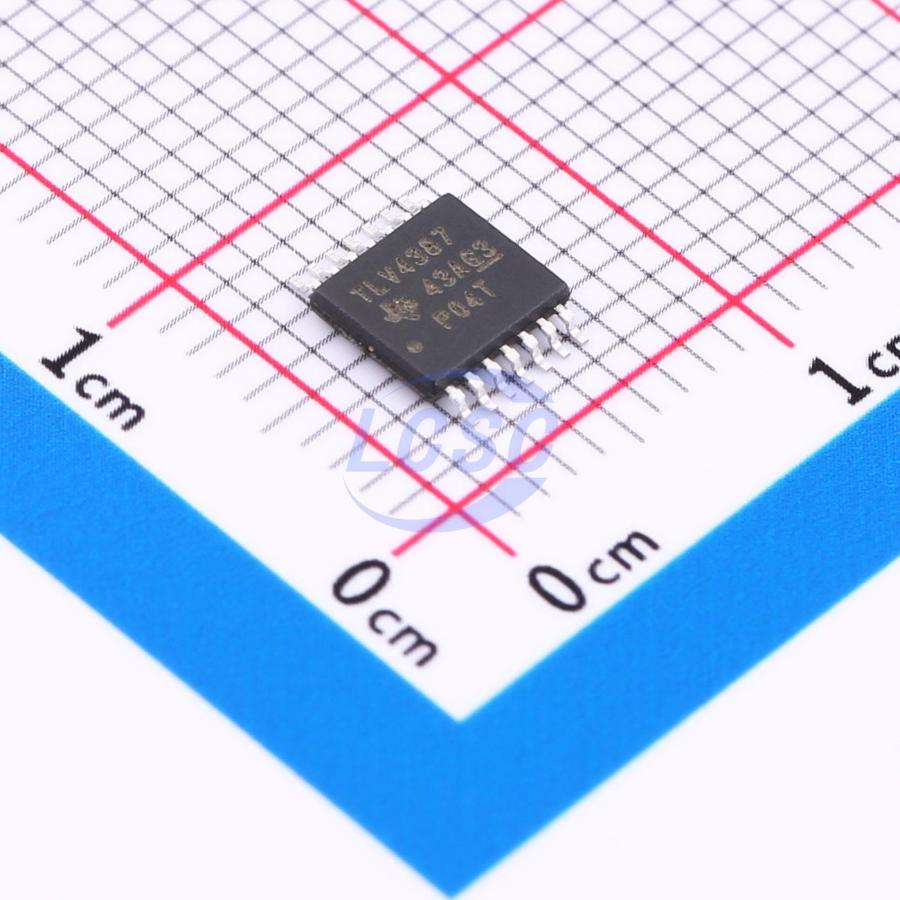

TLV4387PWR
15mA Four channels 5uV 2.8V/us 130dB 300pA 5.7MHz 570uA Rail-to-rail input TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
High-precision, zero temperature drift, low input bias current operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV4387PWR
- Store part #
- C32013385
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C32013385
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹547.52 | ₹547.52 |
| 10+ | ₹482.07 | ₹4,820.70 |
| 30+ | ₹448.59 | ₹13,457.70 |
| 100+ | ₹403.79 | ₹40,379.00 |
| 500+ | ₹387.71 | ₹1,93,855.00 |
| 1,000+ | ₹380.75 | ₹3,80,750.00 |
1 × ₹547.52
₹547.52
excl. GST
₹646.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV4387PWR
₹547.52 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 5uV
- Slew Rate
- 2.8V/us
- Input Offset Current(Ios)
- 700pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 300pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Gain Bandwidth Product
- 5.7MHz
- Quiescent Current
- 570uA
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Built-in compensation
- Input Voltage Noise Density
- 8.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail input
- Dual Supply
- -2.75V~-850mV;850mV~2.75V
- Single Supply
- 1.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.088 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA4387PWT#C4371111TI · TSSOP-14 | TI | TSSOP-14 | 27 | ₹448.88 · 27 in stock | View |
