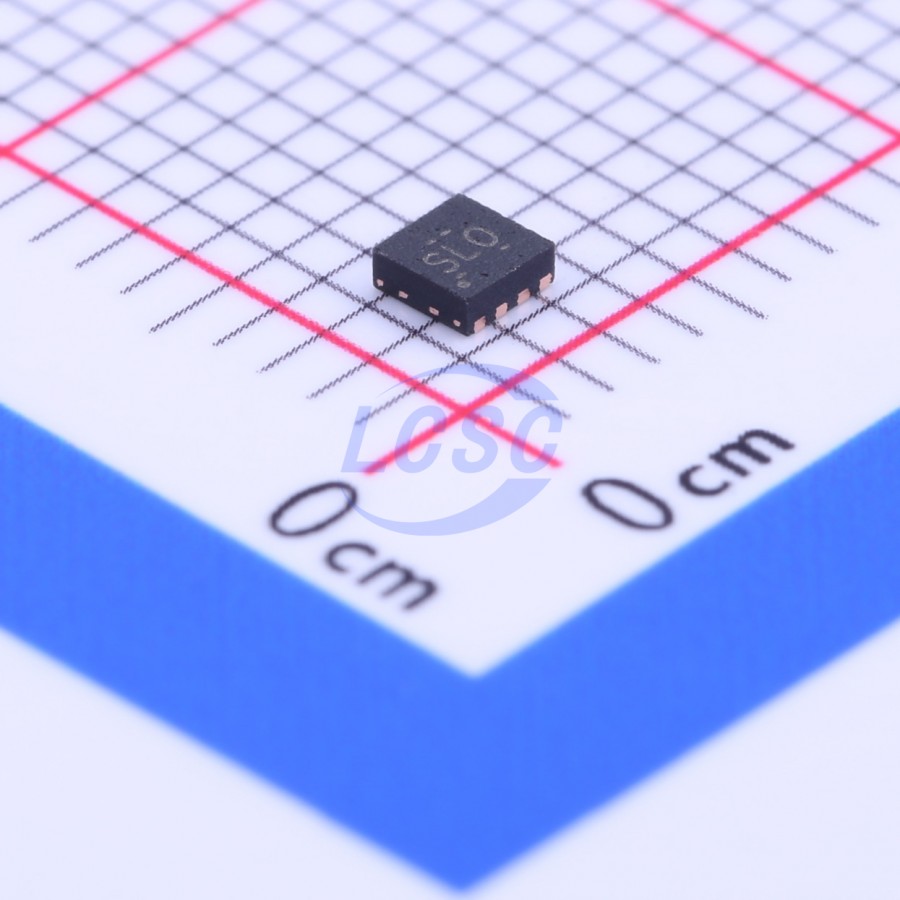

TLV62084DSGR

The TLV6208x series devices are compact step-down converters requiring minimal external components for a cost-effective solution. These synchronous step-down converters operate over an input voltage range of 2.5V/2.7V (2.5V for TLV62080, 2.7V for TLV62084x) to 6V. The TLV6208x devices are optimized for high-efficiency step-down conversion across a wide output current range. The converter operates in PWM mode under moderate-to-heavy load conditions and automatically enters power-save mode at light load currents, maintaining high efficiency throughout the entire load current range. To meet system power rail requirements, the internal compensation circuit supports a wide range of external output capacitor values. Leveraging the DCS-Control™ (Direct Control with Seamless transition to power-save mode) architecture, the device achieves excellent load transient performance and output voltage regulation accuracy. The device is available in a 2mm×2mm WSON package with a thermal pad.

Applications

• Battery-powered portable devices
• Point-of-load regulators
• PCs, notebooks, servers
• Set-top boxes
• SSD and memory power supplies

Key features

• DCS-Control™ architecture for fast transient response
• 2.5V to 6V input voltage range (TLV62080)
• 2.7V to 6V input voltage range (TLV62084 and TLV62084A)
• 100% duty cycle for minimum dropout
• Power save mode for light-load efficiency
• Output discharge function
• Power-good output
• Thermal shutdown
• 2mm×2mm, 8-pin WSON package
