MSKSEMI

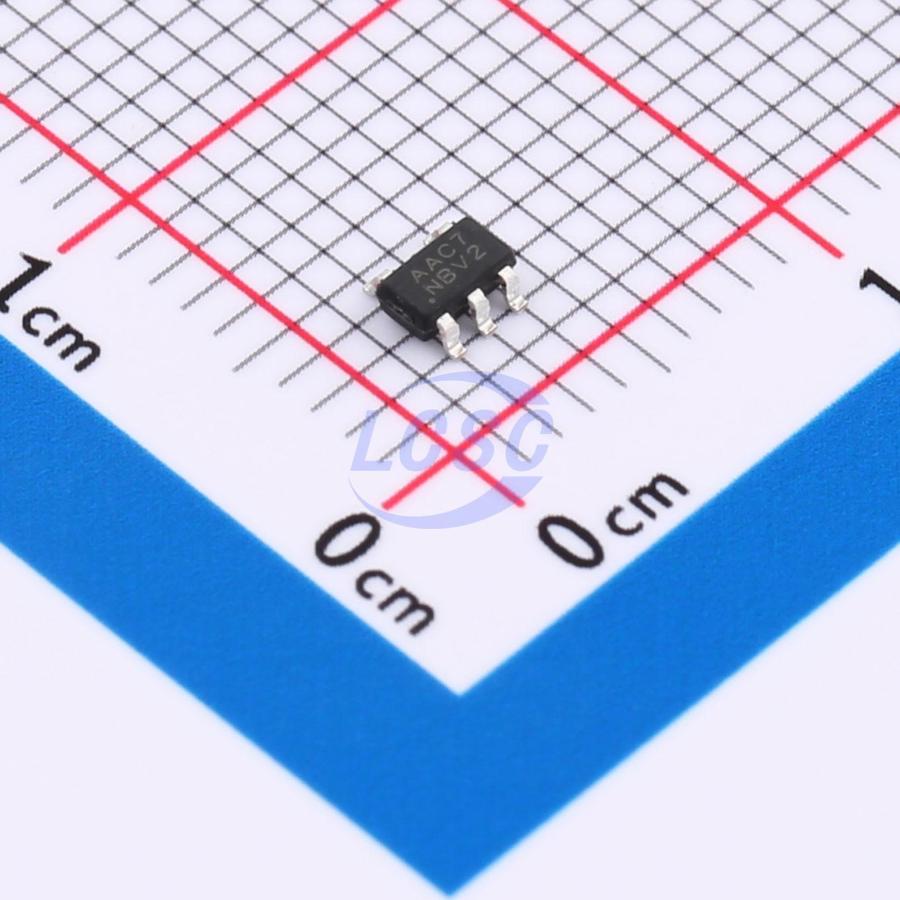

TLV70033DDCR-MS

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low Dropout (LDO) Converter

Manufacturer: MSKSEMI
Manufacturer part #: TLV70033DDCR-MS
Store part #: C30197541
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,000 in stock

#C30197541

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹11.88	₹59.40
50+	₹9.34	₹467.00
150+	₹8.08	₹1,212.00
500+	₹7.13	₹3,565.00
2,500+	₹6.36	₹15,900.00
5,000+	₹5.99	₹29,950.00

Quantity (min 5, multiples of 5)

5 × ₹11.88

₹59.40

excl. GST

₹70.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV70033DDCR-MS

₹59.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The TLV700XXDDCR-MS series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low quiescent current, and compact packaging. With a quiescent current as low as 2μA, the TLV700XXDDCR-MS is particularly well-suited for battery-powered and long-term standby applications, helping reduce system standby power consumption and effectively extending both standby time and battery life. The TLV700XXDDCR-MS is available in a version with an EN enable pin — pulling the EN pin low activates shutdown mode, reducing quiescent current to as low as 100nA (typical). The TLV700XXDDCR-MS series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP5907MFX-3.3/NOPB(MS)#C20538881MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,510	₹13.19 · 2,510 in stock	View
TLV70233DBVR(MS)#C20627176MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	635	₹11.48 · 635 in stock	View
XC6228D332VR-G(MS)#C20627177MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	935	₹10.81 · 935 in stock	View
RT9078-33GJ5-MS#C30197548MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	1,735	₹11.22 · 1,735 in stock	View
TLV70333DBVR-MS#C30197549MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	740	₹9.63 · 740 in stock	View
