MSKSEMI

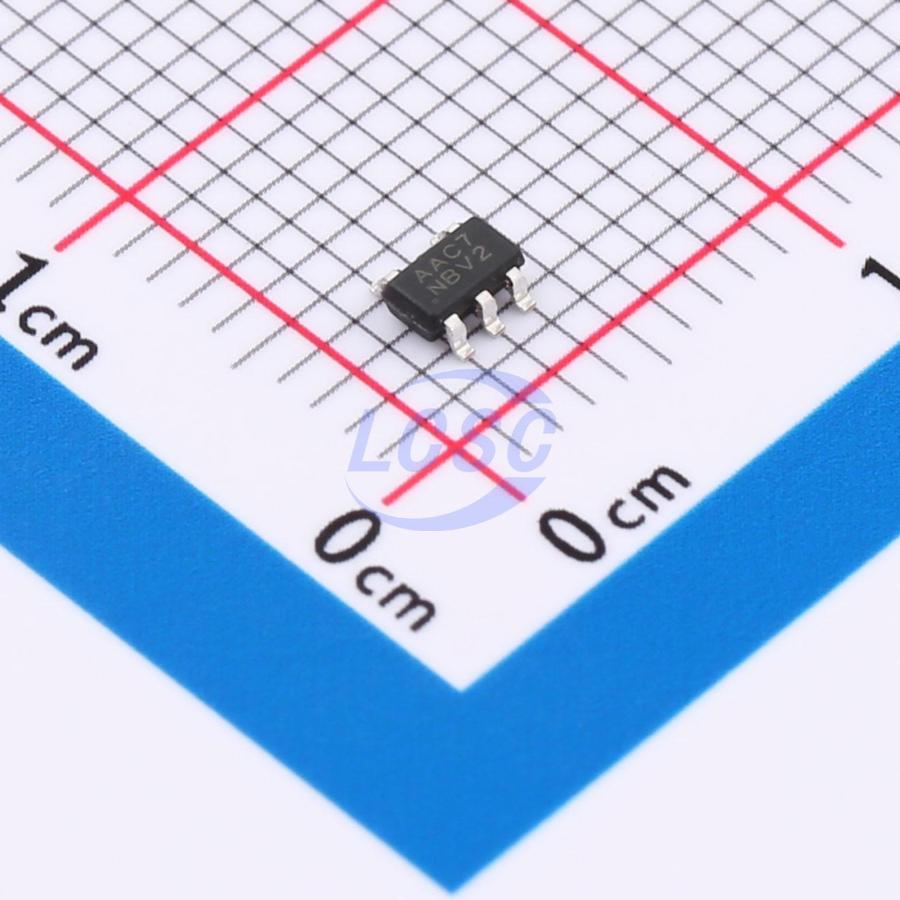

TLV70333DBVR-MS

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low Dropout (LDO) Converter

Manufacturer: MSKSEMI
Manufacturer part #: TLV70333DBVR-MS
Store part #: C30197549
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

740 in stock

#C30197549

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹9.63	₹96.30
100+	₹7.62	₹762.00
300+	₹6.62	₹1,986.00
1,000+	₹5.85	₹5,850.00
5,000+	₹5.25	₹26,250.00
10,000+	₹4.95	₹49,500.00

Quantity (min 10, multiples of 10)

10 × ₹9.63

₹96.30

excl. GST

₹113.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV70333DBVR-MS

₹96.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The TLV703XXDBVR-MS series is a family of LDO regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout, low quiescent current, and compact packaging. With a quiescent current as low as 2µA, the TLV703XXDBVR-MS is particularly well-suited for battery-powered and long-duration standby applications, helping reduce system standby power consumption and effectively extending standby time and battery life. An EN pin variant is available for the TLV703XXDBVR-MS; pulling the EN pin low enables shutdown mode, in which quiescent current drops to as low as 100nA (typical). The TLV703XXDBVR-MS series supports ceramic output capacitors and operates stably across a wide input voltage range of 1.2V to 5.5V and an output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
