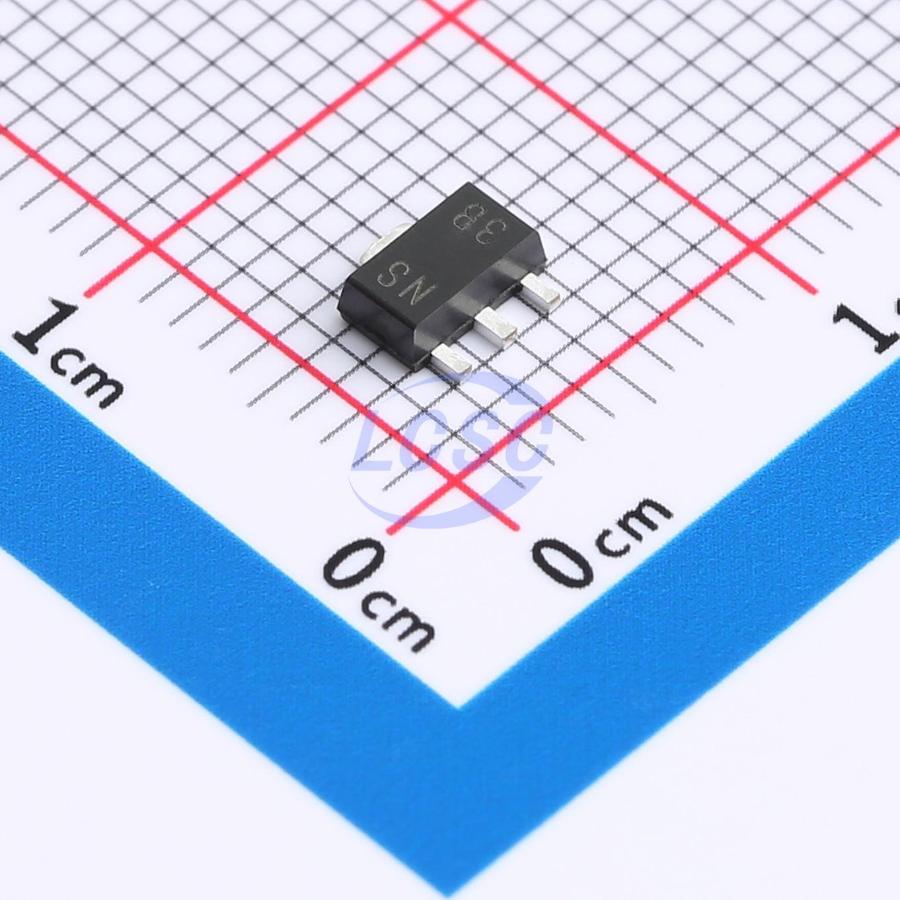

TLV70933PKR

Input voltage range: 2.5V to 30V Available output voltage options: – Fixed: 1.2V to 5V – Adjustable: 1.2V to 28V Output current: Up to 150mA Very-low IQ: 3.2μA at 150mA load current Stable with output capacitor ≥0.47μF Overcurrent protection Packages: – 4-pin SOT-89 (PK) (fixed configuration only) 5-pin SOT-23 (DBV) (both fixed and adjustable configurations) Operating junction temperature: -40°C to +125°C The TLV709 low-dropout (LDO) linear voltage regulator is a low quiescent current device. This device offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. The TLV709 is optimized to power microcontrollers and other low power loads for battery-powered applications. The TLV709 LDO supports a low dropout of typically 600mV at 100mA of load current. The low quiescent current (3.2μA typically) does not vary across the entire range of output load current (0mA to 150mA). The TLV709 also features an internal soft-start to lower inrush current during start-up. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault condition. The TLV709 is available in a 2.9mm × 2.8mm, 5-pin SOT-23 (DBV) package for fixed and adjustable outputs. The TLV709 is also available in a 4.5mm × 2.5mm, 3-pin SOT-89 (PK) package for fixed outputs.

Applications

• Home and building automation
• Retail automation and payment
• Grid infrastructure
• Medical applications
• Lighting applications
