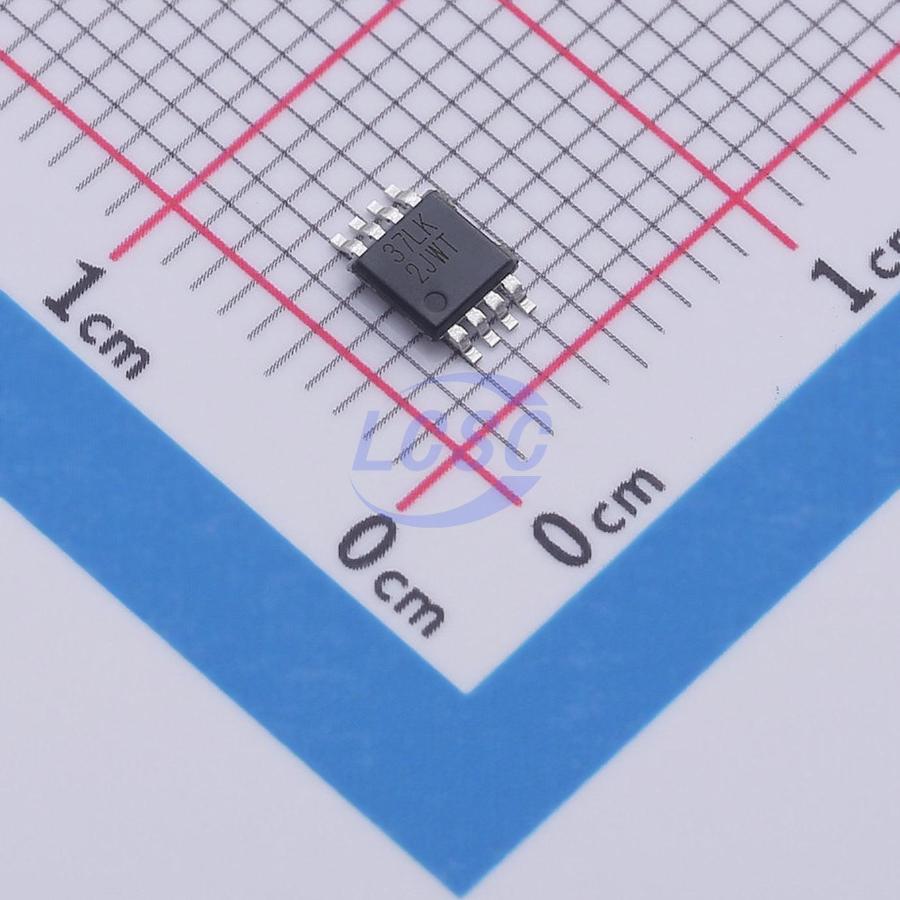

TLV9362IDGKR

The TLV936x series (TLV9361, TLV9362, and TLV9364) is a family of 40V cost-optimized operational amplifiers. These devices feature excellent DC and AC specifications, including rail-to-rail output, low offset voltage (±400 μV typ.), low temperature drift (±1.25 μV/°C typ.), and a 10.6 MHz bandwidth. The characteristics of the TLV936x, such as EMIRR filtering, high output current (±60 mA), and high slew rate (25 V/μs), make it a reliable operational amplifier suitable for high-voltage cost-sensitive applications. The TLV936x series operational amplifiers are available in standard packages and are rated for operation over a temperature range of –40°C to 125°C.

Applications

• AC and motor drive servo control modules
• AC and motor drive power stage modules
• Test and measurement equipment
• Programmable logic controllers

Key features

• Low offset voltage: ±400 μV
• Low offset voltage drift: ±1.25 μV/°C
• Low noise: 8.5nV/√Hz at 1kHz, 6nV/√Hz broadband
• High common-mode rejection: 110dB
• Low bias current: ±10pA
• Rail-to-rail output
• High bandwidth: 10.6MHz GBW, unity-gain stable
• High slew rate: 25 V/μs
• Low quiescent current: 2.6 mA per amplifier
• Wide supply voltage: ±2.25V to ±20V, 4.5V to 40V
• Robust EMIRR performance
